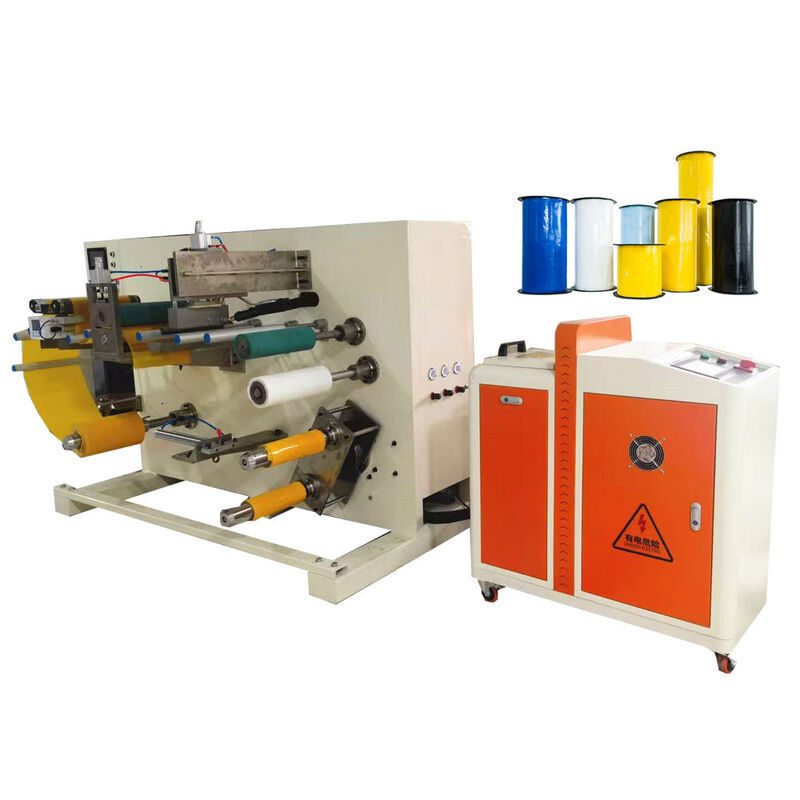

Automatic Yellow Sticky Trap Making Machine with Hot Melt Glue and PP Material for Pest Control
Basic Properties
Place of Origin:
China (mainland)
Brand Name:
KSPACK
Certification:
CE ISO
Model Number:
HG-818
Trading Properties
Minimum Order Quantity:
1
Price:
18000
Payment Terms:
T/T,D/P,D/A,Western Union
Supply Ability:
30 sets
Product Summary
Factory Direct Yellow Sticky Trap Making Machine Complete insect glue trap production line for manufacturing pest control traps with automated continuous operation. Production Process The insect sticky board production process begins with roll material being straightened by the guide rail, then ...
Product Details
Highlight:
Hot Melt Glue Yellow Sticky Trap Making Machine
,PP Material Insect Glue Trap Production Line
,PLC Touch Screen Pest Control Trap Manufacturing Equipment
Machine Name:
Insect Glue Roll Traps Making Machine
Glue Type:
Hot Melt Glue
Traps Material:
PP
Machine Type:
AUtomatic
Mahine Function:
For Insect Glue Roll Traps Making
Coating Amount:
Can Be Adjusted
Glue Coating Type:
One Side Glue Coating
Glue Melting Device:
Included
Control Panel:
PLC Touch Screen
Machine Kewords:
Blue Insect Sticky Traps Making Machine
Product Description

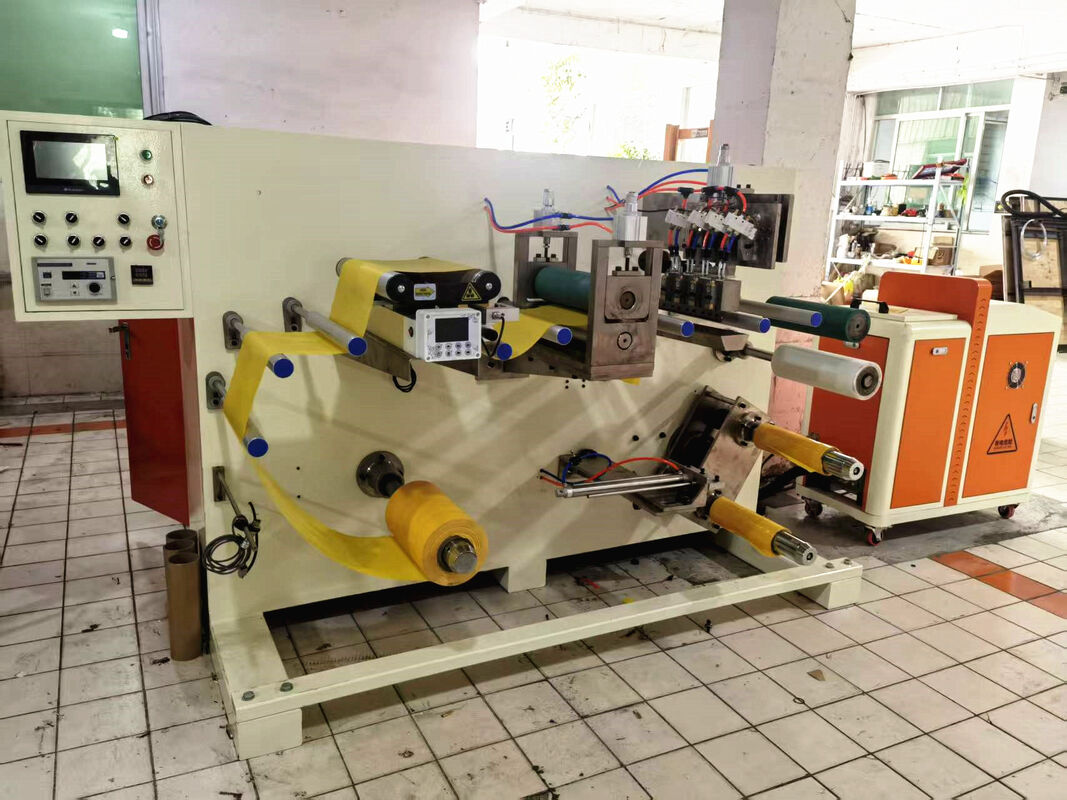

Factory Direct Yellow Sticky Trap Making Machine
Complete insect glue trap production line for manufacturing pest control traps with automated continuous operation.
Production Process
The insect sticky board production process begins with roll material being straightened by the guide rail, then entering the gluing station for adhesive application. The material is conveyed to the winding shaft via conveyor belt for winding. When the winding length reaches the preset value, the material shaft automatically switches (cutting and feeding material). The equipment operates continuously without stopping, requiring operators only to collect finished products and replace paper cores.
Technical Specifications
| Parameter | Specification |
|---|---|
| Total Power | 21.75 kW |
| Maximum Unwinding Diameter | 800 mm |
| Maximum Cardboard Width | 300 mm |
| Paper Tube Inner Diameter | 76 mm |
| Effective Maximum Glue Coating Width | 290 mm |
| Glue Coating Uniformity | ±5% |
| Production Speed | 0-75 m/min |
| Rewinding Edge Neatness | ±2 mm |
| Coating Basis Weight Range | 20-80 g/m² |
| Air Compressor | 5-7 kgf/cm² |
| Power Supply | AC380V |
Equipment Features
- Continuous operation without stopping
- Automatic material switching and feeding
- Precise glue coating control
- High production efficiency
- Suitable for yellow and blue insect sticky traps
- Minimal operator intervention required
