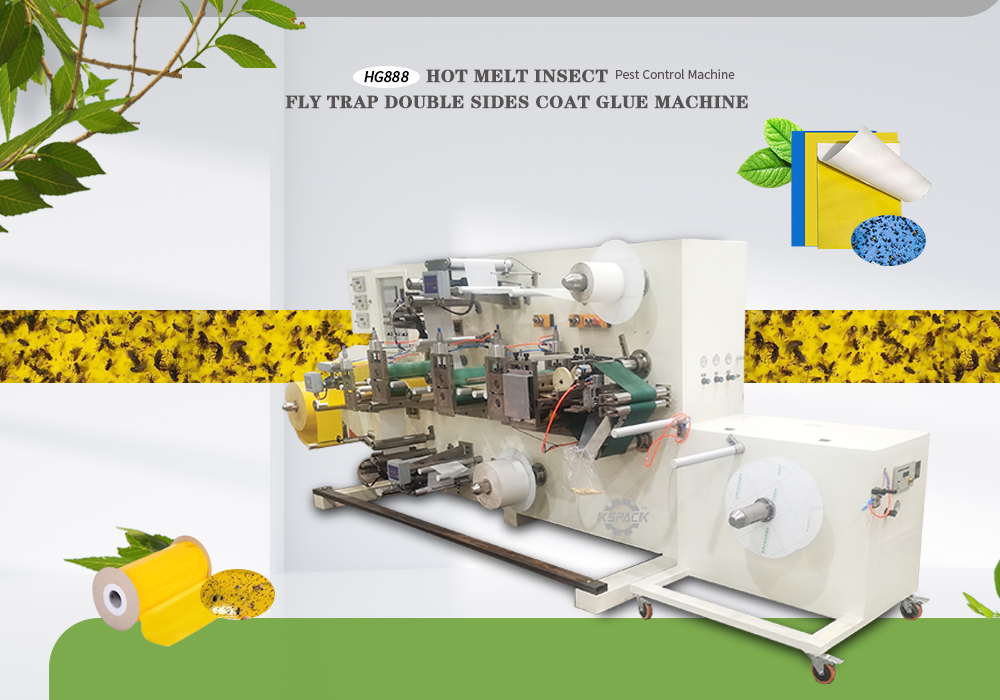

300mm 450mm 600mm Yellow Sticky Glue Trap Board Making Machine For Agriculture
Basic Properties
Place of Origin:
China
Brand Name:
Kingsun
Certification:
CE ISO
Model Number:
KS-N1
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiation
Payment Terms:
T/T, Western Union, L/C, , D/A, D/P
Supply Ability:
30 sets per month
Product Summary
300mm 450mm 600mm Yellow Sticky Glue Trap Board Making Machine For Agriculture Introduction of Glue Trap Board Making Machine The glue trap board making machine is a special equipment for the production of sticky insect board. Adhesive application, punching, and slitting can be done on this device ...
Product Details
Highlight:
yellow sticky glue trap board machine
,agricultural rat glue trap maker
,300mm 600mm glue trap machine
Glue Type:
Double Side
Function:
Glue, Conbined ,cutting,counting
Work Speed:
20000 Pcs/hour
Total Power:
18.5 KW
PLC:
Mitsubishi Brand
Servo Motor:
Panasonic Brand
Air Pressure Source:
5-7kgf/cm²
Feature:
Eco-Friendly
Pest Control Type:
Traps
After-Sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support
Voltage:
220/380v
Product Description
300mm 450mm 600mm Yellow Sticky Glue Trap Board Making Machine For Agriculture
Introduction of Glue Trap Board Making Machine
The glue trap board making machine is a special equipment for the production of sticky insect board. Adhesive application, punching, and slitting can be done on this device at once. The device is easy to operate, convenient, and is a high-speed, efficient and stable equipment.
Technical Parameters
| Basic Function | glue+combined+cutting+counting |
|---|---|
| Compound Function | slitting+punching+rewind+creasing |
| Max Coil Width | 300mm or special custom |
| Max Glue Width | 290mm or special custom |
| Max Coil Diameter | 800mm |
| Coil Inside Diameter | 76mm |
Work Principle
Through the transition wheel of the machine in turn, install one roll of substrate and two rolls of release paper on the material roll of the machine, let the main drive rubber wheel reach the cutter.
Two sets of glue guns apply glue on the release paper or silicone oil surface of the release film at the same time. The base material is laminated, and the cutter cuts it into single sheets according to the set length, and the finished product is punched through the punching device.
Factory Show
