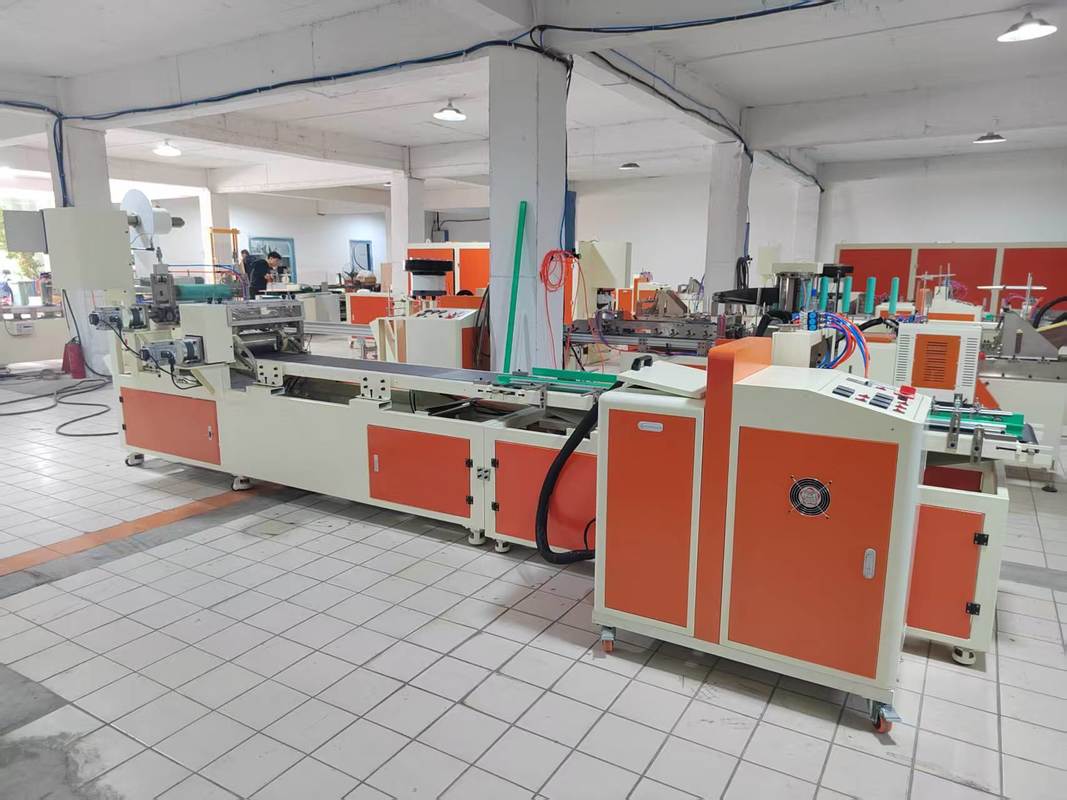

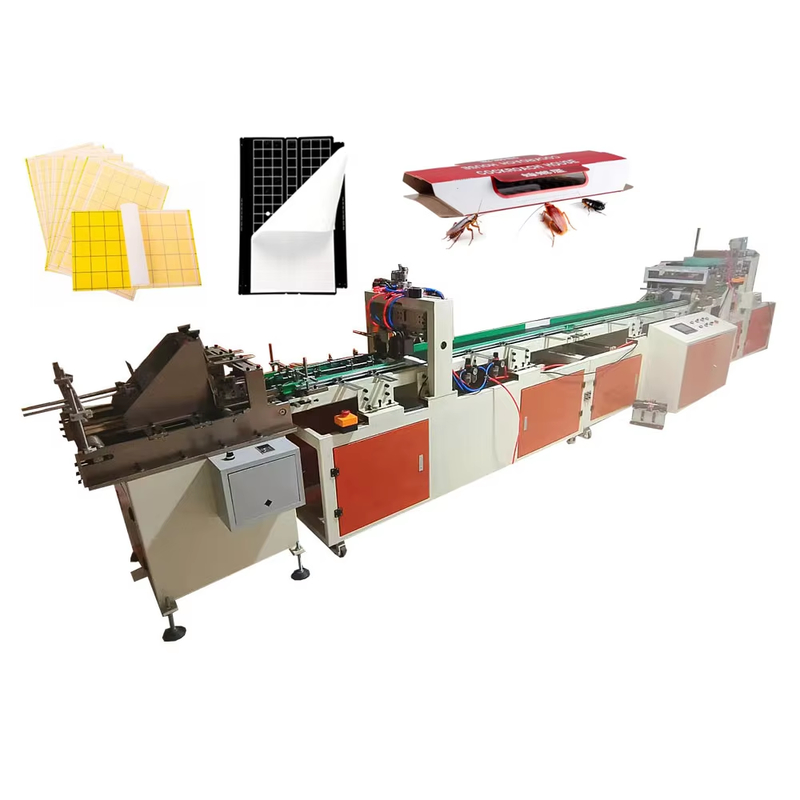

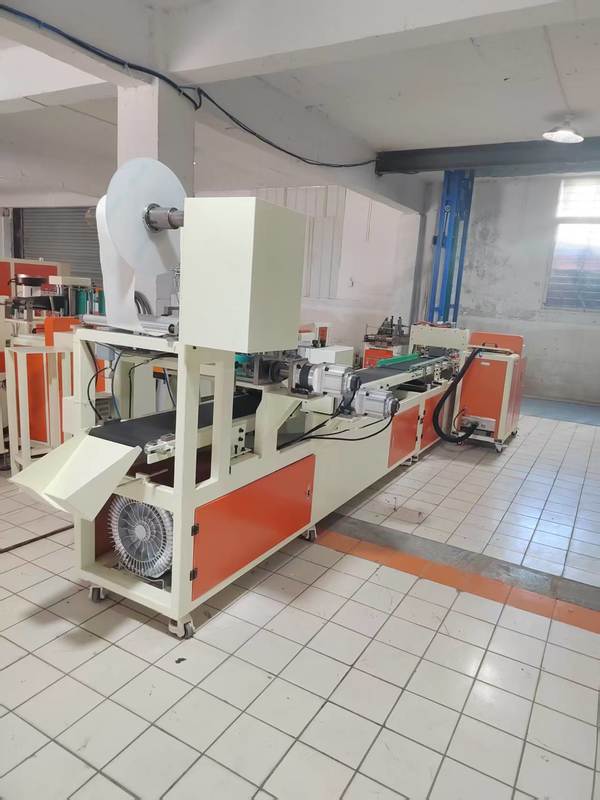

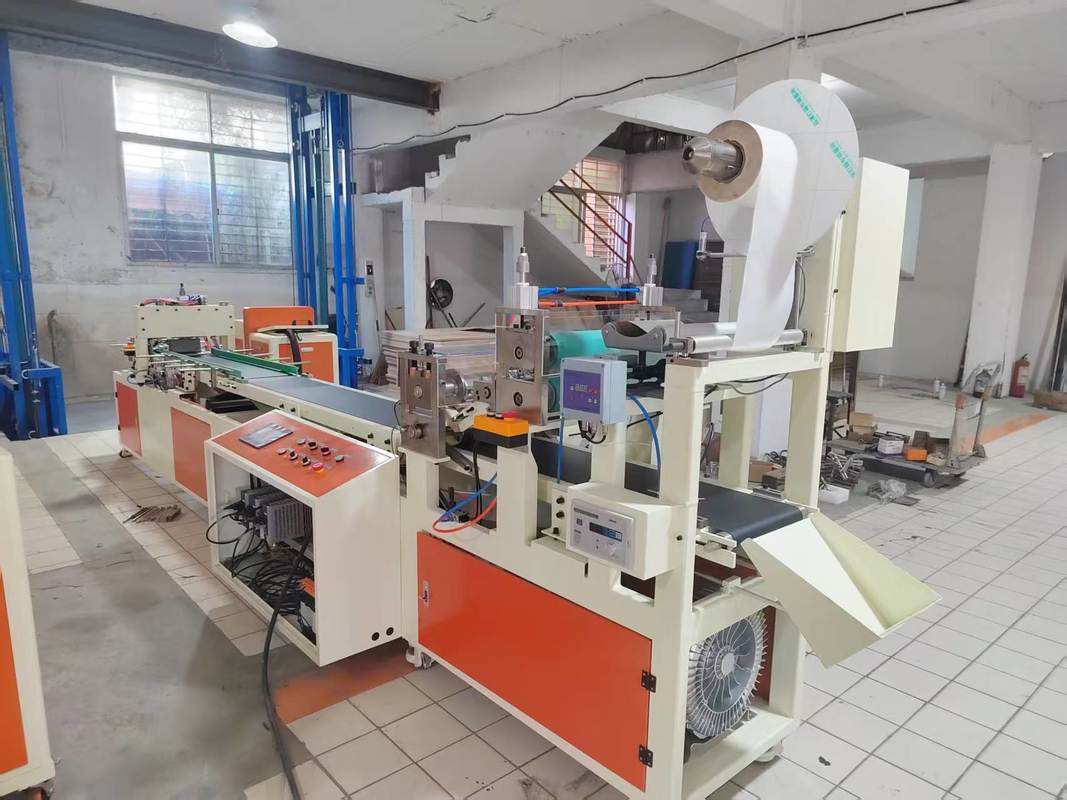

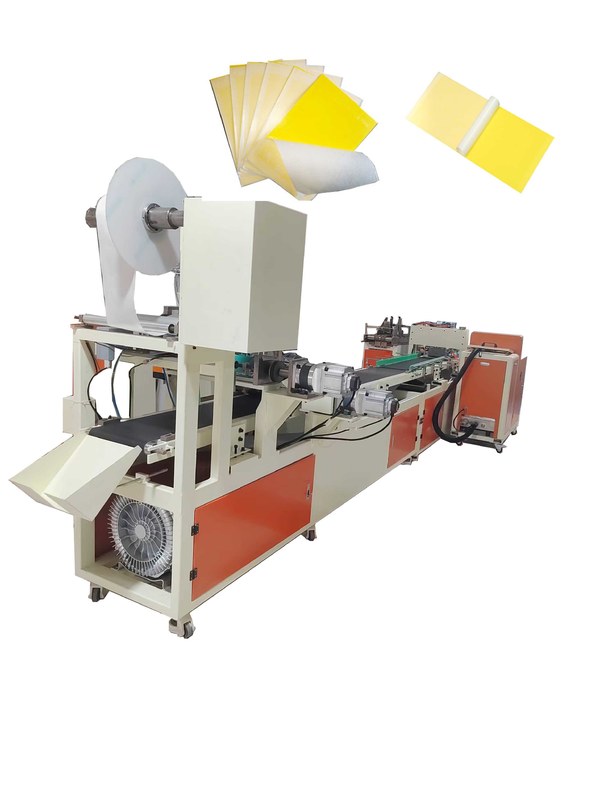

Full Automatic Machine for Producing Insect Glue Trap Pad Cockroach Traps and Release Paper Insect Glue Board Making Machine
Basic Properties
Place of Origin:
China
Brand Name:
KSPACK
Certification:
CE
Model Number:
HG888
Trading Properties
Minimum Order Quantity:
1set
Price:
USD27000
Payment Terms:
L/C,T/T,Western Union,
Supply Ability:
15sets/month
Product Summary
Full Automatic Machine for Producing Insect Glue Trap Pad Cockroach Traps and Release Paper Insect Glue Board Making Machine Full Automatic Machine for Producing Insect Glue Trap Pad Cockroach Traps and Release Paper Insect Glue Board Making Machine Key Features The feeding part can automatic or ...
Product Details
Highlight:
full automatic insect glue trap machine
,cockroach trap making machine
,rat glue trap board machine
Product Name:
Insect Cockroach Flies Hot Melt Glue Traps Machine
Basic Funcation:
Glue,combined,coating,cutting
Compound Function:
Coating,release Paper,cutting
Material:
Glue+paper
Glue Tank:
45kg
Product Description
Full Automatic Machine for Producing Insect Glue Trap Pad Cockroach Traps and Release Paper Insect Glue Board Making Machine
Full Automatic Machine for Producing Insect Glue Trap Pad Cockroach Traps and Release Paper Insect Glue Board Making Machine
Key Features
- The feeding part can automatic or manual feeding. Unit can remove when use the manual feeding style.
- The machine process: auto feeding base paper (sheet style) - auto coating - auto lamination the silicon paper (automatic cut the silicon paper to appropriate size) - finish (there have the collect box in last of the machine)
- Hotmelt machine (45kg): put the glue in the melt machine, automatic melting, then across to glue hose sending to the glue gun coating the glue to the paper
- Silicon paper (roller style), after cut to need size sending to the adsorb laminating device, then if the photo electricity switch response the base paper come, the stepper motor will take the silicon laminator with the base paper
- The max coating size: 330mm max pass size of board 350mm
- Match with the HG845 style hot melt machine the capacity is 45kg
- The machine can adjust the glue coating weight, and the glue coat the width
- The machine is PLC control, can show the capacity of products and the speed of per hour on the touch screen
- At the end of machine there will be an extra movable conveyor of 1.5mtr so that the operator is away from the silicon roll
Technical Specifications
| Model | Belt width | Bottom paper width | Release paper width | Max put glue width |
|---|---|---|---|---|
| 300 | 300 mm | 250 mm | 250 mm | 230 mm |
| 400 | 400 mm | 350 mm | 350 mm | 330 mm |
| 500 | 500 mm | 450 mm | 450 mm | 430 mm |
| 600 | 600 mm | 550 mm | 550 mm | 530 mm |
We also can custom-made production as client requirement.
