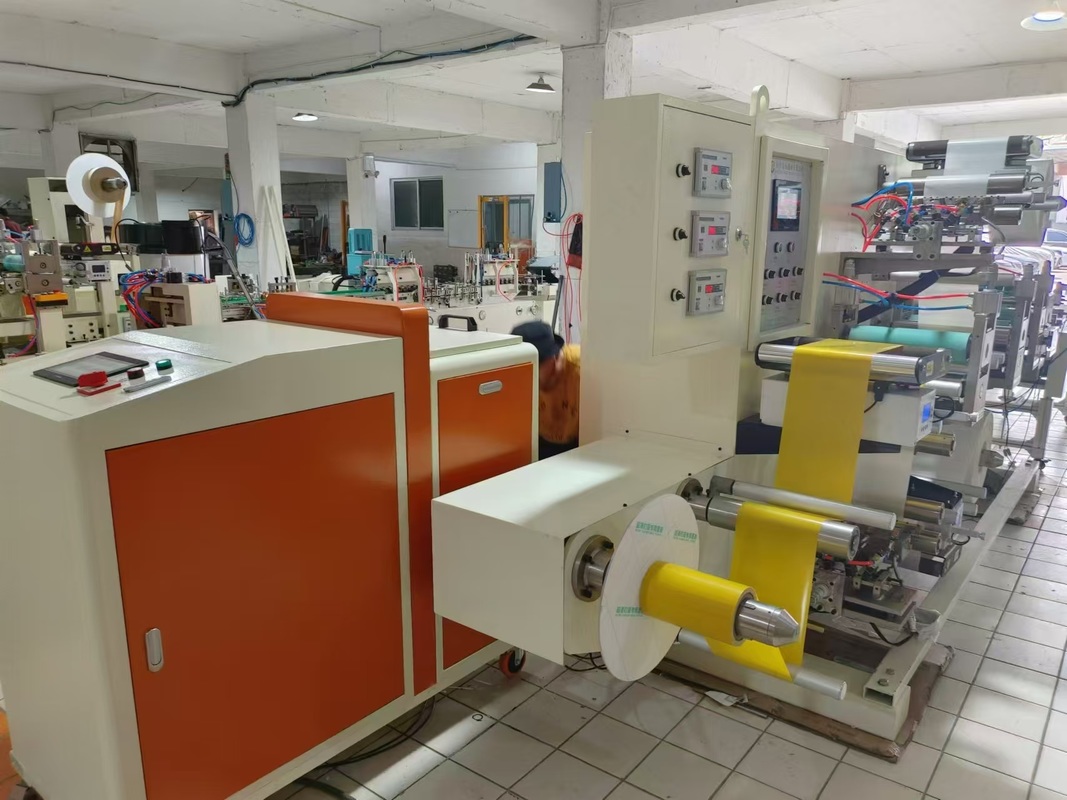

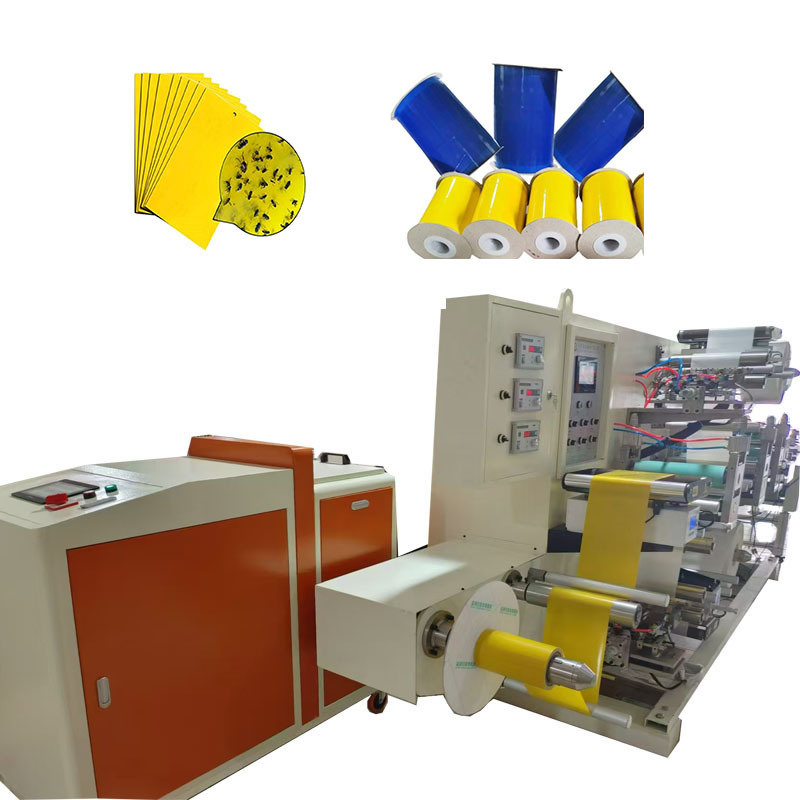

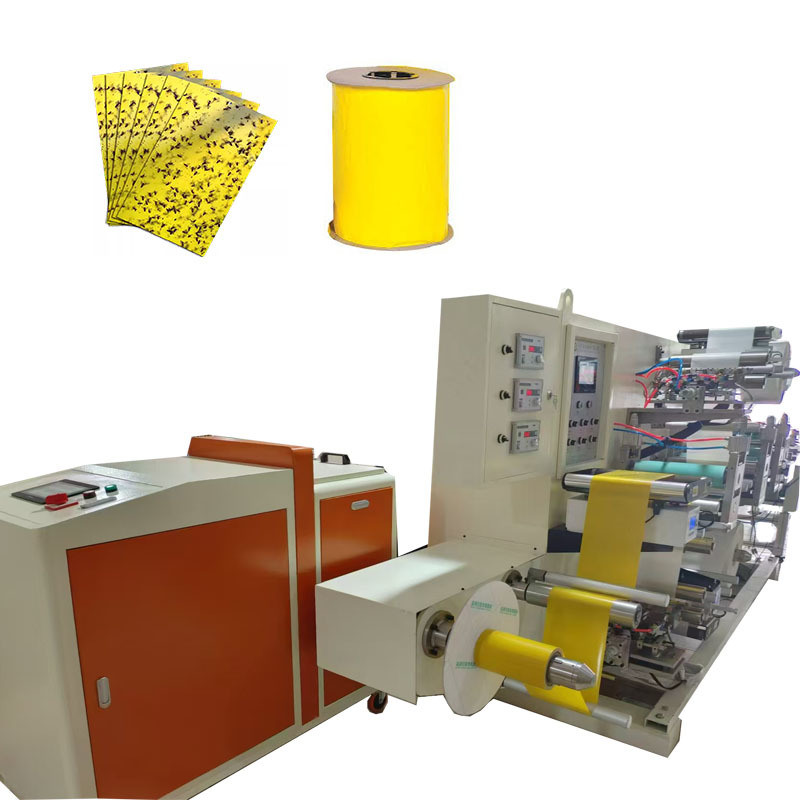

Hot Melt Glue Adhesive Coating Machine Mouse Rat Rodents Traps Board Making Machine
Basic Properties
Place of Origin:
China
Brand Name:
KSPACK
Certification:
CE
Model Number:
HG888
Trading Properties
Minimum Order Quantity:
1set
Price:
USD27000
Payment Terms:
L/C,T/T,Western Union,
Supply Ability:
15sets/month
Product Summary
Hot Melt Glue Adhesive Coating Machine Mouse Rat Rodents Traps Board Making Machine Product Description New technology flying insect traps machine Basic function (4 pcs): Glue + Combined + Cutting + Counting Compound function (4 pcs): Slitting + Punching + Rewind + Creasing Double side glue and ...
Product Details
Highlight:
hot melt glue adhesive machine
,mouse trap board making machine
,rodent glue trap coating machine
Product Name:
Agriculture Insect Glue Traps Yellow Sticky Machine
Basic Funcation:
Glue,combined,coating,cutting
Compound Function:
Slitting +Punching +Rewind +Creasing
Material:
Glue+PP Paper
Glue Tank:
80kg
Product Description
Hot Melt Glue Adhesive Coating Machine Mouse Rat Rodents Traps Board Making Machine
Product Description

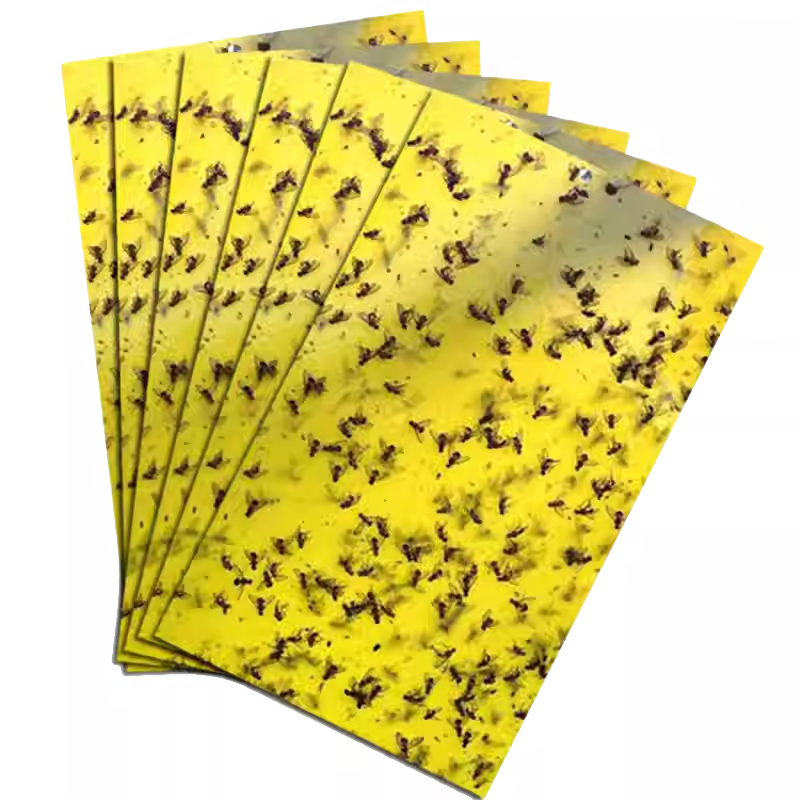

New technology flying insect traps machine
- Basic function (4 pcs): Glue + Combined + Cutting + Counting
- Compound function (4 pcs): Slitting + Punching + Rewind + Creasing
- Double side glue and stick release paper
| Max paper width | 300 mm |
| Max glue width | 290 mm |
| Speed (no punch holes) | 20000 pcs/hour |
| Speed (with punch holes) | 10000 pcs/hour |
| Speed (rewind coil function) | 3000 m/hour |
Working Principle
Through the transition wheel of the machine in turn, install one roll of substrate and two rolls of release paper on the material roll of the machine, let the main drive rubber wheel reaches the cutter.
Two sets of glue guns apply glue on the release paper or silicone oil surface of the release film at the same time. The base material is laminated, and the cutter cuts it into single sheets according to the set length, and the finished product is punched through the punching device.
