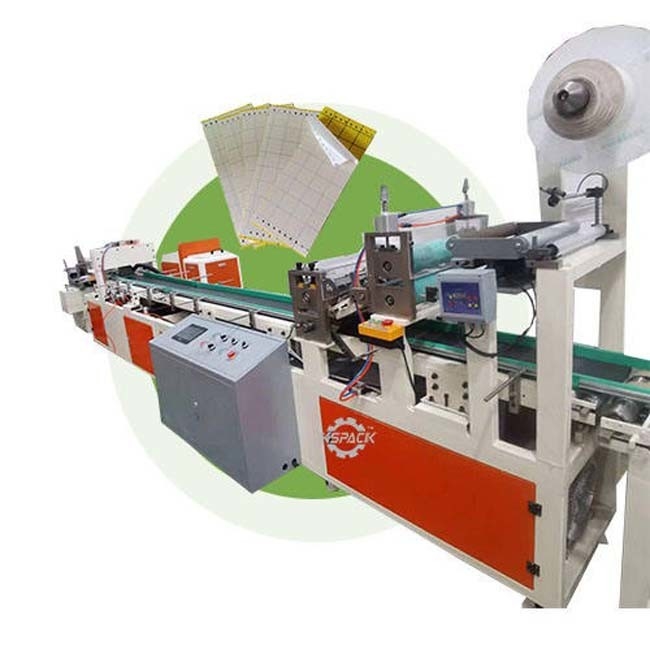

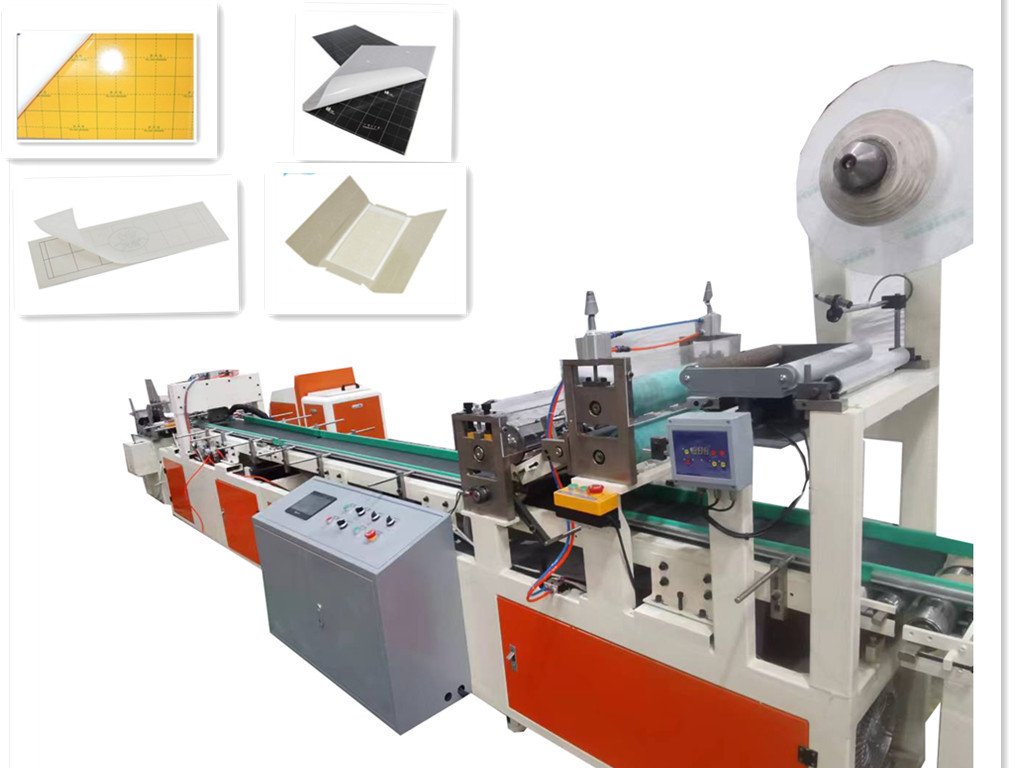

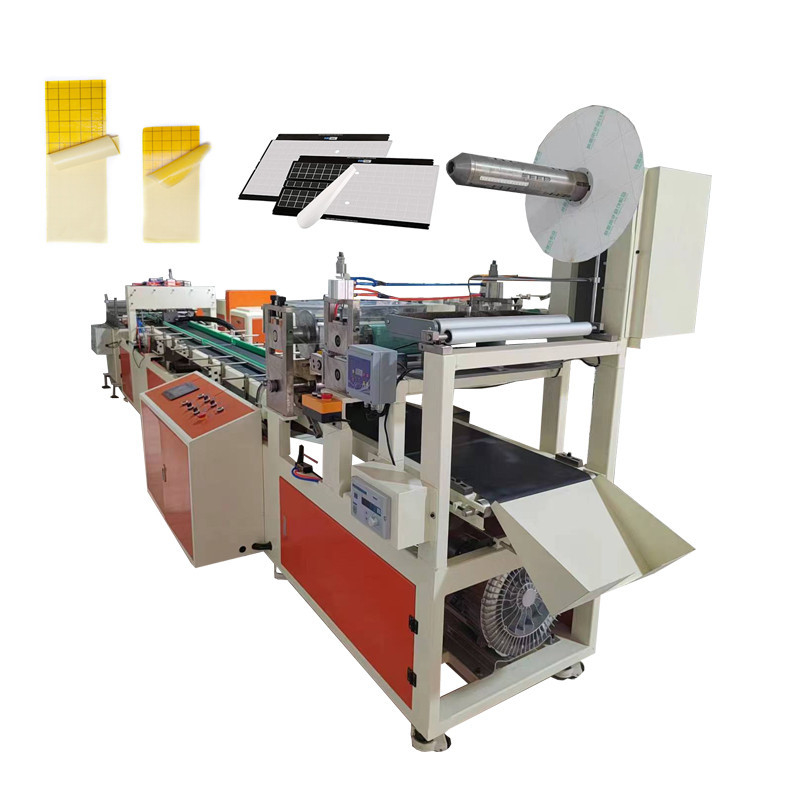

Pest Control Flies Insect Rat Mouse Cockroach Glue Traps Board With Release Paper Making Equipment
Basic Properties
Place of Origin:
Hebei China
Brand Name:
KSPACK
Certification:
CE
Model Number:
ks848
Trading Properties
Minimum Order Quantity:
1set
Price:
USD18000~USD32500
Payment Terms:
L/C, D/A, D/P, T/T, Western Union,
Supply Ability:
5sets/month
Product Summary
Specification Product Name: Full automatic flies insect rat mouse glue traps board with release paper making machine Function: 1. Automatic feed raw material 2. Automatic put glue in trap 3. Automatic paste release paper 4. Automatic collect the finished products Automatic paper feeder size: 300,350...
Product Details
Highlight:
insect glue traps board making equipment
,rat glue traps board making equipment
Product Name:
Hot Melt Glue Traps Board Machine With Release Paper Funcation
Coat Glue Quantity:
Can Be Adjusted
Machine Name:
Sticky Mouse Glue Traps Machine
Machine Width:
200-400mm
Belt:
Taiwan
Roller Diameter:
80mm
Feature:
Easy To Operate
Bearings:
NSK
Glue Tank Temperature:
0-200℃
Feed Paper:
Manual And Automatic
Plc:
Mitsubishi Brand
Application:
Pest Control
Power Source:
Electric
Product Description
Specification
Product description
Specification:
1)The feeding part can automatic or manual feeding .unit can remove when use the manual feeding style .
2)The machine process : auto feeding base paper( sheet style) –auto coating—auto lamination the silicon paper automatic cut the silicon paper to appropriate size )-finish ( there have the collect box in last of the machine)
2)The machine process : auto feeding base paper( sheet style) –auto coating—auto lamination the silicon paper automatic cut the silicon paper to appropriate size )-finish ( there have the collect box in last of the machine)
3) hotmelt machine (45kg): put the glue in the melt machine ,automatic melting ,then across to glue hose sending to the glue gun coating the glue to the paper
4)silicon paper ( roller style ),after cut to need size sending to the adsorb laminating device ,then if the photo electricity
switch response the base paper come ,the stepper motor will take the silicon laminator with the base paper.
6) the max coating size :530mm max pass size of board 550mm
7)match with the HG845 style hot melt machine the capacity is 45kg
8)the machine can adjust the glue coating weight ,and the glue coat the width
9)the machine is plc control ,can show the capacity of products and the speed of per hour. On the touch screen
10) At the end of machine there will be an extra movable conveyor of 1.5mtr so that the operator is away from the silicon roll.
4)silicon paper ( roller style ),after cut to need size sending to the adsorb laminating device ,then if the photo electricity
switch response the base paper come ,the stepper motor will take the silicon laminator with the base paper.
6) the max coating size :530mm max pass size of board 550mm
7)match with the HG845 style hot melt machine the capacity is 45kg
8)the machine can adjust the glue coating weight ,and the glue coat the width
9)the machine is plc control ,can show the capacity of products and the speed of per hour. On the touch screen
10) At the end of machine there will be an extra movable conveyor of 1.5mtr so that the operator is away from the silicon roll.
