Double Sided Glue And Release Paper Application Insect Glue Trap Making Machine
Product Details

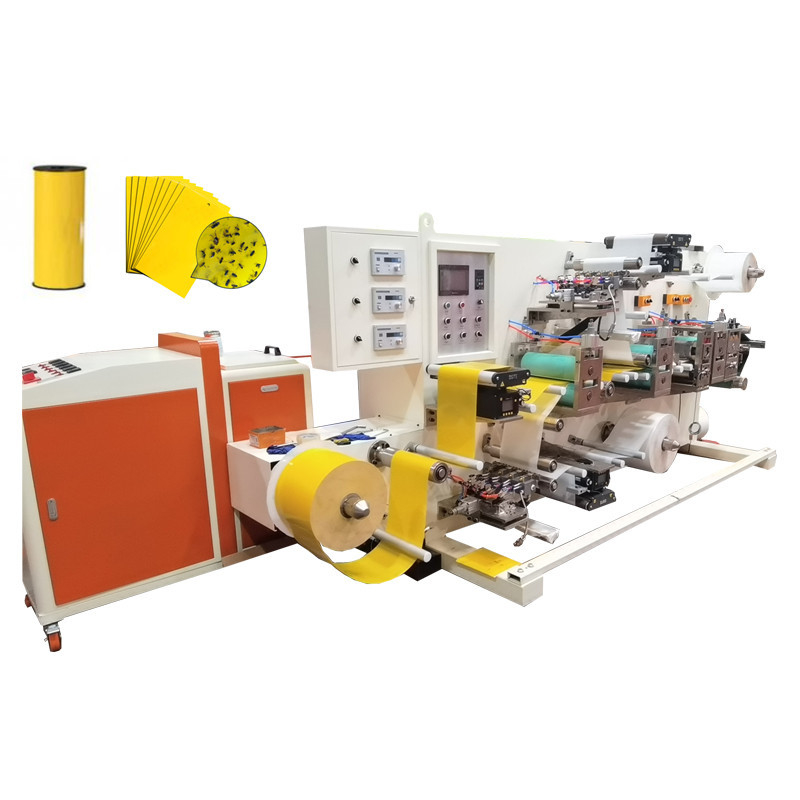

Release Paper Glue Trap Making Machine
,Double Sided Glue Trap Making Machine
,Insect Glue Trap Making Machine
yellow sticky insect glue trap machine hot melt glue fly control board machine
New technology flying insect traps machine
- Basic function (4 pcs ) :Glue + Combined +Cutting+Counting
- Compound function(4 pcs ) :Slitting +Punching +Rewind +Creasing
- Double side glue and stick release paper
- Max paper width : 300 mm
- Max glue width : 290 mm
- Speed : 20000 pcs / hour ( no use punch holes )
-
Speed : 10000 pcs / hour ( use punch holes function)
Speed : 3000 m / hour ( use rewind coil function)

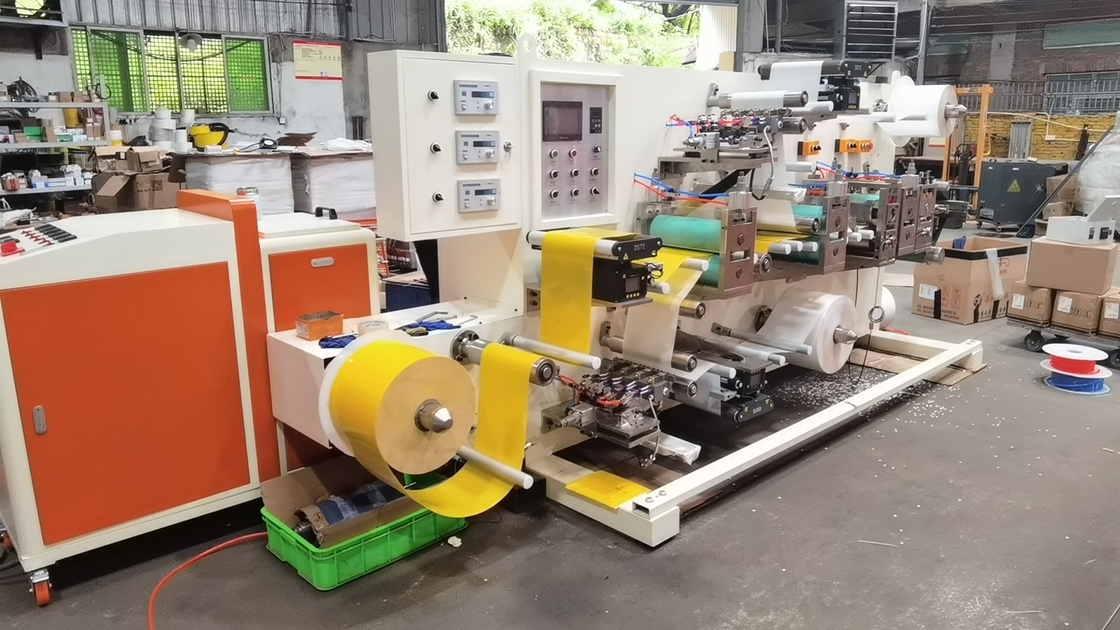

Our company's sticky insect board machine is a special equipment for the production of sticky insect board. Adhesive, punching, slitting can be done on this device at once. The device is easy to operate, convenient, is a high-speed, efficient and stable equipment.
The working principle
Through the transition wheel of the machine in turn,Install one roll of substrate and two rolls of release paper on the material roll of the machine, let the the main drive rubber wheel reaches the cutter.
Two sets of glue guns apply glue on the release paper or silicone oil surface of the release film at the same time.
And the base material is laminated, and the cutter cuts it into single sheets according to the set length, and the finished product is punched through the punching device.
-
