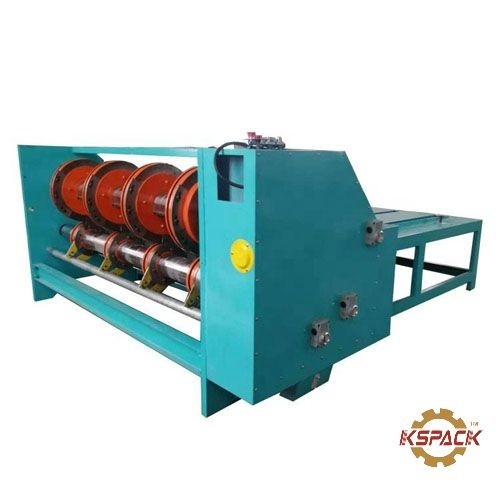

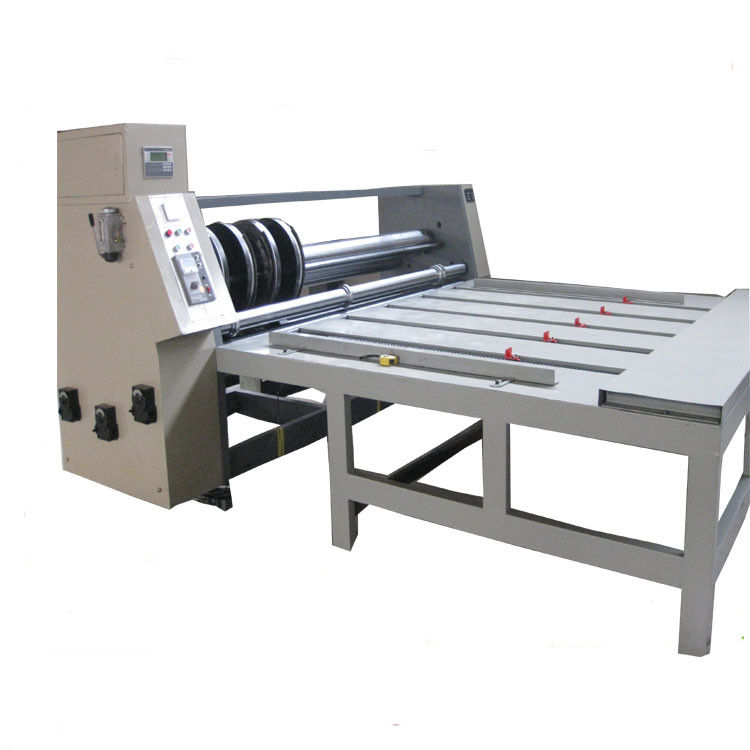

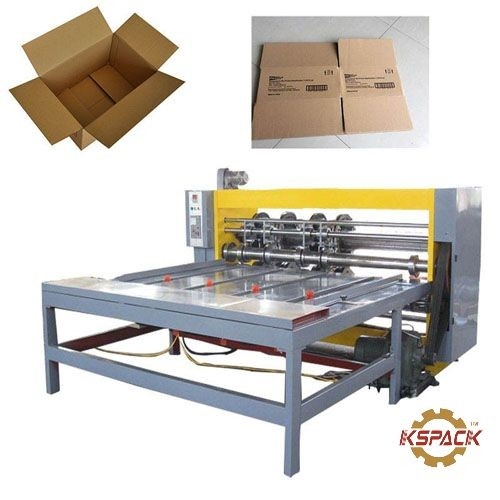

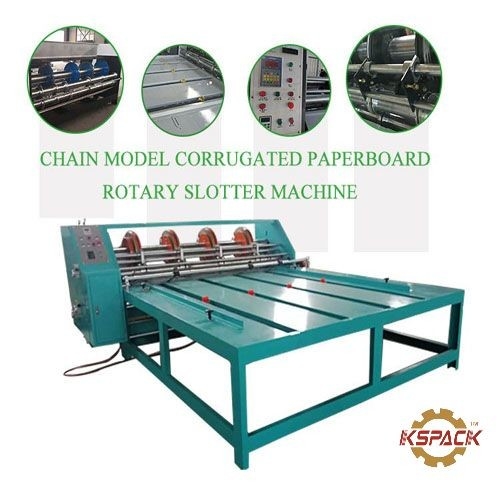

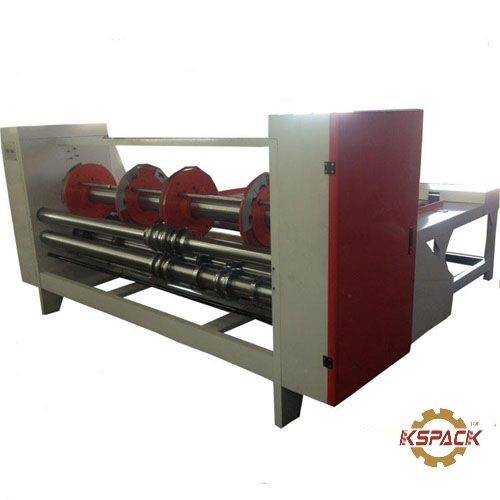

Chain Feeder Rotary Slotting Creasing Cutting Carton Box Making Machinery
Product Details
Chain Feeder Carton Box Making Machinery
,Chain Feeder Rotary Slotting Creasing Cutting
Use and Characteristics:
This series corrugated paperboard separating paper rolling line cutting corner opening slot machine, is a comprehensive production equipment which integrate several process such as cutting corner, rolling line and slicing side, the main characteristic is feeding single paperboard by hand, general flexural paperboard is applicable too.
Phase Electrically:
Slotting tool apron can be turned 360 degree positive and reverse, circularly adjusted, adopt motor micro-adjusting equipment, convenient to operate, accurate adjusted size, locking reliable and slotting accuracy.
Taiwan showdown brake motors,coded pulse monitor, sensitive and
accurate, microcomputer show, memory is memory and automatic zero adjustment phase (choose) function.
Slotted synchronized adjustments on the line and save time. Lubricating system adopt the type of spraying self-lubricate.
Technological Parameter
| Model | FYQ -900 | FYQ -1200 | FYQ -1450 | FYQ -A1650 |
| Diameter of roller | 300MM | 400MM | 480mm | 530MM |
| The max speed | 60PCS | 60PCS | 60pcs/min | 60pcs |
| The max feeding size | 900X(2200-2800) | 1200X(2200-2800) | 1400x(2200-2800) | 1650X(2200-2800) |
| Slot Min feeding size | 230X600MM | 330X600MM | 350X600mm | 380X600MM |
| The effective thickness | 3.5.7ply(2-12mm) | 3.5.7ply(2-12mm) | 3.5.7ply(2-12mm) | 3.5.7ply(2-12mm) |
| The max depth of slot | 250 | 314 | 370 | 416 |
-
