Multi Rewinder Insect Roll Glue Traps Machine Glue Trap Board Yellow Sticky Trap Making Machine
Product Details
Yellow Sticky Trap Making Machine
,Insect Roll Glue Traps Machine
,Insect Sticky Traps Making Machine
Automatic pest control yellow sticky trap insect roll traps making machine
1.Insect roll trap making machine brief introduction
3.New design multi rewinder insect roll glue traps machine glue trap board yellow sticky trap making machine main introduction
The single-sided glue-coated winding equipment mainly produces various adhesive tapes. The equipment consists of unwinding device, correction device, gluing device, and winding device
produce process: The raw material of the coil is installed on the inflatable shaft of the unwinding device, across the correct device control the material feed position. The gluing device applies glue on the surface of the material, as last have rewinder device make out the roll
4.New design multi rewinder insect roll glue traps machine glue trap board yellow sticky trap making machine specification
1) Sticky insect tape host, 40kg melting glue machine
3. The unique advantages and characteristics of the product:
1) The glue machine uses a large-flow gear pump, and the glue output is large
2) The glue is applied evenly and smoothly, and the speed of glue application is fast
3) Electromagnetic brake winding tension control
4) Inflatable shaft receiving roller, independent electromagnetic brake, independent operation, high efficiency
5) Automatically record meters, stop automatically after reaching the set length, and change rolls
6) Low price, high cost performance
7) Simple operation, low maintenance cost
5)What buyer need to prepare for running this machine
| Item | Detailed information |
| Raw materials prepare |
(a) Insect glue (b) Release paper (c) PP roll |
| Power |
Before we engineer come , you can get the power supply ready in your country . The machine voltage is 220V 3 Phase 60 HZ |
| Air compressor | Prepare air compressor ( above 1.5 KW ) |

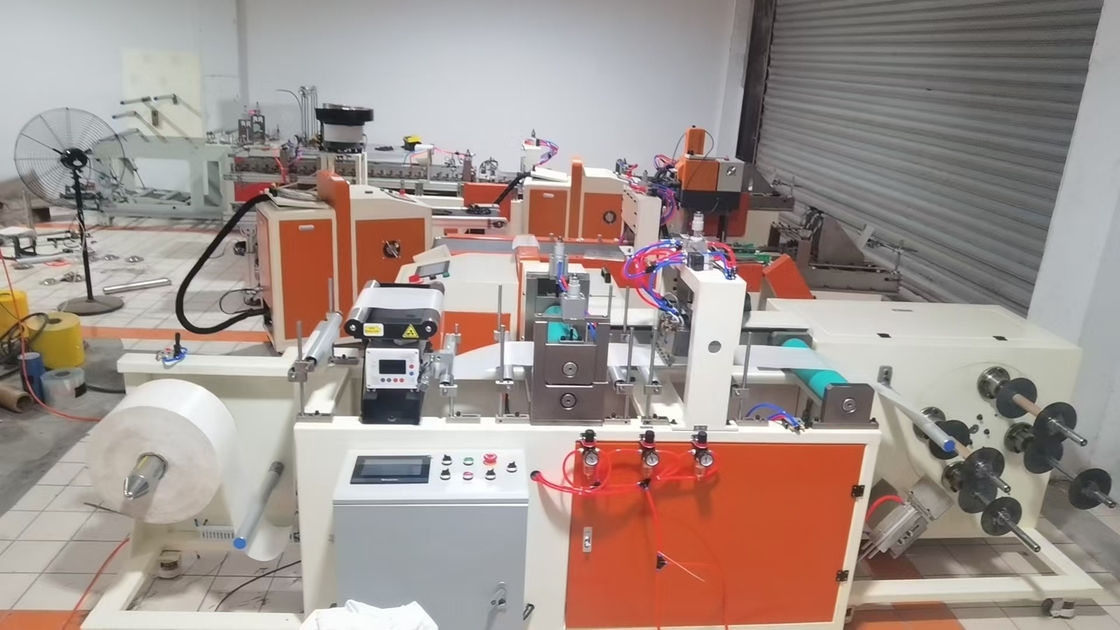

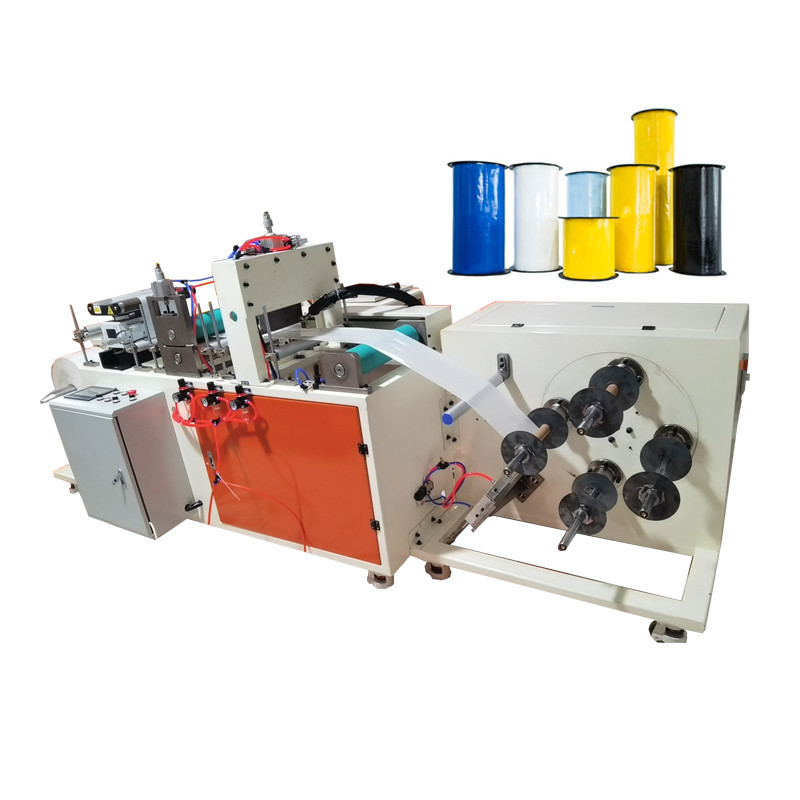

5. Insect glue roll traps making machine and its finished products
-
