Dual Sided Sticky Trap Making Machine Flying Insects Glue Trap Board Production Line Pest Control Glue Trap Machine
Basic Properties
Place of Origin:
China(mainland)
Brand Name:
KS Pack
Certification:
CE , ISO
Model Number:
Model 300
Trading Properties
Minimum Order Quantity:
1Set
Price:
28500USD
Payment Terms:
L/C, D/A, D/P, T/T, Western Union,
Supply Ability:
30sets
Product Summary
Dual Sided Sticky Trap Making Machine Flying Insects Glue Trap Board Production Line Pest Control Glue Trap Machine 1. Working principle One roll of base material and two rolls of release paper are respectively installed on the material roll of the machine, pass through the transition wheel of the ...
Product Details
Highlight:
Dual Sided Sticky Trap Making Machine
,Pest Control Glue Trap Machine
Product Description
Dual Sided Sticky Trap Making Machine Flying Insects Glue Trap Board Production Line Pest Control Glue Trap Machine
1. Working principle
One roll of base material and two rolls of release paper are respectively installed on the material roll of
the machine, pass through the transition wheel of the machine in turn, and the main drive rubber wheel reaches the cutter. Two
sets of reverse-drawing glue guns apply glue on the release paper or the silicone oil surface of the release film at the same
time, and at the same time fit the substrate, the cutter will cut it into single sheets according to the set length, and then
punch through the punching device Finish the finished product.
the machine, pass through the transition wheel of the machine in turn, and the main drive rubber wheel reaches the cutter. Two
sets of reverse-drawing glue guns apply glue on the release paper or the silicone oil surface of the release film at the same
time, and at the same time fit the substrate, the cutter will cut it into single sheets according to the set length, and then
punch through the punching device Finish the finished product.
2. Overview The sticky insect board machine manufactured by our company is a special equipment for producing sticky insect board. Glue compounding, slitting, punching, and counting can be done all at once on this equipment. This equipment is easy and convenient to operate, it is a high-speed, efficient and stable equipment.
3. Insect glue trap machine structure
| Feeding part | When do card insect glue traps with double side glue coating . Need put three 3 rolls as raw material . One PP roll and two release paper roll
When do roll insect glue traps , put one roll is ok . PP roll , then coating glue on PP roll , then rewinder
|
| Laminating part |
When do card insect glue traps , coating glue on release paper , then laminating together
When do roll insect glue traps , coating glue on PP yellow paper roll
The glue amount can be adjusted . Glue coating width control by copper plate , length by computer
|
| Receiving table | Automatically receive the finished insect glue traps , with auto counter function |
| Rewinder part | Automatically rewind the PP traps for roll type glue traps making |

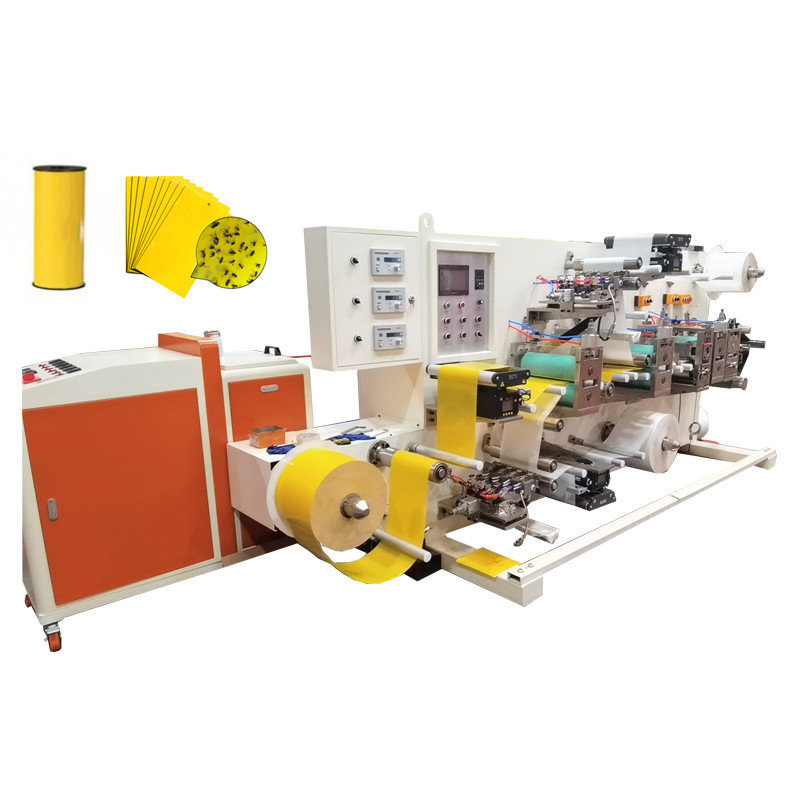

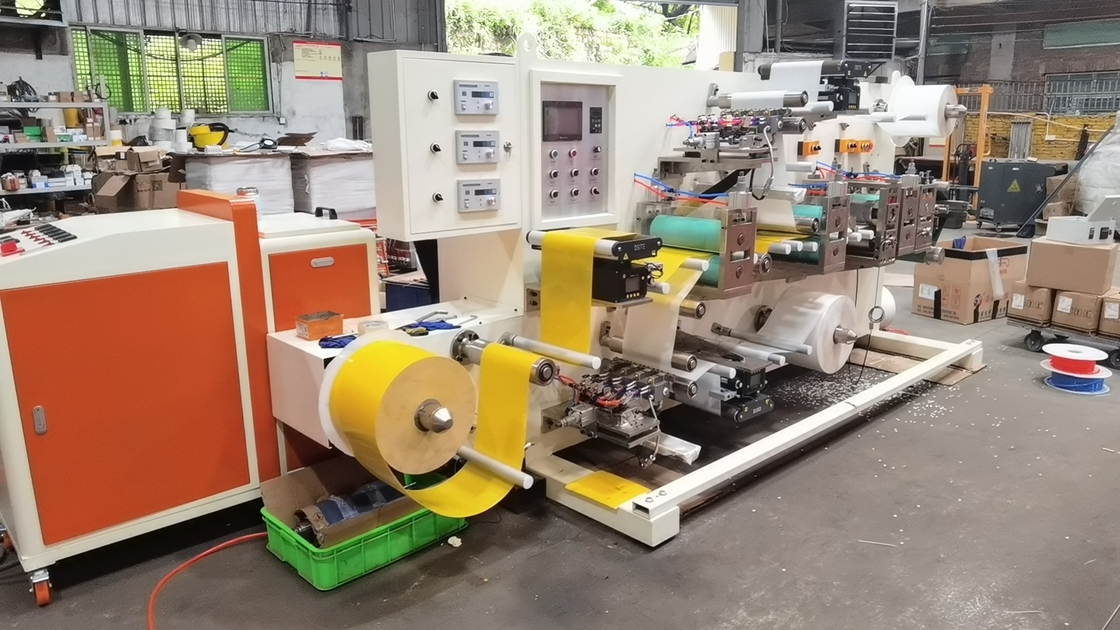

4. Insect glue trap machine picture
