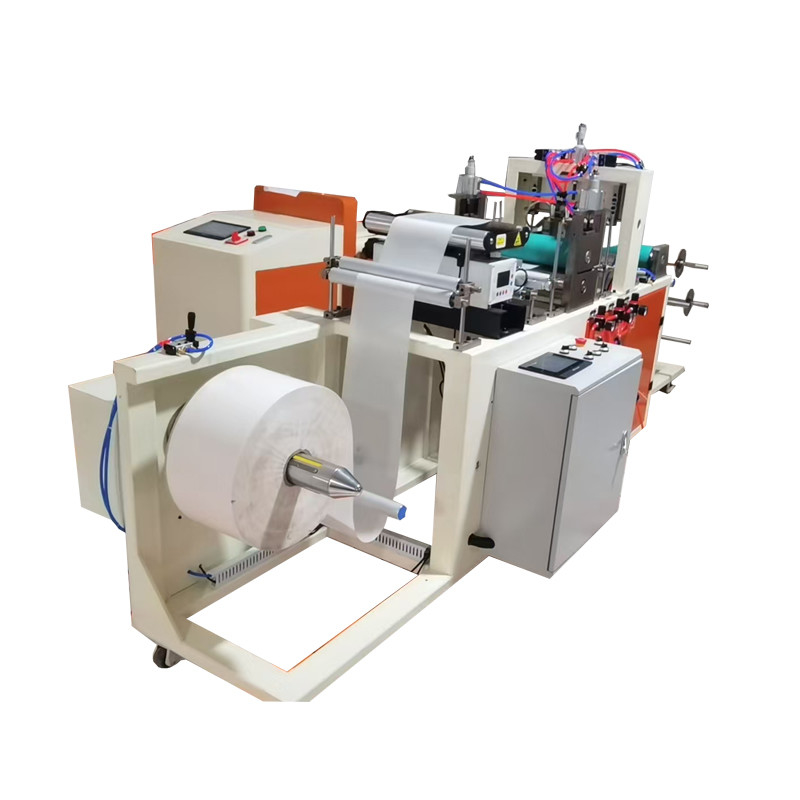

Yellow Sticky Trap Board Making Machine With Automatic Feeder

Basic Properties
Place of Origin: China
Brand Name: Kingsun
Model Number: H
Trading Properties
Minimum Order Quantity: 1set
Price: 3000-25000usd
Payment Terms: L/C, T/T
Supply Ability: 50sets
Tags

mouse trap making machine

board making machine

glue coating machine
Product Summary
Technical parameter description of sticky insect tape machine 1. Technical parameters 1. Basic technical parameters: 1) Dimensions of sticky tape: 300x130x130cm 2) Melting machine capacity: 40kg 3) Glue melter size: 85x 78x 98cm 4) Maximum unwinding diameter: ¢800mm 5) Maximum unwinding width: 30cm ...

Product Details

Highlight:

Yellow Sticky Trap Board Making Machine

,

Automatic Feeder Rat Glue Trap Machine
Features: Automatic, High Efficiency
Feed Model: Automatic Model
Production Capacity: 1000-1500pcs/hour
Machine Weight: 450kg
Product Size: 5-40cm
Condition: New
Type: Rat Glue Trap Making Machine Killer Glue
Bearings: NSK
Product Description

Technical parameter description of sticky insect tape machine



1. Technical parameters

1. Basic technical parameters:

1) Dimensions of sticky tape: 300x130x130cm

2) Melting machine capacity: 40kg

3) Glue melter size: 85x 78x 98cm

4) Maximum unwinding diameter: ¢800mm

5) Maximum unwinding width: 30cm

6) Maximum glue width: 29cm

7) Inner diameter of paper core: upon request

8) Production speed: 50 m/min

9) Input: 380V, 50/60Hz

10) Adjustable speed: yes, adjustable speed table

11) Adjustable winding length: yes, counter setting

12) Gluing part of upper roll: 0.75kw motor

13) Winding part: 0.75kw motor plus magnetic powder clutch

14) Heating power: 6.6kw

15) Melting machine motor: 0.75kw

16) Material stick: Inflatable shaft

17) Deviation correction system: with ultrasonic automatic deviation correction

2. Configuration

1) Sticky insect tape host, 40kg melting glue machine

3. The unique advantages and characteristics of the product:

1) The glue machine uses a large-flow gear pump, and the glue output is large

2) The glue is applied evenly and smoothly, and the speed of glue application is fast

3) Electromagnetic brake winding tension control

4) Inflatable shaft receiving roller, independent electromagnetic brake, independent operation, high efficiency

5) Automatically record meters, stop automatically after reaching the set length, and change rolls

6) Low price, high cost performance

7) Simple operation, low maintenance cost
