Customized Fully Automatic Mouse Glue Trap Making Machine
Basic Properties
Place of Origin:
cangzhou
Brand Name:
KSPACK
Certification:
ISO ,CE
Model Number:
HG898+80kg
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
Western Union, L/C, T/T
Supply Ability:
30sets per month
Product Summary
New Design Fully Automatic Pest Control Rat Glue Trap Making Machinery Sticky Mouse Glue Traps Machine 1)Brief introduction for Sticky Mouse Glue Traps Machine full-automatic rat glue trap making folding and gluing machine is high efficient automatic production equipment for rat board glue traps . ...
Product Details
Highlight:
customized rat glue trap making machine
,customized mouse glue trap making machine
,automatic mouse glue trap making machine
Machine Function:
Sticky Mouse Glue Traps Machine
Glue Type For This Machine:
Hot Melt Glue
Glue Tank:
80kg
Glue Trap Needed:
15-25 Grams
Control System:
Automatic Control
Machine Name:
Sticky Mouse Glue Traps Machine
Final Goods:
Every Model Glue Trap Boards
Machine Type:
Auto Feeder Auto Glue Auto Edge Fold
Machine Color:
Customzied
Machine Speed:
70 -100 Pcs Er Min
Product Description
New Design Fully Automatic Pest Control Rat Glue Trap Making Machinery Sticky Mouse Glue Traps Machine
1)Brief introduction for Sticky Mouse Glue Traps Machine
full-automatic rat glue trap making folding and gluing machine is high efficient automatic production equipment for rat board glue traps .
Rat glue trap making machine includes : automatic paper feeding part , automatic folding edge part, automatic gluing part , automatic material spraying part, automatic spacer put part , automatic fold final products part .multi function finished one time .This model Rat glue trap making machine can move the folding machine section separately and connect the automatic paper feeder with the gluing section, can produce other products such as sticky board, magic blanket, mosquito killer lamp sticky board and fly glue catcher (semi-automatic operation, according to product requirements)
2)Structure for Sticky Mouse Glue Traps Machine
whole machine composed of eight parts: a, automatic paper feeding; b. Automatic edge folding (4-way edge); c. Automatic gluing+automatic spraying bait; d. Automatic put seperate button (spacer); e. Automatic folder final products belt; f. 5KG capacity hot melt machine,(this for coat glue for fold edge) four hose pipes and three sets glue coat guns; g. 40kg hot melt machine, 1 hose pipe and 1 set of glue gun,for glue glue to board h. 1set 150kg glue melting pot (for heat the glue in advance and extend continuous production time ,it can direct connect with 40kg glue tank )
3)Specific for Sticky Mouse Glue Traps Machine
|
HG-909 fully auto mouse glue trap machine |
||
|
A.Machine size and weight |
Floor Space |
7mx2m |
|
Weight |
950kg |
|
|
B.Factory Facility Supply Requirements |
Machine motor |
30kw |
|
Working pressure |
AC 380v ±10% 50 Hz |
|
|
pressure/pipe diameter |
Min2-6Kg/㎡,pipe diameterφ8 |
|
|
Environmental requirements |
Clean, separate material machines, equipped with fire extinguisher facilities |
|
|
C.Device control method |
programmer |
Plc controller and 7 inch touch screen |
|
constant temperature heating |
PID control |
|
|
D. mouse board size range |
Width |
170mm-300mm |
|
Glue coating size |
130mm-260mm |
|
|
tolerance range |
±0.5mm |
|
|
E.configure |
Control system |
PLC:yonghong |
|
Touch screen: Fanyi |
||
|
Transmission ,fold |
Servo control:Hui chuan |
|
|
Auto feeder |
400w horizontal motor + frequency control (Yatai) |
|
|
F.Other |
Most machine parts use standard parts |
|
|
Need to be equipped with a air compressor more than 1.5KW |
||

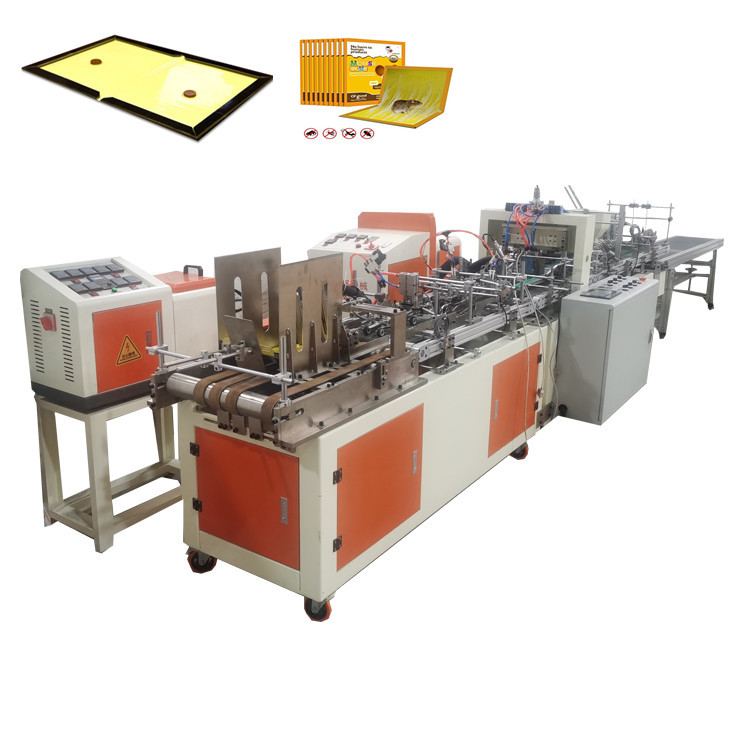

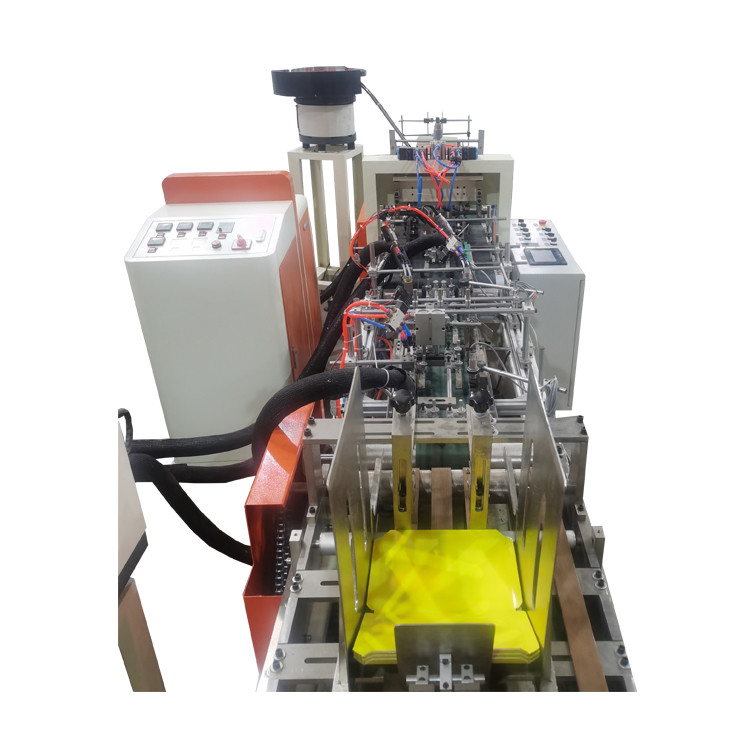

4)Specific for Sticky Mouse Glue Traps Machine picture
