New Design Multi Rewinder Insect Roll Glue Traps Machine
Product Details
rat glue trap making machine
,mouse glue trap making machine

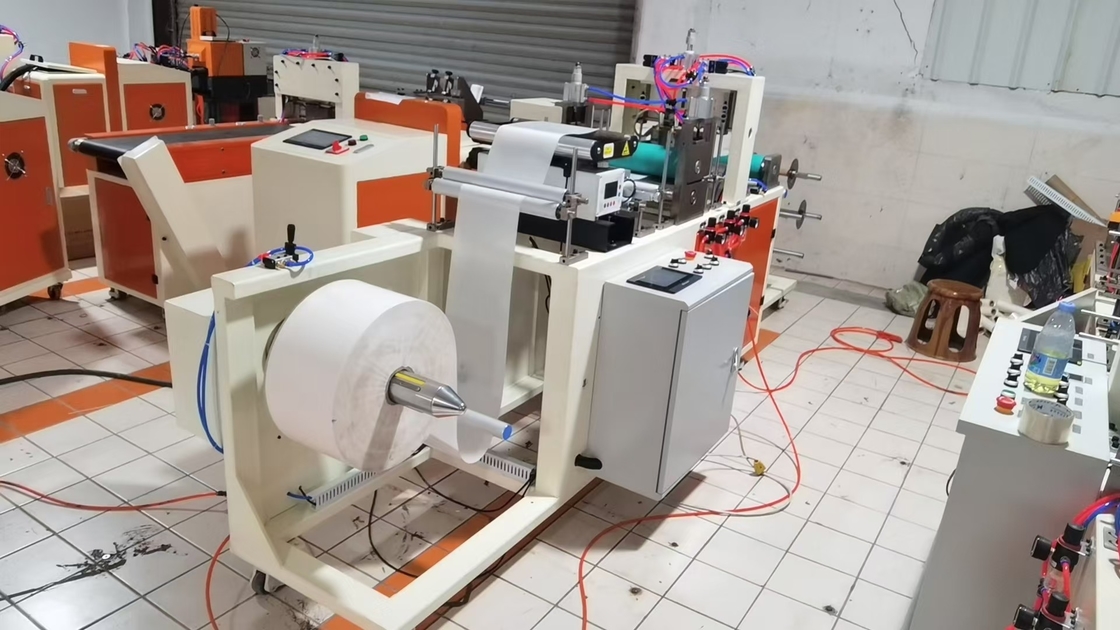

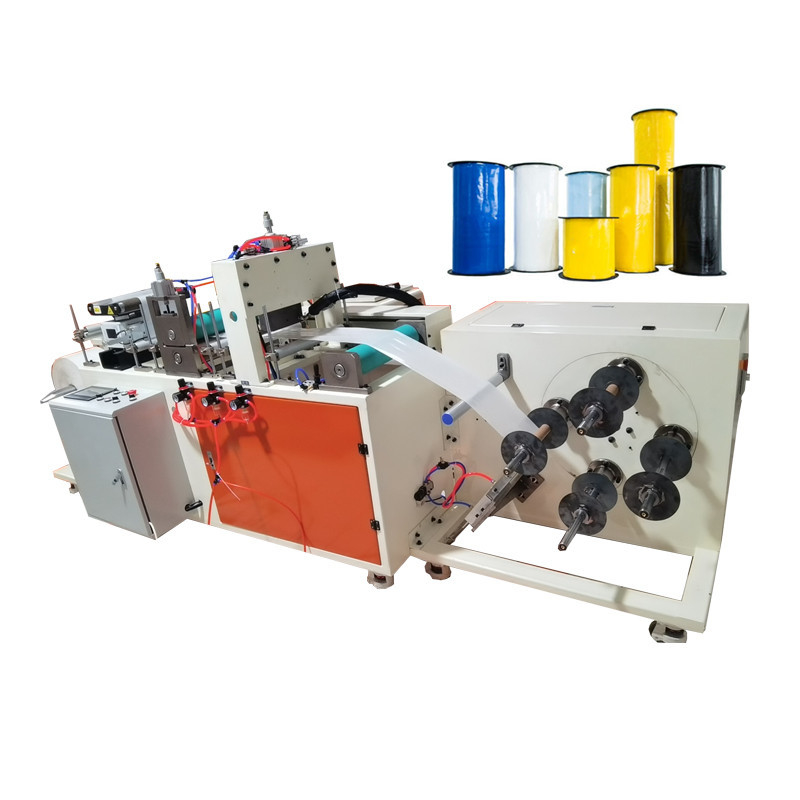

New Design Multi Rewinder Insect Roll Glue Traps Machine Glue Trap Board Yellow Sticky Trap Making Machine
1.New Design Multi Rewinder Insect Roll Glue Traps Machine Glue Trap Board Yellow Sticky Trap Making Machine brief introduction
1) Sticky insect tape host, 40kg melting glue machine
3. The unique advantages and characteristics of the product:
1) The glue machine uses a large-flow gear pump, and the glue output is large
2) The glue is applied evenly and smoothly, and the speed of glue application is fast
3) Electromagnetic brake winding tension control
4) Inflatable shaft receiving roller, independent electromagnetic brake, independent operation, high efficiency
5) Automatically record meters, stop automatically after reaching the set length, and change rolls
6) Low price, high cost performance
7) Simple operation, low maintenance cost
1. Basic technical parameters:
1) Dimensions of sticky tape: 300x130x130cm
2) Melting machine capacity: 40kg
3) Glue melter size: 85x 78x 98cm
4) Maximum unwinding diameter: ¢800mm
5) Maximum unwinding width: 30cm
6) Maximum glue width: 29cm
7) Inner diameter of paper core: upon request
8) Production speed: 50 m/min
9) Input: 380V, 50/60Hz
10) Adjustable speed: yes, adjustable speed table
11) Adjustable winding length: yes, counter setting
12) Gluing part of upper roll: 0.75kw motor
13) Winding part: 0.75kw motor plus magnetic powder clutch
14) Heating power: 6.6kw
15) Melting machine motor: 0.75kw
16) Material stick: Inflatable shaft
17) Deviation correction system: with ultrasonic automatic deviation correction
Top selling glue trap machine
used for mouse glue traps , auto feeder , auto glue , auto button putting , auto 6 edge fold , auto half fold , speed can reach 3000 pcs per hour
Cockroach glue traps making machine
4)What buyer need to prepare for running this machine
| Item | Detailed information |
| Raw materials prepare |
(a) Insect glue (b) Release paper (c) PP roll |
| Power |
Before we engineer come , you can get the power supply ready in your country The machine voltage is 220V 3 Phase 60 HZ |
| Air compressor | Prepare air compressor ( above 1.5 KW ) |
5. Insect glue roll traps making machine and its finished products
-
