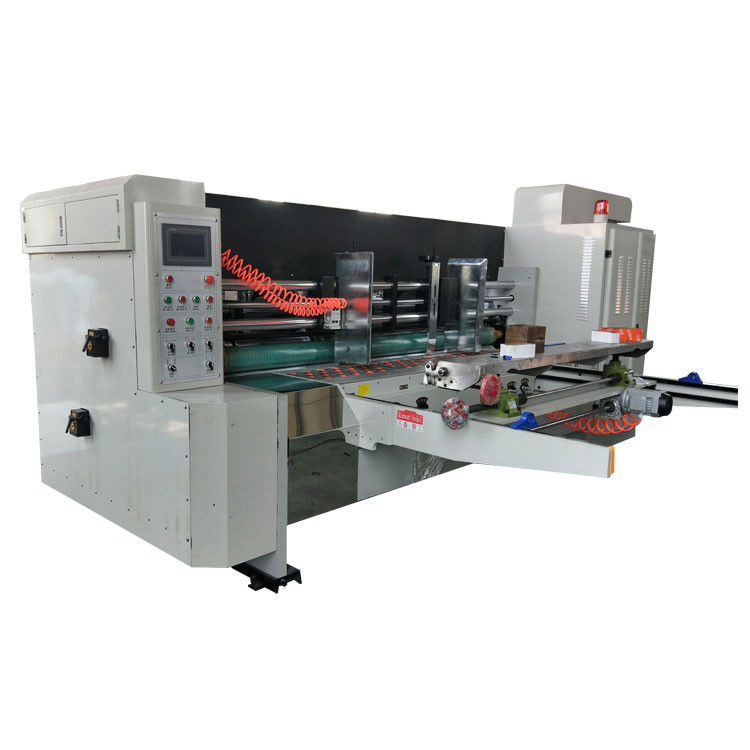

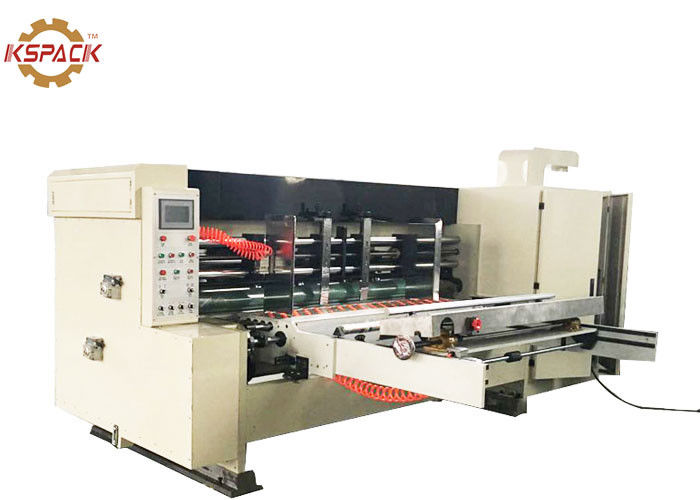

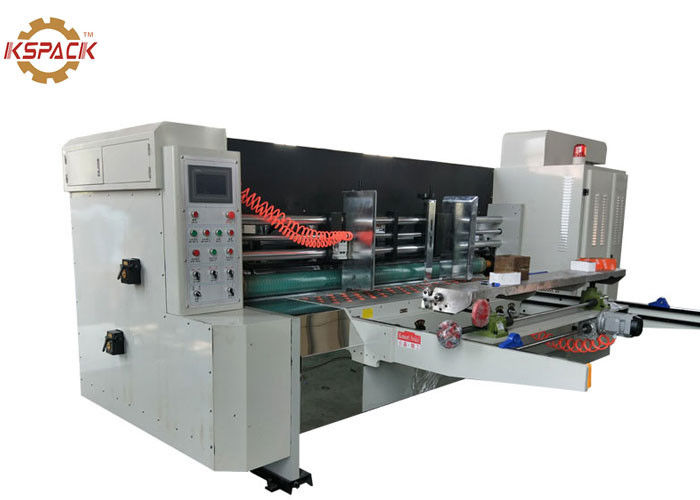

Full Automatic Rotary Slotter Machine For Corrugated Carton Pizza Box

Full Automatic High Speed Rotary Slotter Machine For Corrugated Carton Pizza Box

1.Overview

MQJ rotary die cutters offer high performance and safe cutting of various shapes and sizes of corrugated boards and packaging materials. These machines are innovative and feature state-of-the-art technology for optimum efficiency and durability, minimizing waste, and maximizing productivity.

MQJ series rotary die cutter is a new model with innovative features. It is powered by a high-performance motor for efficient, reliable operation with minimal noise and vibration. Offers a smooth and comfortable cutting process for the user.

MQJ series ensures precise, consistent cutting with automatic speed compensation, eliminating manual adjustments for error prevention and time saving.

The MQJ series features a built-in safety sensor that stops the machine in emergencies to protect users from potential injuries and accidents.

MQJ series uses imported polyurethane felt for its anvil cover. This material provides excellent wear and tear resistance, ensuring the long-term functionality of the blanket.

MQJ series has soft roller repair mechanical color for quick and easy roller repair, extending roller service life and reducing maintenance frequency, saving user time and money.

MQJ series provides vacuum systems, speeding up operations and reducing the risk of errors or inconsistencies with efficient material feeding.

Overall, the MQJ series is a high-performance rotary die cutter that offers unmatched performance and safety for a wide range of cutting applications. Its innovative features, combined with its durability and efficiency, make it the ideal choice for professionals in the packaging industry.

2.Specifications and technical parameters

3.Main Configuration

1)DIE CUTTING

1.die-cutting roll for the centrifugal casting material, wall

thickness 30mm, balance correction, hardened plating.

2.wall panels for high-quality steel, wall thickness 50mm,

large-scale processing center production.

3. soft roller automatic grinding mechanism to improve the

re-use of plastic sets, grinding 3-4 times.

4.linear speed automatic compensation to ensure that each

batch of carton die-cutting size exactly the same.

5.imports of polyurethane flexible pads, easy installation,

die cutting 12 million times.

6. mechanical roller about 40mm horizontal movement, pad wear evenly.

7.die-cutting roller cylinder-type automatic separation device to

reduce wear sets of wear.

2) Paper feed section

1.lead edge paper feed system, feeding high precision,high speed ,

paper wheel long life, can feed 10000pcs /hour ,the accuracy of

+-0.75mm.

2.the fan air volume can be adjusted to meet the requirements of the

amount of air supply.

3.the phase using microcomputer control, can be adjusted 360 degrees,

fast and accurate.

4.the front blockboard manual adjustment, side of the cardboard

computer adjustment.

5.guide paper roller with groove rubber surface, to prevent crushing

cardboard, to increase the accuracy of paper feed.

3) Computer department

1. man-machine interface, whole computer PLC precision control system, improve the protection function, high reliability control.

2.the machine adopt frequency control motor.

3.ahead and back control panel concise, easy to operate.

4.whole machine by the light, electricity, airjoint control system
