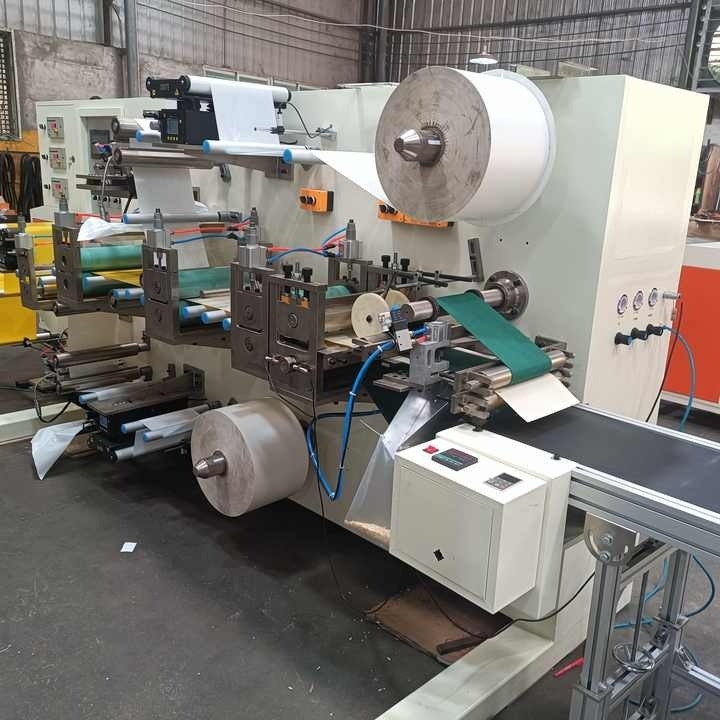

Pest Control Rat Glue Trap Making Machine With Auto Feed 2.2KW
Product Details
Pest Rat Glue Trap Making Machine
,2.2KW Rat Glue Trap Making Machine
Trap Pest Control Trap Rat Glue Trap Making Machine With Auto Feed
Yellow Sticky Trap Rat Glue Trap Making Machine With Auto Feed
1.Rat Glue Trap Making Machine Description:
The versatile hot melt glue machine is capable of producing an extensive range of sheet products, in addition to mouse and rat glue traps, fly traps, cockroach house traps, yellow sticky traps, cardboard mouse traps, and plastic mouse traps.
As a reputable supplier and manufacturer of hot melt adhesive machinery, our primary model is engineered to provide exceptional performance at a cost-effective price, making it an ideal choice for small to medium-sized enterprises.
The system can automatically feed raw materials and can be easily adjusted to accommodate different raw material sizes.
The conveyor system encompasses numerous components, each of which serves a specific function in the overall functioning of the system.
Place the glue device, which includes all necessary components.
The device button is optional.
A bait release device may also be useful to help free hooks from fish.
Also, if you have a folding device, such as a tablet or smart phone, you can use it to open the document.
2.Rat Glue Trap Making Machine Specifications:
| Glue coating machine | |||
| Item | Name | Unit | Qty |
| 1 | PT100 temperature control meter | pcs | 2 |
| 2 | Solid state relay(40A) | pcs | 4 |
| 3 | Fuse and its seat | set | 3 |
| 4 | Aviation plug(big,small) | pair | 1 for each |
| 5 | PT100 temperature sensing head | pcs | 3-4 |
| 6 | Return valve | pcs | 1 |
| 7 | Filter core(big,small) | pcs | 1 for each |
| 8 | Hose connector 45 | pcs | 4 |
| 9 | Sealing ring, gasket (including gear pump oil seal) | several | |
| 10 | Flat sealant | bottle | 1 |
| 11 | Filter | pcs | 1 |
| 12 | Polytetrahydrogen tube | meter | 1 |
| 13 | Copper sheet | pcs | 1 |
| 14 | Various types of screws | pcs | several |
| 15 | Glue gun body: (with thimble 4) | pcs | 1 |
| 16 | Gas joint | pcs | several |
| 17 | air tube | meter | 10 |
| 18 | Barometer (single , double ) | pcs | 1 for each |
| 19 | Plastic hose 1.8meters | pcs | 1 |
| 20 | Various switches | pcs | several |
| 21 | Intermediate relay(24V) | pcs | more than 4 |
| 22 | Various heating tubes | pcs | 2-3 |
| 23 | Chain (several joints ) | pcs | 1 |
| 24 | Photoelectric: ( silver , yellow) | pcs | 2 for each |
| 25 | Intermediate relay(220V) | pcs | more than 3 |
| 26 | Solenoid valve | pcs | 3 |
| 27 | Host belt | pcs | 1 |
| 28 | Hexagon wrench | set | 1 |
| 29 | Training Video CD | pcs | 2 |
| 30 | Hole punch tool | pcs | 1 |
| 31 | Reinforcement of gun seat and rubber tank filter | set | 1 for each |
| 32 | Various springs | pcs | several |
| 33 | Inverter panel | pcs | 1 |
| 34 | Square cylinder | pcs | 2 |
| 35 | Half-moon shape bearing | pcs | 1 |
| Auto feeder part | |||
| 1 | Feeder belt | pcs | 4 |
| 2 | Speed adjust meter | pcs | 1 |
| 3 | paper press wheel | pcs | 4 |
3.Rat Glue Trap Making Machine Feature:
Automatic Feeder, an advanced apparatus, caters to automatic animal feeding and productivity enhancements.
Dimensions: 92cmx83cmx111cm
Key Features: Paper feeding motor employs a 200 vertical motor, frequency converter adjusts speed, paper output stabilizes, and speed is modifiable, accommodating various fly sticker thicknesses, sticky mouse boards, roach houses, light boards, etc.
Hot Melt Glue Machine is a multi-use instrument aiding manufacturers and crafters in applying adhesive to assorted materials efficiently.
Dimensions: 96cmx48cmx109cm
Key Features: Melter motor harnesses a 750w three-phase motor, frequency converter alterations speed. 45cc gear pump, maximum glue capacity reaches 40g, heating power is 9kw, and heating duration is approximately 40 minutes.
The organization's primary production line focuses on assembling gluing machines, essential in the manufacturing process.
Dimensions: 228cmx96cmx110cm
Key Features: Main drive motor is a 750w three-phase motor with variable frequency speed control, conveyor belt operates swiftly and maintains stability, and PLC or time relay adapts various timing parameters. High precision sensor capable of sensing black or colored products simultaneously.
PLC + touch screen
Cylinder baffle (Anti- tailing device )
Function is anti tailing when applying glue.
-
