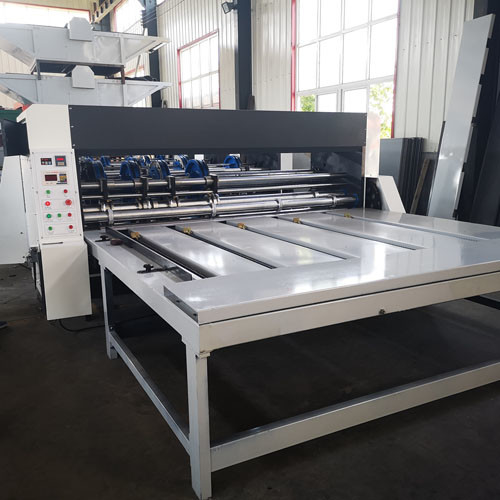

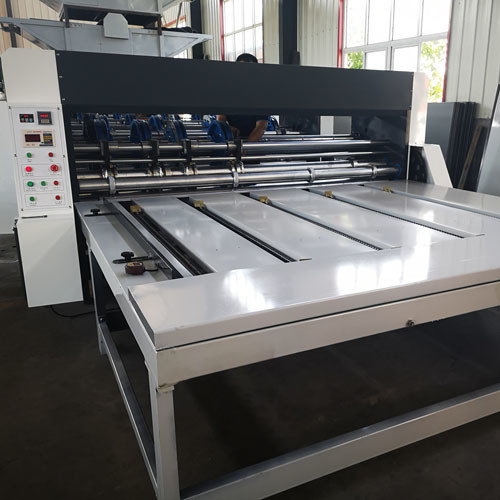

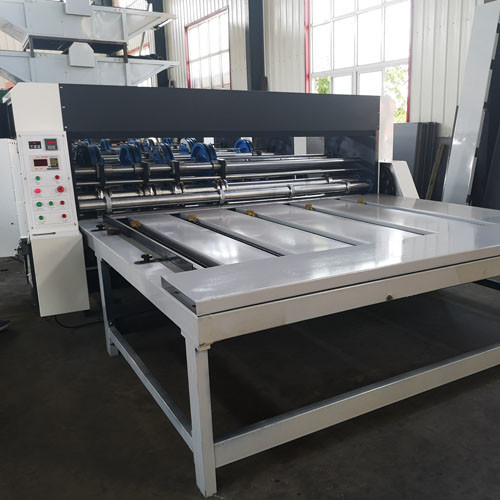

Rs4 Chain Feeding Rotary Slotter Machine Corrugated Box Packing White
1.Rotary Slotter Machine Description:
The series of all-round rotary saw blade machines is a comprehensive production equipment that integrates essential production links such as corner cutting, pressing lines, and cutting edges. While resembling similar equipment, this all-round rotary saw blade machine boasts a superior performance and a more extensive application range, making it capable of meeting the diverse needs of customers across various industries.
Advanced design concepts and precise manufacturing processes have been employed in the equipment's development, resulting in a high degree of flexibility and reliability. These qualities enable stable operation in challenging production environments, improving production efficiency and product quality.
Additionally, the all-round rotary saw blade machine includes excellent maintenance functions to ensure customers' convenience when obtaining after-sales services. In summary, the all-round rotary saw blade machine is a cost-effective production equipment that offers tremendous economic and social benefits to customers in diverse fields.
2.Rotary Slotter Machine Specifications:
| Model | YSF-S 900 | YSF-S 1200 | YSF-S1450 | YSF-S1650 |
| Diameter of roller | 300mm | 400mm | 480mm | 530mm |
| The max speed | 60pcs/min | 60pcs/min | 60pcs/min | 60pcs/min |
| The max feeding size | 900X(2200-2800) | 1200X(2200-2800) | 1400x(2200-2800) | 1650X(2200-2800) |
| Slot Min feeding size | 230X600mm | 330X600mm | 350X600mm | 380X600mm |
| The effective thickness | 3.5.7ply(2-12mm) | 3.5.7ply(2-12mm) | 3.5.7ply(2-12mm) | 3.5.7ply(2-12mm) |
| The max depth of slot | 250 | 314 | 370 | 416 |
3.Rotary Slotter Machine Feature Advantage:
The slotting tool apron can be rotated 360 degrees in both directions, with circular adjustments and motor micro-adjusting capabilities for convenient and accurate sizing.
The locking mechanism is reliable and the slotting accuracy is high. Equipped with Taiwan showdown brake motors and coded pulse monitors, with microcomputer display and memory and automatic zero adjustment phase functions.
The slotted adjustments are synchronized, saving time. The lubricating system is of the self-spray type for efficient self-lubrication.
4.KSPACK Group:
Hebei Jinguang Packing Machine Co.,Ltd
Cangzhou Kingsun IMP and EXP Co.,Ltd
Dongguang BaiYing Carton Machinery Co.,Ltd
5.Our Company
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery. Our products are widely used in various industries such as printing, packaging, food, beverage, pharmaceutical, cosmetic and so on. We have a strong R&D team and a strict quality control system to ensure the performance and reliability of our products. We also offer after-sales service and technical support to our customers.
Our products are sold all over the world, you can rest assured.
