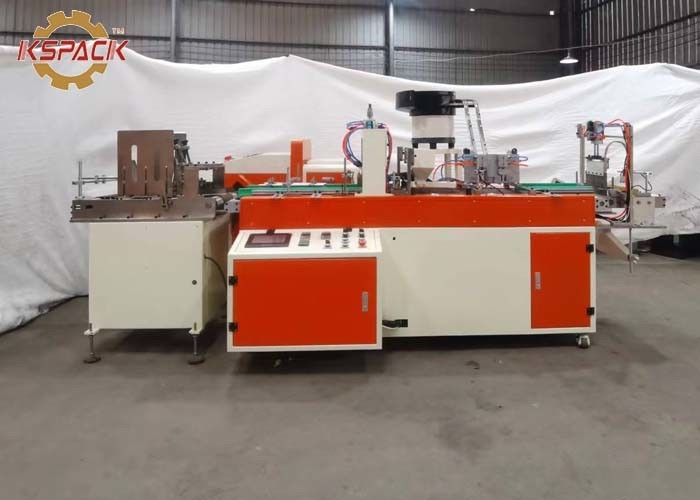

Automatic Feeder Rat Glue Trap Making Machine Ordinary Single Row

Automatic Feeder Rat Glue Trap Making Machine Ordinary Single Row

1,Rat Glue Trap Making Machine Application

Fly Trap Board, Mouse Trap Board, Plastic Mouse Trap Board,Cockroach Trap Boad.

2,Rat Glue Trap Making Machine Description:

• Configuration:

Gluing main production line, 40kg capacity melter, automatic paper feeding, automatic gluing, three-scraper gun seat assembly, 1.8 meters glue feeding hose. When producing mouse glue board, it needs to be folded by hand; when producing cockroach house and other products, it needs to be manually pasted with release paper; it can also be used to produce sticky mouse magic carpet and plastic tray mouse board;

Optional 150kg auxiliary melting tank can also be used to reduce the waiting time for adding glue (Not including)

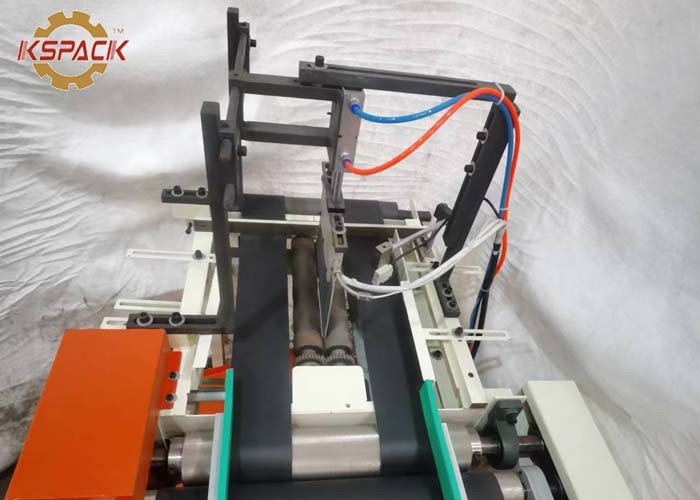

• Automatic Feeder:

Size: 92cmx83cmx111cm

Features: The paper feeding motor uses a 200 vertical motor, the frequency converter adjusts the speed, the paper output is stable, and the speed is adjustable, suitable for fly stickers of various thicknesses, sticky mouse boards, cockroach houses, light boards, etc.

• Hot melt glue machine:

Size: 96cmx48cmx109cm

Features: The melter motor uses a 750w three-phase motor, and the frequency converter adjusts the speed. 45cc gear pump, the maximum amount of glue can reach 40g, the heating power is 9kw, and the heating speed is about 40 minutes.

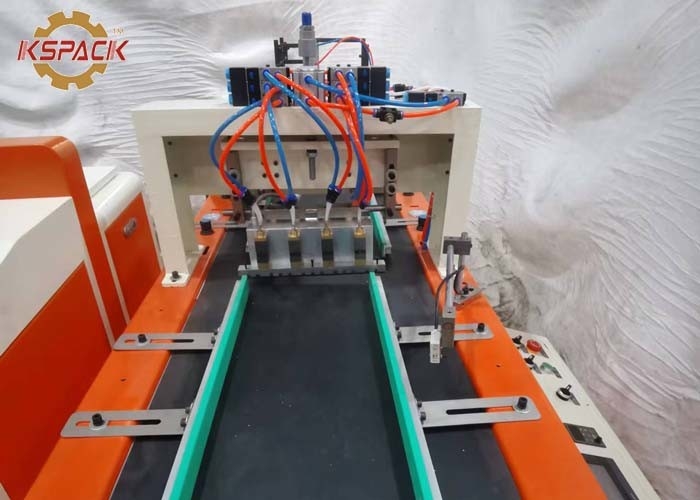

• Main production line for gluing

Size: 228cmx96cmx110cm

Features: The main drive motor is 750w three-phase motor with variable frequency speed regulation, the conveyor belt runs fast and at a stable speed, and PLC or time relay adjusts various time parameters. High-precision sensor that can sense black or other color products at the same time.

3,Rat Glue Trap Making Machine Specifications:
