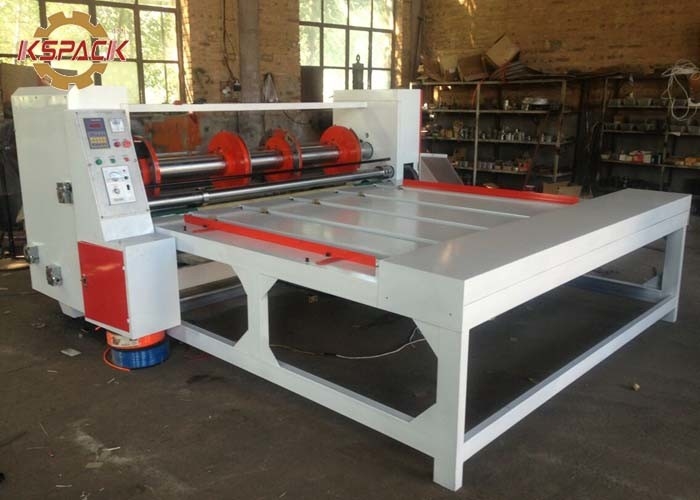

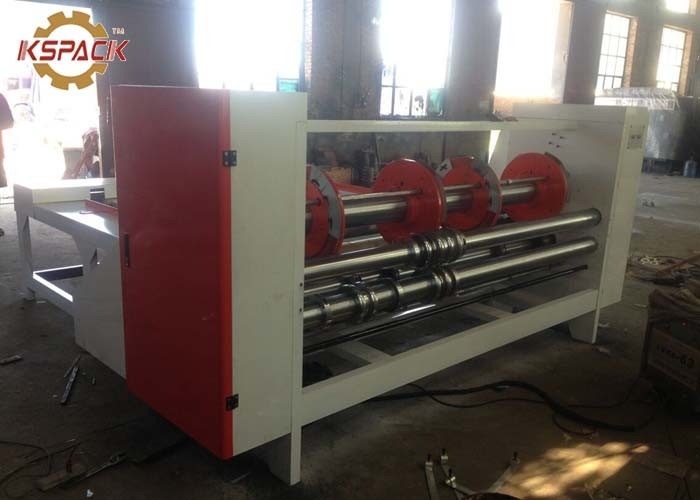

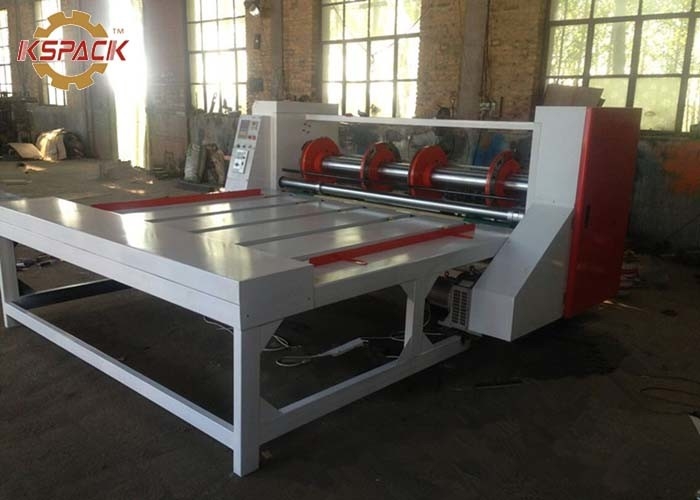

KS - B Semi Automatic Rotary Slotter Machine Chain Feed 1800mm

KS - B Semi Automatic Rotary Slotter Machine Chain Feed 1800mm

  • High Light

    Semi Automatic Rotary Slotter Machine


    Chain Feed 1800mm Rotary Slotter Machine

  • Warranty
    1 Year
  • Applicable Industries
    Corrugated Box Packing Machine
  • Video Outgoing-inspection
  • Core Components
    Core Components
  • Weight
    1500 KG
  • Condition
  • Application
    Carton Box Forming Machine
  • Name
    Rotary Slotter Machine
  • Place of Origin
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
    1 Set
  • Price
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1 set per 30

KS - B Semi Automatic Rotary Slotter Machine Chain Feed 1800mm

KS - B Semi Automatic Rotary Slotter Machine Chain Feed 1800mm

1,Function and characteristics( common style)

This device is a highly integrated state-of-the-art device that has undergone extremely precise and complex fine-tuning, straightening lines, cutting edges, and other processes. After being honed by a series of high-precision processing techniques, it has taken its place in the arched panels in our manufacturing process. This device has many notable features.
First of all, it can not only realize the manual feeding of a single sheet of paper card, but also very suitable for the roll of paper service, that is, the roll of paper we often mention, which can be described as versatile and comprehensive.
In our modern production line, it has become an indispensable equipment. It is not only a paper card cutting equipment, but also an all-round paper card cutting machine that integrates multiple functions.
This equipment adopts the most advanced mechanical transmission system and control system, which can precisely control the cutting speed and cutting angle to achieve high efficiency and high quality cutting. Its mechanical structure is uniquely designed to be durable and can withstand long hours of high-intensity work.
In addition, it is equipped with a high-precision measuring instrument that can monitor parameters such as the thickness, width and length of the paper card in real time to ensure cutting quality and accuracy. During the production process, as long as the operation button is pressed lightly, automatic cutting can be realized, which greatly improves production efficiency and production quality.
In general, this equipment not only has a very high degree of integration, but also has rich functions, easy operation and stable performance. It is a high-end equipment with high practicability and reliability.

2,Optional function( electric adjustment phase and manual adjustment phase)

Knives adjustment by synchronization:

Slotting cutter head adopt four knives synchronization, save adjustment time.

3,Manual phase:

Knives seat can be adjusted to 360 degrees positive rotation, counter revolution and axle direction, convenientadjustment, dependabie lock tight, accurate open the slot, adjust function design tightly ,long endurable use.

4,Electric phase:

This is an excellent tool seat with a unique feature - 360 degree full forward and reverse adjustment. To achieve this, the designers employed an extremely sophisticated high-precision motor tuning device. This makes operation easy and intuitive, allowing novices and veterans alike to pick it up quickly.

At the same time, the accuracy has also been greatly improved. Whether it is moving forward or backward, every adjustment can accurately meet expectations. And its durability and reliability are also quite good, which can ensure that it will always remain in good condition during long-term use. In addition, its locking function is also very powerful.

Once locked, it is difficult to open without external force. This allows it to open its specific chute precisely when needed, making it easier for people to operate.

Model Paper passing area(mm) Corner cut depth(mm) Max speed (pcs/min) Paper-feeding style
JGS-B1800 1470×1800 500 60 Chain Feed
JGS-B2000 1470×2000 500 60 Chain Feed
JGS-B2000 1600×2000 550 60 Chain Feed
JGS-B2000 2150×2000 750 60 Chain Feed
JGS-B2200 1470×2200 500 60 Chain Feed
JGS-B2600 1470×2600 500 60 Chain Feed
