Automatic Hot Melt PLC Mouse Rat Glue Trap Making Machine150mm -230mm
Machine Introduction
The hot melt glue machine can produce varies of sheet product ,it is include mouse rat glue trap ,flies trap .cockroach house trap , yellow sticky trap, cardboard mouse trap and plastic mouse trap etc .
Composition
The hot melt glue machine production line : (Basic type)
Automatic feed raw material device (Including)
Convey device(Including)
Put glue device (including)
Button device(including)
Add transverse folding device for making mouse/fly glue board(including)
Bait release device (optional)
Fold device (optional)
Working principle
The mouse paperboard raw material is placed on the automatic paper feeding device, which is sent out in a single sheet. after the glue application photoelectricity detects the mouse board on the conveyor belt, the glue gun falls to apply glue to the sticky mouse glue board , then manual pasting the release paper. ( If produce book type mouse board , it will manual put button and fold it instead of past the release paper by manual ).
Technical parameter
Configuration:
gluing main production line, 40kg capacity melter, automatic paper feeding, automatic gluing,
three-scraper gun seat assembly, 1.8 meters glue feeding hose.
When producing mouse glue board, it needs to be folded by hand;
when producing cockroach house and other products, it needs to be manually pasted with release paper;
it can also be used to produce sticky mouse magic carpet and plastic tray mouse board;
Optional 150kg auxiliary melting tank can also be used to reduce the waiting time for adding glue

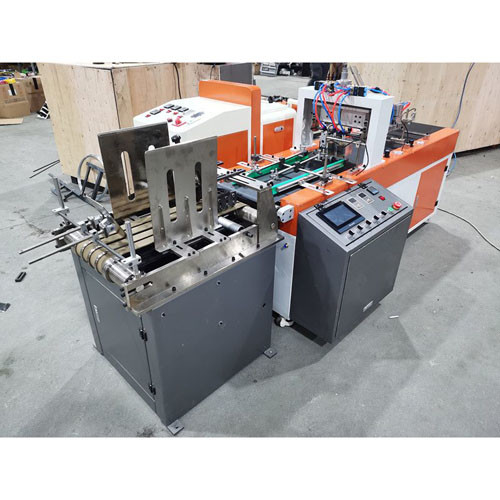

Automatic Feeder:
Size: 92cmx83cmx111cm
Features: The paper feeding motor uses a 200 vertical motor, the frequency converter adjusts the speed, the paper output is stable, and the speed is adjustable, suitable for fly stickers of various thicknesses, sticky mouse boards, cockroach houses, light boards, etc.
Hot melt glue machine:
Size: 96cmx48cmx109cm

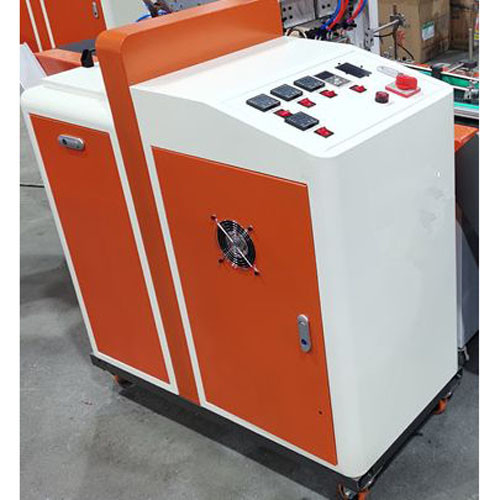

Features: The melter motor uses a 750w three-phase motor, and the frequency converter adjusts the speed. 45cc gear pump, the maximum amount of glue can reach 40g, the heating power is 9kw, and the heating speed is about 40 minutes.

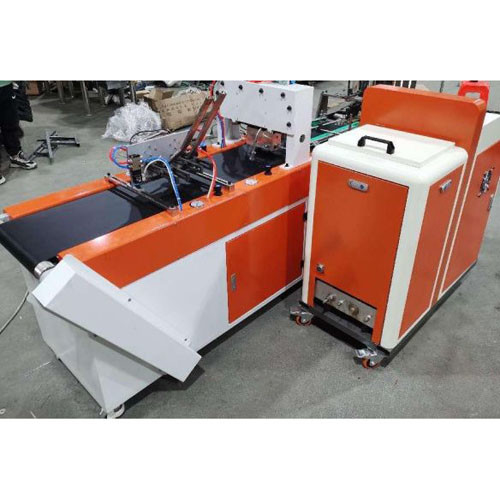

Main production line for gluing
Size: 228cmx96cmx110cm
Features: The main drive motor is a 750w three-phase motor with variable frequency speed regulation, the conveyor belt runs fast and at a stable speed, and PLC or time relay adjusts various time parameters. High-precision sensor that can sense black or other color products at the same time.
Glue coating machine | |||
Item | Name | Unit | Qty |
1 | PT100 temperature control meter | pcs | 2 |
2 | Solid state relay(40A) | pcs | 4 |
3 | Fuse and its seat | set | 3 |
4 | Aviation plug(big,small) | pair | 1 for each |
5 | PT100 temperature sensing head | pcs | 3-4 |
6 | Return valve | pcs | 1 |
7 | Filter core(big,small) | pcs | 1 for each |
8 | Hose connector 45 | pcs | 4 |
9 | Sealing ring, gasket (including gear pump oil seal) | several | |
10 | Flat sealant | bottle | 1 |
11 | Filter | pcs | 1 |
12 | Polytetrahydrogen tube | meter | 1 |
13 | Copper sheet | pcs | 1 |
14 | Various types of screws | pcs | several |
15 | Glue gun body: (with thimble 4) | pcs | 1 |
16 | Gas joint | pcs | several |
17 | air tube | meter | 10 |
18 | Barometer (single , double ) | pcs | 1 for each |
19 | Plastic hose 1.8meters | pcs | 1 |
20 | Various switches | pcs | several |
21 | Intermediate relay(24V) | pcs | more than 4 |
22 | Various heating tubes | pcs | 2-3 |
23 | Chain (several joints ) | pcs | 1 |
24 | Photoelectric: ( silver , yellow) | pcs | 2 for each |
25 | Intermediate relay(220V) | pcs | more than 3 |
26 | Solenoid valve | pcs | 3 |
27 | Host belt | pcs | 1 |
28 | Hexagon wrench | set | 1 |
29 | Training Video CD | pcs | 2 |
30 | Hole punch tool | pcs | 1 |
31 | Reinforcement of gun seat and rubber tank filter | set | 1 for each |
32 | Various springs | pcs | several |
33 | Inverter panel | pcs | 1 |
34 | Square cylinder | pcs | 2 |
35 | Half-moon shape bearing | pcs | 1 |
Auto feeder part | |||
1 | Feeder belt | pcs | 4 |
2 | Speed adjust meter | pcs | 1 |
3 | paper press wheel | pcs | 4 |
