Heavy Weight Combined Rotary Slotter Machine With Creaser Pizza Box Fruit Box

Heavy Weight Combined Rotary Slotter Machine With Creaser Pizza Box Fruit Box

  • High Light

    Combined Rotary Slotter Machine


    Heavy Weight Rotary Slotter Machine

  • Control System
  • Cutting Angle
  • Cutting Depth
  • Cutting Method
  • Cutting Width
  • Material
  • Name
    Rotary Slotter Machine
  • Operation
  • Power
  • Size
  • Speed
  • Type
    Rotary Slotter Machine
  • Voltage
  • Weight
  • Place of Origin
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Delivery Time
    5-8 Work Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    1 set 40per days

Heavy Weight Combined Rotary Slotter Machine With Creaser Pizza Box Fruit Box

Combined Rotary Slotter Machine With Creaser Pizza Box Fruit Box

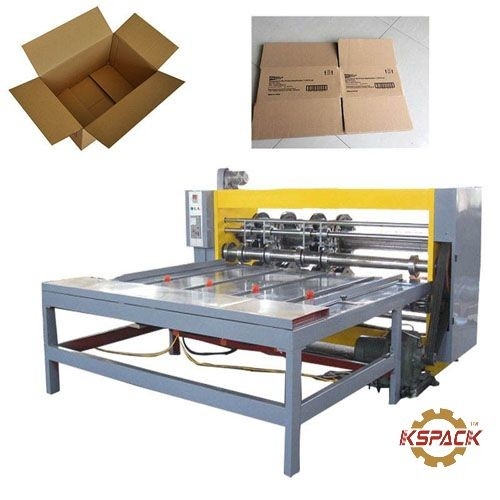

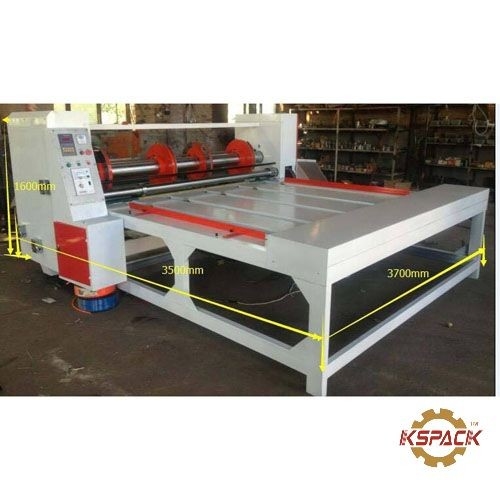

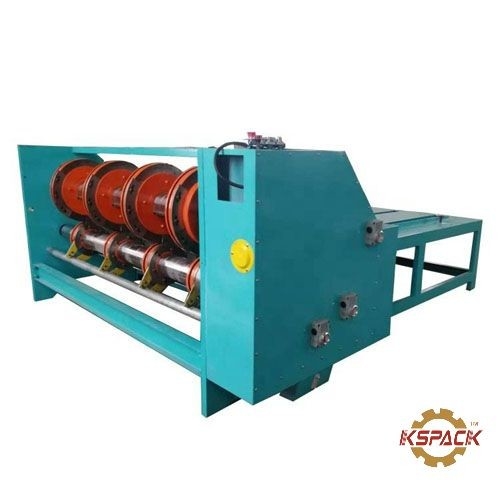

1.Rotary Slotter Machine Description:

Rotary box slotter ,creasing and slotting machine ,corrugated cardboard slotter machine.

All the carton size ,height and phase was adjusted by computer ,man-machine interface ,save time and energy ,improved the working efficiency ,the computer can storage orders, you can input the length ,width ,height of the carton ,or find the data in the orders ,then the slotting knives ,creasing wheels will move to the proper position automatically by computer. Creasing device is process balance correction, smooth operation. Pressing roller adopt French Martin technology, use hard pressure the soft, the press line straight and not easy seam broken line .

The slotting knives is alloy steel material after heat treatment grinding tooth slotting knife, hardness and toughness is good. Alloy steel after heat treatment material grinding trimming edge knife, knife edge sharp, high precision,lowest error. The functions of the automatic slotter : slot , slitter ,scorer , cutting angle .


2.Rotary Slotter Machine Spetification:

SIZE PASSING PAPER SIZE Depth of slot (mm) Thickness of pass board Feeding way
FYQ-2000 1850×1470 0-50 2-11mm Chain
FYQ-2600 2450×1470 0-50 2-11mm Chain
FYQ-2000 1850×1650 0-45 2-11mm Chain
FYQ-2600 2450×1650 0-45 2-11mm Chain

3.Rotary Slotter Machine Feature Advantage:

Its main characteristic is single sheet manual feeding by chain, even the frizzy paperboard acceptable.

All the transmission axle and roller are made by the high-quality steel; plated with hard chrome and grind surface.

Axle treated by rigidity chroming electroplate, and nicety grinding, firmness durable.

All the machine bearing was used Harbin sealed ball bearing, which can guarantee the machine high speed running steadily.

Slitting corner and slotting knife seat can be made by 360° electric degree forward, reverse and around direction adjustment.

Equipped with hand crank, very convenient and lock tightly, slotting accurately, this adjustment function design tightly, durable in use.

4.Our Company:

We are a professional supplier of corrugated machinery,including automatic high speed flex printer slot die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery. We have rich experience and expertise in the field of corrugated machinery, and we can provide customized solutions for different customers’ needs. We are committed to delivering high quality products and services with competitive prices and timely delivery.


Q:Are you the trader or manufacturer?

A:We are the manufacturer with export qualification

Q:Do you make OEM? can do

Q:Where are your factory located in?

A:We are in Dongguang town,Cangzhou city,Hebei,china

Q:What is your business process?

A:Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine.

6.Our Service:

Free Shipping Replacement Spare You just need to pay the freight

One To One Video Teaching We Provide Operation & Maintenance cd

-11 years experience

-Export to more than 150 countries

-Professional international sales more than 30 persons

-Professional sale team

technical team and after-sales service team
