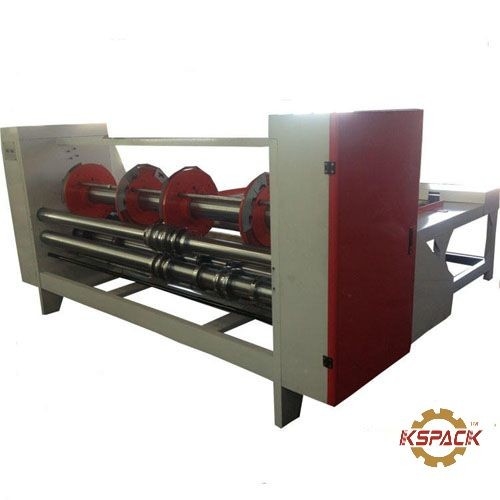

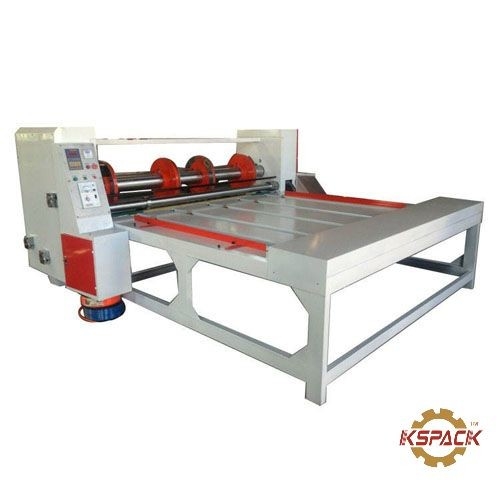

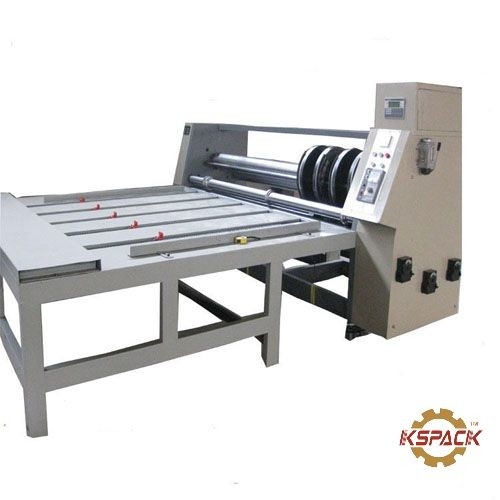

Semi Automatic Chain Feeding Rotary Slotter Machine 2 Knife 4 Crease
1.Rotary Slotter Machine Description:
This machine is new products researched by our company ,it not only have common rotary
slotting machine’s characteristic, such as easy operation and convenient use ,but had united the
function and characteristic of rotary die-cutter. It don’t need make moulding board, but it can eliminate the phenomenon which have deckle edge and untidy appeared in rotary knive cutted slot .This machine can match with multi-color printing machine according to clients requirement, it reduced the cost of carton factory ,increased the produce quality, it is the economic and perfect machine in modern production.
2.Rotary Slotter Machine Spetification:
| SIZE | PASSING PAPER SIZE | Depth of slot (mm) | Thickness of pass board | Feeding way |
| FYQ-2000 | 1850×1470 | 0-50 | 2-11mm | Chain |
| FYQ-2600 | 2450×1470 | 0-50 | 2-11mm | Chain |
| FYQ-2000 | 1850×1650 | 0-45 | 2-11mm | Chain |
| FYQ-2600 | 2450×1650 | 0-45 | 2-11mm | Chain |
3.Rotary Slotter Machine Feature Advantage:
Aircraft used spray lubrication of the transmission gear all play a role lubrication.
Rubber roller with knives roller gap adjust by manual. The rubber roller lift and down by pneumatic . Rubber adopt roller can shift move 40mm left and right.
The speed : max speed 60pcs /max ,work speed : 40-50pcs/min
Down knives cushion adopt import rubber cushion , down axle can be lift-lower by pneumatic , not spoil the rubber cushion when axle no-load running and adjusting phase .
Down axle can auto movement transversely , rotary die-cutter auto change position , ensure cut mark never reiteration . The rubber cushion use life has greatly enhanced .
Up knives adopt import euro rule , it installed on the mould very conveniently , increase the rubber cushion use life , suggestion the customer use it .
Adopt posttensioning out the paper , easy dispose of paper trimmings .
Die cut adjust use the electrical phase adjust, convenient and quick .
Main gear of transmission part thickness is 50mm , it use 45# steel , adopt helical gear driving and processed by high frequency quenching . Auto sprinkle lubricating system, ensure the machine precise and use life .
All pressure adjustment by turbine box .
4.Our Company:
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
5.FAQ:
Q:Are you the trader or manufacturer?
A:We are the manufacturer with export qualification
Q:Do you make OEM?
A:Yes.here can do
Q:Where are your factory located in?
A:We are in Dongguang town,Cangzhou city,Hebei,china
Q:What is your business process?
A:Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine.
6.Our Service:
Free Shipping Replacement Spare You just need to pay the freight
One To One Video Teaching We Provide Operation & Maintenance cd
-11 years experience
-Export to more than 150 countries
-Professional international sales more than 30 persons
-Professional sale team
technical team and after-sales service team
