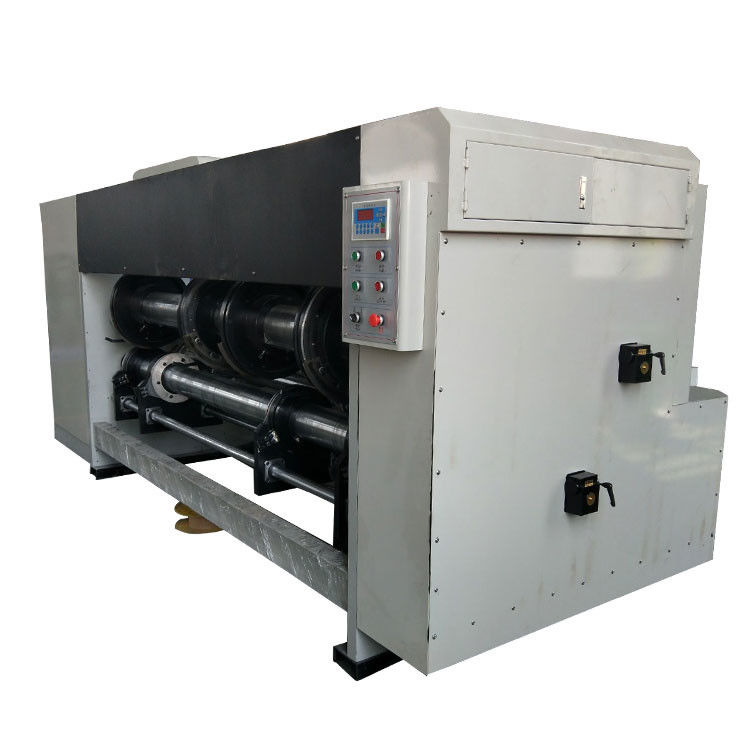

Chain Manual Feeder Rotary Slotter Machine Synchronous Traverse
1.Rotary Slotter Machine Description:
This new type of comprehensive equipment can complete the main tasks of slotting, corner cutting, thread collection and paper separation at one time.
The arc-shaped serrated knife is used to make the cutting surface of the cardboard smooth and free of burrs, which will not damage the corrugated structure and affect the load-bearing of the cardboard.
The gap between the buffer roller and the die roller is adjusted by manually and pneumatically adjusting the soft roller up and down.The backing roller adopts a mechanical cam track longitudinal movement (40mm) structure. (various configurations are available).
The whole machine adopts cross coupling structure, oil injection lubrication, stable transmission and long service life of gears.
2.Rotary Slotter Machine Specifications:
| Model | FYQ -900 | FYQ -1200 | FYQ -1450 | FYQ -A1650 |
| Diameter of roller | 300MM | 400MM | 480mm | 530MM |
| The max speed | 60PCS | 60PCS | 60pcs/min | 60pcs |
| The max feeding size | 900X(2200-2800) | 1200X(2200-2800) | 1400x(2200-2800) | 1650X(2200-2800) |
| Slot Min feedingsize | 230X600MM | 330X600MM | 350X600mm | 380X600MM |
| The effectivethickness | 3.5.7ply(2-12mm) | 3.5.7ply(2-12mm) | 3.5.7ply(2-12mm) | 3.5.7ply(2-12mm) |
| The max depth ofslot | 250 | 314 | 370 | 416 |
3. Rotary Slotter Machine Feature Advantage:

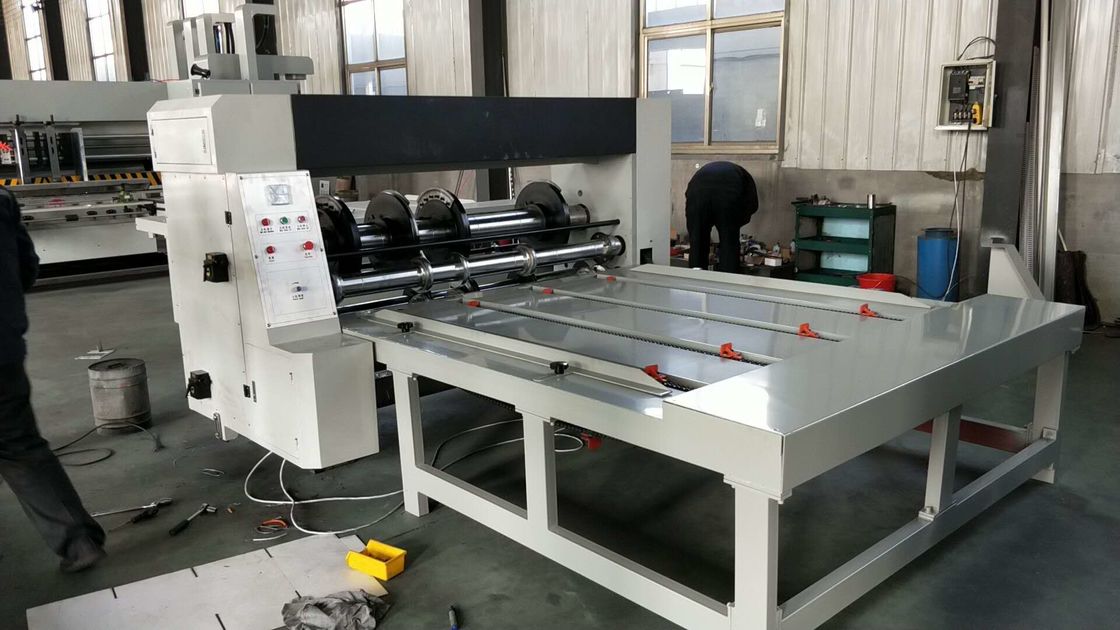

Feeding single paperboard by hand ,general flexual paperboard is applicable too.
Slicing the corner, opens the slot knife can 360o positive turn and reverse turn,circularly adjusted ,with manual handle,convenient to adjust ,reliable to lock and open slot precisely ,the adjusting fuction designed compactly durable and long using lifte.
Phase electricity : Open slot knife 360o positive and reverse turn ,adopt motor micro-adjusting equipment ,convenient to operate, accurate adjusted size ,lock reliable and slotting accuracy.

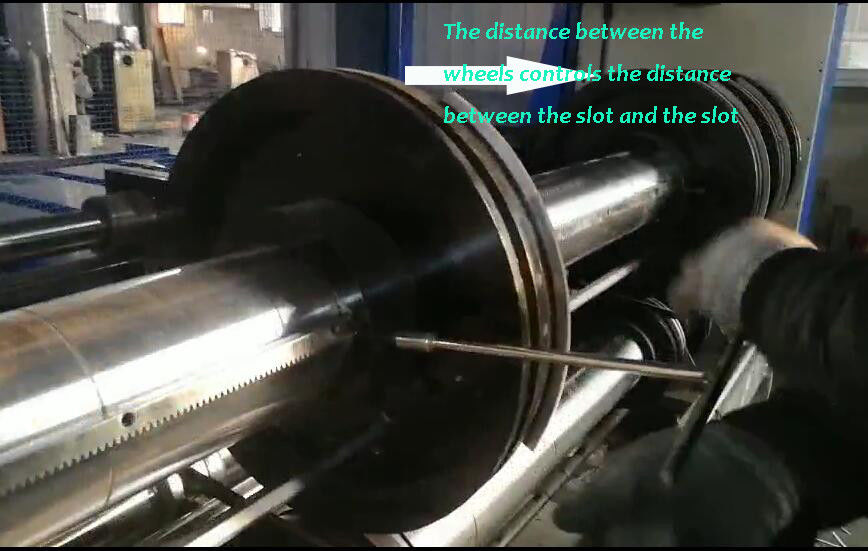

Slot knives with crease movment together , conviennt adjust the machine .save the machine adjust time.
Machine roller all chorme plated after griding , increase the roller hardness and uselife.
4.Our Company
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery. Our products are widely used in various industries such as printing, packaging, food, beverage, pharmaceutical, cosmetic and so on. We have a strong R&D team and a strict quality control system to ensure the performance and reliability of our products. We also offer after-sales service and technical support to our customers.
5.After Sales Service
Free Shipping Replacement Spare You just need to pay the freight
One To One Video Teaching We Provide Operation & Maintenance cd
-11 years experience
-Export to more than 150 countries
-Professional international sales more than 30 persons
-Professional sale team
technical team and after-sales service team
Our KSPACK Group :
Hebei Jinguang Packing Machine Co.,Ltd
Cangzhou Kingsun IMP and EXP Co.,Ltd
Dongguang BaiYing Carton Machinery Co.,Ltd
Our products are sold all over the world, you can rest assured.
