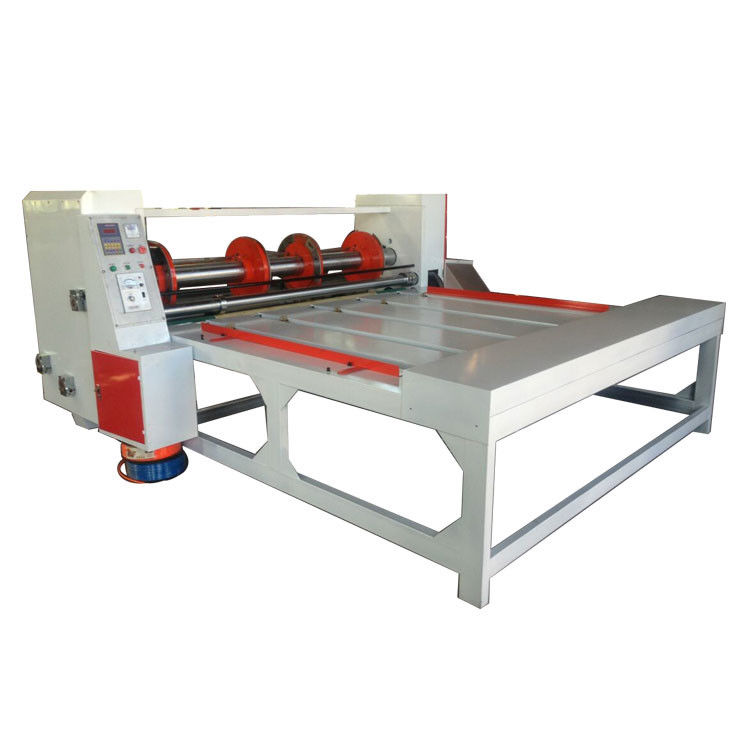

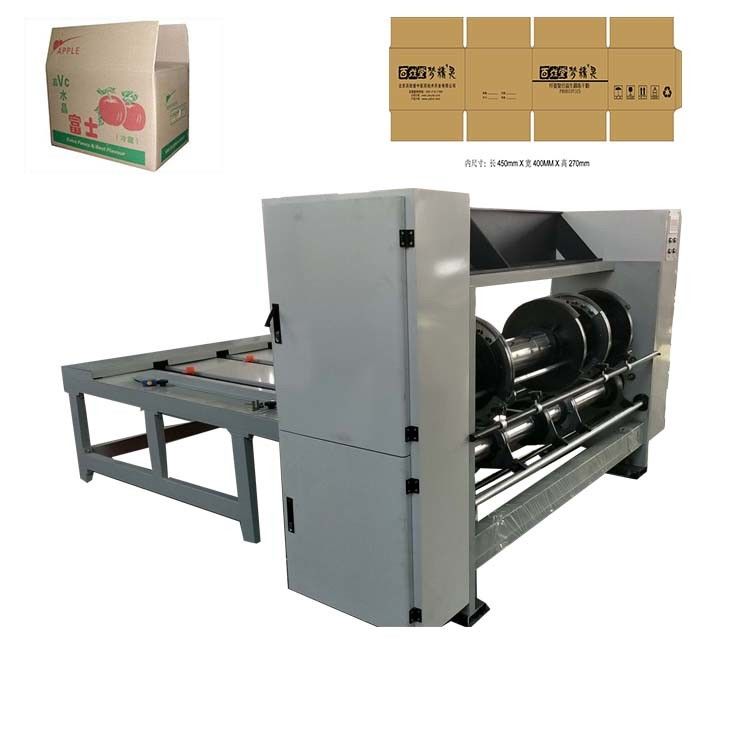

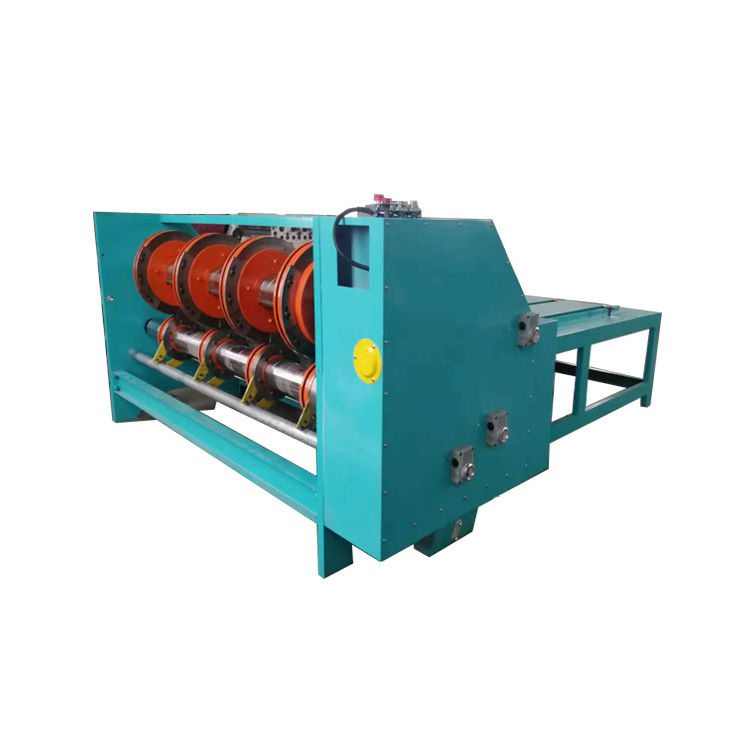

Chain Feeder Rotary Slotter Machine High Speed Rs4 With Creaser

Chain Feeder Rotary Slotter Machine High speed Rs4 with Creaser

Rotary Slotter Machine Product Description

Rotary Slotter Machine CHARACTERISTICS:

This series corrugated paperboard separating paper rolling line cutting corner opening slot machine, is a comprehensive production equipment which integrate several process such as cutting corner, rolling line and slicing side, the main characteristic is feeding single paperboard by hand, general flexural paperboard is applicable too.

The machine adopts computer control, phase adjustment and high adjustment are computer control electric box. Front feeding system, vacuum adsorption transmission, suitable for all kinds of cardboard, add tissue paper board and bend cardboard transmission stability, high speed and precision. 3High precision straight tooth gear, accurate and durable: 20 grmnti high-frequency quenching, grinding hardness HRC58-62, and up to the national level 6 precision, use for a long time, high accuracy. Cross roller drive structure, use for a long time no wear and tear, to ensure the transmission accuracy. From key connection mode, can make the shaft with gear, when used in high torque won't have clearance, installation and maintenance easy to change, improve the assembly accuracy, ensure the accuracy of overprint. Knife electric transversal, adopts double anti-collision device, ensure the safety equipment. Mechanical spray type gear oil pump circulating lubrication system, effectively enhance the service life of transmission gears, with functions of automatic return.

Rotary Slotter Machine SLOTTER FUNCTION:

• Orders for commonly used storage slot.

• Slotting knife wheel form: double single shaft type.

• Slotting cutter location, the carton height adjustment 360 ° electric motor and computer digital set and adjusted by a new type of planetary gear system, the minimum adjustment accuracy of 0.1 mm, and can be adjusted in the machine.

• Slotted blade thickness of 7.5 mm, Angle of knife trimming width 50 mm.

• Steel materials of heat-treatment grinding zigzag slot blade, hardness and toughness.

• Crease, knives seat transverse, phase adjustment, reset, etc all can (automatic or manual) electric control, computer control for change order quickly.

• When the displacement of upper and lower blade linkage, a knife into the groove positioning function, to ensure that the knife seat adjusted for synchronous moving, separate the blade, convenient maintenance and replacement, extend the life of the cutter.

• Preloading transmission, to avoid damage in the cardboard.

• Crease embedded optimal force glue cushion, line pressing forming effect is better, upper and lower line pressing wheel of transverse position can be adjusted with a slotted knife at the same time.

• Knife in the lateral displacement of the structure, the production of wide adaptability.

• Optional punching, handle function.

• Slot precision: plus or minus 1 mm.

Rotary Slotter Machine Product Specification

Our Company

We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
