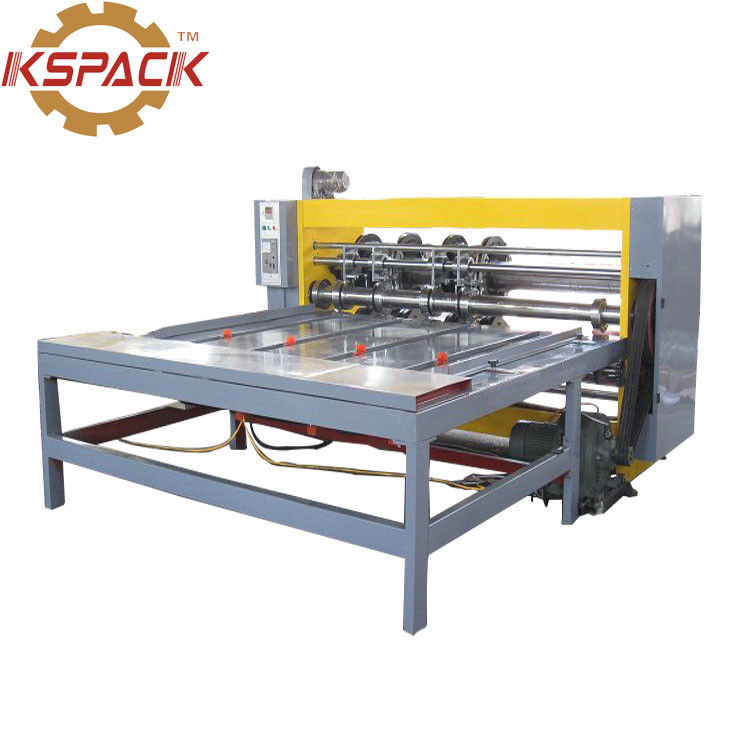

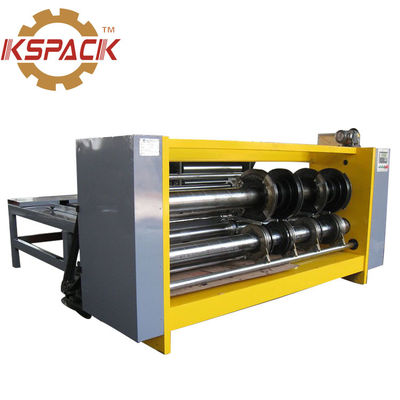

Semi Auto Chain Feeder Rotary Slotter Machine Carton Slotting Machine 2.2KW

Use and characteristics:

MQJ series of rotary diecutter for cutting a variety of corrugated board and all kinds of special-shaped packaging. It has a high efficiency, power saving, safe features, is the third generation of domestic rotary diecutter. The machine is equipped with imported polyurethane felt( anivil cover), its service life of up to 10 million times, the line speed automatic compensation function can ensure that the blanket wear after the mold cut out the normal size of the cardboard, soft roller repair mechanical color can extend the service life of three Times The feeding system uses linkage self-locking device( chain feeding system), the use of more convenient operation.

Main specifications and technical parameters:

Main configuration


Paper feed section

• Manual chain feed, complete slot, cut angle, crease, punching one time.
• The paper feed speed 4000 pcs per hour, die cutting accuracy ± 1mm.
• Phase phase motor with electric adjustment structure, start and stop are quickly adjusted.
• Electroplating feed paper wheel, to prevent crushing cardboard, increase the accuracy of paper feed.
• Chain trolly with high-strength engineering plastics, impatient tone low, durable.

Electrical department

• The main motor electromagnetic adjust speed, save power.
• Ahead and back control panel , easy to operate.
• The whole by light, electricity, air joint control system.
• Whole electrical accessories are brand-name manufacturers products.

Die cutting

• Die-cutting roller for high-quality steel, wall thickness 30mm, balanced correction, hard chrome plated
• Wall panels for high-quality cast iron material, wall thickness 50mm, large-scale processing center production.
• Soft roller automatic grinding mechanism to improve the re-use of anil cover, grinding 3-4 times.
• The Line Speed Automatic Compensation To Ensure That Each Batch Of Carton Die Cutting Size Exactly The Same.
• Imported Polyurethane Soft Cut Sets, Easy Installation, Die Cutting 12 Million Times.
• Cam-Type Soft Roller Around The Horizontal Movement Of 40mm, Anil Cover Wear Evenly.
• Lubrication System Oil-Immersed Lubrication, Simple And Efficient.

Our Company

We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.

FAQ

1.Q:Are you the trader or manufacturer?

A:we are the manufacturer with export qualification

2.Q:Do you make OEM?A:Yes.herecando

3.Q:Where are your factory located in?

A:we are in Dongguang town,Cangzhou city,Hebei,China

4.Q:What is your business process?

A: Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine.
