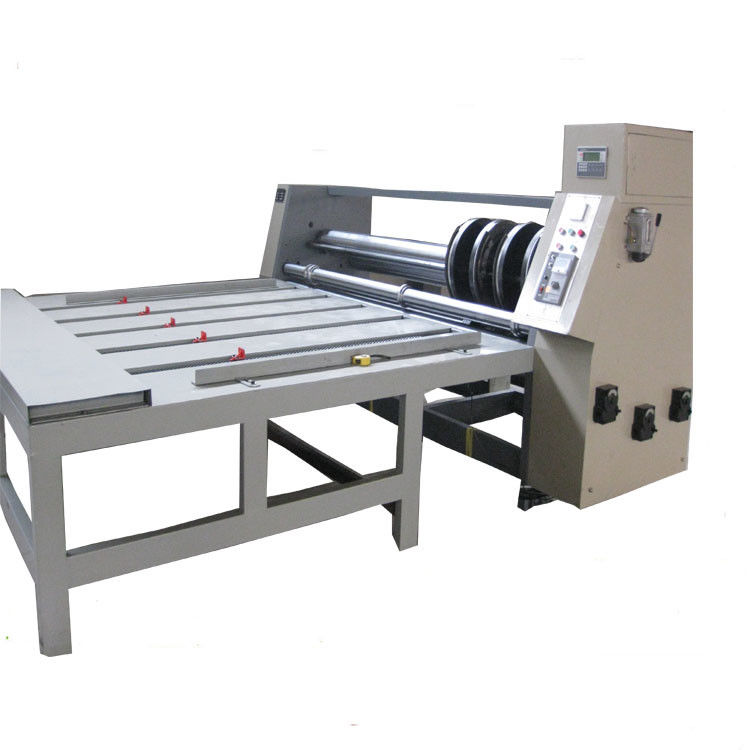

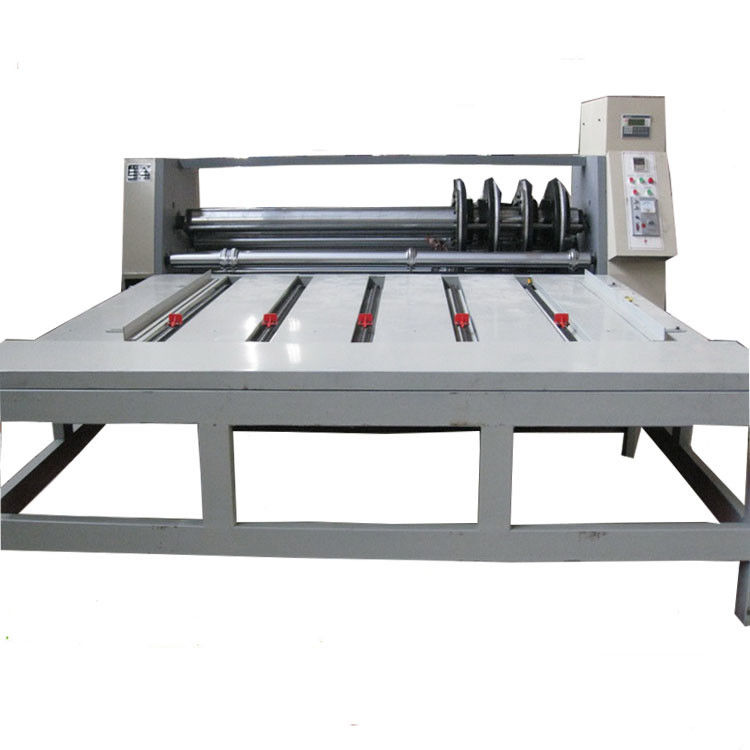

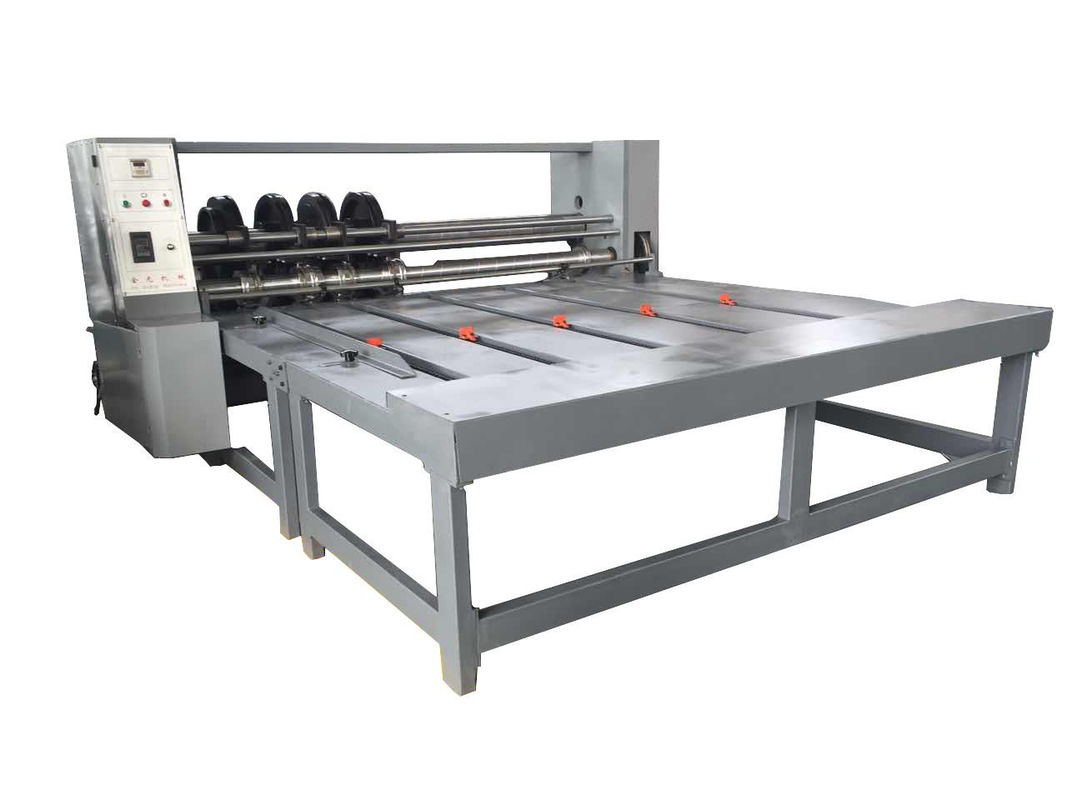

High Speed Creaser Rotary Slotter Machine with Creaser four knives
Product Details
Kingsun Series Rotary Slotter Machine
,Kingsun Series Paper Food Box Making Machine
,High Speed Creaser Rotary Slotter Machine
High Speed Creaser Rotary Slotter Machine with Creaser four knives
Rotary Slotter Machine Product Description
MQJ series of rotary diecutter for cutting a variety of corrugated board and all kinds of special-shaped packaging. It has a high efficiency, power saving, safe features, is the third generation of domestic rotary diecutter. The machine is equipped with imported polyurethane felt( anivil cover), its service life of up to 10 million times, the line speed automatic compensation function can ensure that the blanket wear after the mold cut out the normal size of the cardboard, soft roller repair mechanical color can extend the service life of three Times The feeding system uses linkage self-locking device( chain feeding system), the use of more convenient operation.
Rotary Slotter Machine Product Specification
|
Model |
Max die cut size |
Min die cut size |
Paper pass thickness |
Main motor power |
|
MQJ-1800B |
1750*1350 |
300*600 |
1-8(3-5 layer) |
4.0 KW |
|
MQJ-2000B |
2050*1350 |
300*600 |
1-8(3-5 layer) |
5.5KW |
|
MQJ-2000B |
2050*1600 |
400*600 |
1-10(3-7layer) |
7.5KW |
|
MQJ-2400B |
2480*1600 |
400*700 |
1-10(3-7layer) |
7.5KW |
|
MQJ-2500B |
2480*1800 |
500*700 |
1-10(3-7layer) |
11KW |
|
MQJ-3000B |
2980*1800 |
500*700 |
1-10(3-7layer) |
15KW |
Main Components
Paper feed section
Manual chain feed, complete slot, cut angle, crease, punching one time. The paper feed speed 4000 pcs per hour, die cutting accuracy ± 1mm. Phase phase motor with electric adjustment structure, start and stop are quickly adjusted. Electroplating feed paper wheel, to prevent crushing cardboard, increase the accuracy of paper feed. Chain trolly with high-strength engineering plastics, impatient tone low durable.
Electrical department
The main motor electromagnetic adjust speed, save power. Ahead and back control panel , easy to operate. The whole by light, electricity, air joint control system. Whole electrical accessories are brand-name manufacturers products.
Die cutting
1.Die-cutting roller for high-quality steel, wall thickness 30mm, balanced correction, hard chrome plated
2.Wall panels for high-quality cast iron material, wall thickness 50mm, large-scale processing center production.
3.Soft roller automatic grinding mechanism to improve the re-use of anil cover, grinding 3-4 times.
4.The line speed automatic compensation to ensure that each batch of carton die cutting size exactly the same.
5.Imported polyurethane soft cut sets, easy installation, die cutting 12 million times.
6.Cam-type soft roller around the horizontal movement of 40mm, anil cover wear evenly.
7.Lubrication system oil-immersed lubrication, simple and efficient.
-
