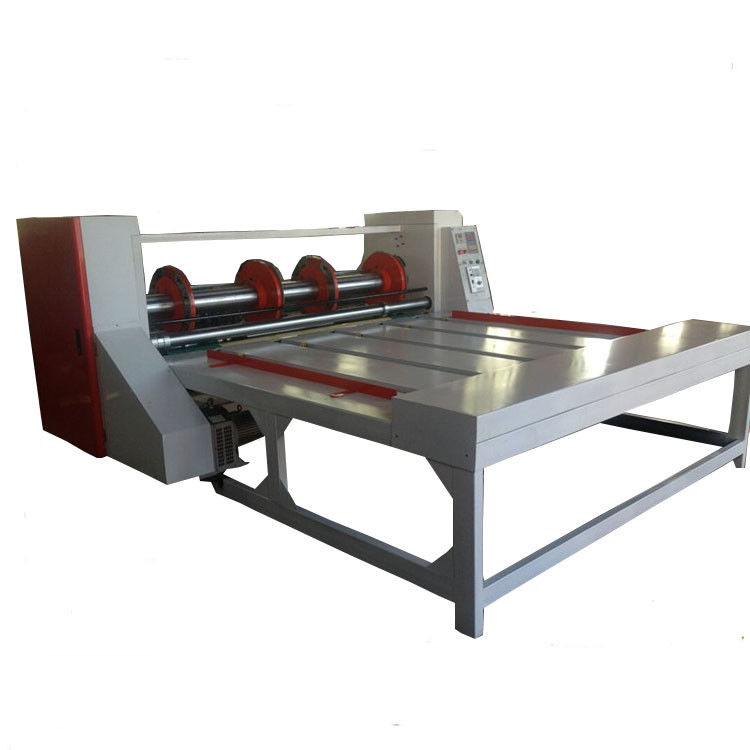

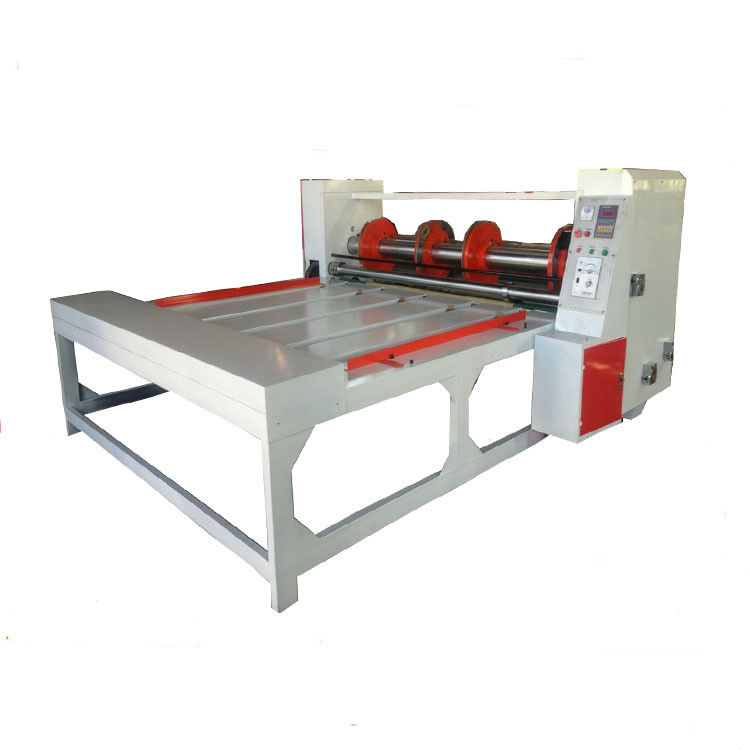

Semi Auto Carton Box Rotary Slotter Machine Chain Feeder High Speed
Product Details
Chain Feeder Carton Box Printing Slotting Machine
,ISO Carton Box Printing Slotting Machine
,ISO flexo printer slotter machine
Semi Auto Carton Box Rotary Slotter Machine Chain Feeder High Speed
Rotary Slotter Machine Description
Rotary Slotter Machine The feeding unit:
1.The machine applies advanced type vacuum suction auxiliary lead edge feeding system.
2. High pressure centrifugal fan auxiliary feeding, ensuring the smooth feeding of the bending cardboard. The blowing can be adjusted according to the different size of the cardboard in each section. Ensuring the biggest the vacuum suction , guarantee the stable feeding. Function of the supper thin feeding, ensuring the 2mm cardboard can feeding better.
3. Front bar is adjusted manually . Left bar and Right bar is electrically adjusted By screw. Right bar own the function of pneumatic flapping. Adjusting of the back bar ( left ,right,up and down) is manual, convenient , fast and precise.

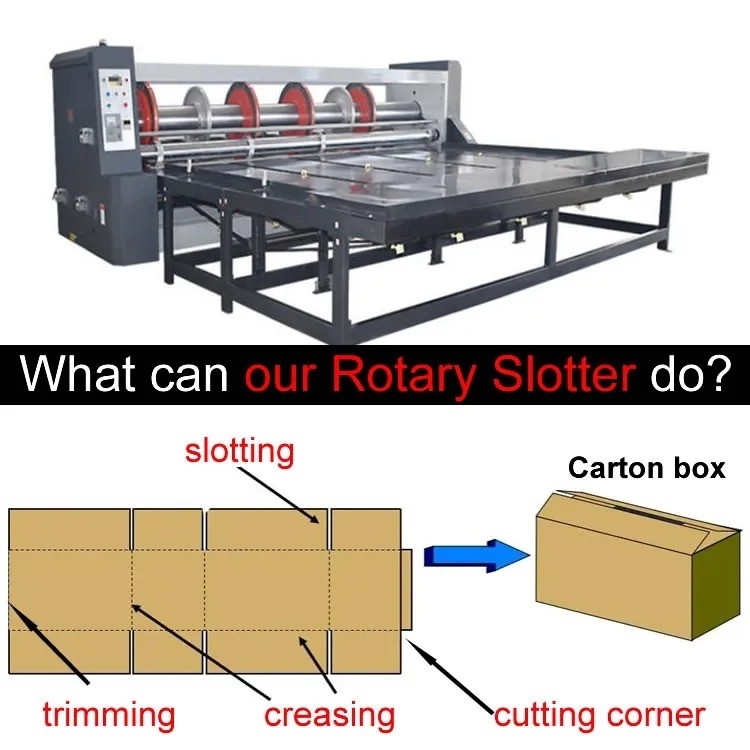

Rotary Slotter Machine The slotting unit:
1. Axial and vertical movement of the knife seat and height of the carton are controled and adjusted by manual.
2. Interval is adjusted by high precise worm box with a range of 0-11mm. convenient and swift.
3.Slotting Phase And Height Adjusting: Planetary gear structure; Slotting phase applies by electric digital adjusting with 360 degree in both running and stop situation.
4.the slotter knives with crease adjust same time with manual.
Rotary Slotter Machine Specification
|
Name of parameter |
Unit |
KFQ1600 |
KFQ1400 |
|
Max.speed of production |
pieces/min |
100 |
100 |
|
Max.size of paperboard |
mm |
1600x(2000-2800) |
1400X(2000-2800) |
|
Min.size of paperboard |
mm |
550*650 |
450X500 |
|
Sloting width |
mm |
7 |
7 |
|
Precision of slotting |
mm |
±1 |
±1 |
|
Adaptable thichness of |
mm |
3-11 |
3-11 |
|
Max deepth of slot |
mm |
550mm |
500mm |
|
Power |
KW |
15KW |
15KW |
Company Introduce:
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
FAQ
1.Q:Are you the trader or manufacturer?
A:we are the manufacturer with export qualification
2.Q:Do you make OEM?
A:Yes.herecando
3.Q:Where are your factory located in?
A:we are in Dongguang town,Cangzhou city,Hebei,China
4.Q:What is your business process?
A: Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine.
-
