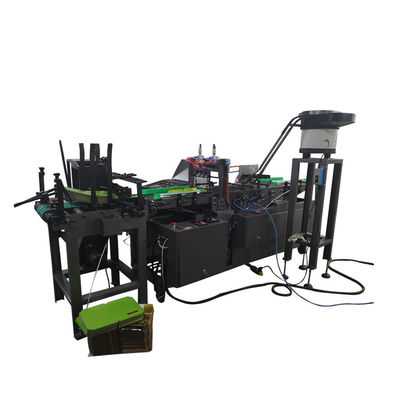

Hot Melt Sticky Insect Glue Trap Machineinsect Glue Trap Making Machine
2. Summarize
The company's sticky insect board machine is a special equipment for the production of sticky insect board. Adhesive, punching, slitting can be done on this device at once. The device is easy to operate, convenient, is a high-speed, efficient and stable equipment.all controlled by PLC touch screen,so can put the data on screen ,convenient for users operation
3.The working principle
A roll of substrate and two volumes of release paper were installed in the machine material roller, followed by the machine through the wheel, the main drive rubber wheel to reach the knife. Two sets of coating glue gun at the same time on both sides of the substrate coating, and paste the release paper, punching device after punching, cut the knife in accordance with the length of the cut into a single product.
| Item | Spec |
| Motor | 380V |
| Power | 15KW |
| Max Coating width | 400mm,can make special size |
| Coating glue sides | double sides |
| Glue tank | 80kg |
| Speed | 20000pcs/H |
| Yellow paper roller max width | 400mm |
| Release paper roller max width | 400mm |
Our products are sold all over the world, you can rest assured.
