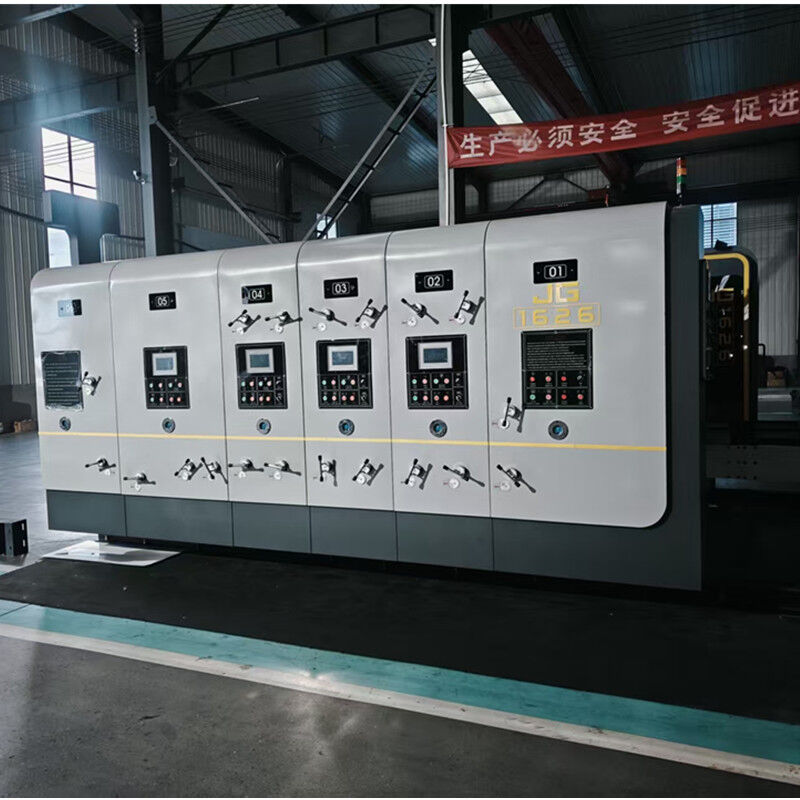

KSPACK 4 Color Carton Corrugated Box Board Flexo Printing Machine

1.Printing roll (plate roll)

【1】 diameter of ¢ 523 mm (with diameter of ¢ 536mm).

[2] high-quality steel surface grinding, axial reference scale, hard chrome plating.

[3] to do the balance correction, smooth operation, to adapt to high-speed operation.

【4】 ratchet fixed scroll plate, with hanging plate ditch, to adapt to the rapid version of the installation convenient and quick.

【5】 full version of hanging slot, for 10 mm hanging version of the article.

【6】 loading and unloading printing plate, foot switch electric control is reversing.

【7】 printing roller axial manual traverse, the maximum movement of 10mm.

2.printing press roll

【1】 diameter of ¢ 155 mm.

[2] the use of high-quality seamless steel pipe surface grinding, dynamic balance correction, smooth operation, hard chrome plating

【3】 printing pressure roller cross slider-type dial to manually adjust the adjustment range of 0 to 12 mm. Adjustment does not affectGear clearance to ensure transmission accuracy.

3.Feed the upper and lower rollers

【1】 on the roll: diameter ¢ 86 mm seamless steel pipe, with three paper feed ring.

【2】 the next roll: diameter ¢ 155mm seamless steel pipe, surface grinding, hard chrome plated

【3】 feeding roller cross slider-type dial dial manually adjust the adjustment range of 0 ~ 12 mm. Adjustment does not affect teethWheel clearance, to ensure transmission accuracy.

• steel anilox roller rubber roller set ink system

[1] diameter of ¢ 176 mm.

【2】steel surface grinding, repression reticulate, hard chrome plating.

【3】 alance correction, smooth operation.

【4】mesh number is ,200-280 lines / inch selection. Option ceramic roller 300line/inch (need to paid)

【5】 with the feed system pneumatic automatic lifting device. (When feed paper pr the anilox roller is lowered and touched with print plate ,stop feed paper

anilox roll is up and the plate is separated)

【6】 Anilox roller with wedge-type clutch, even ink, easy to clean ink.

【7】 rubber roller diameter ¢ 153.6 mm.option the doctor blade system

【8】 steel pipe surface wrapped with wear-resistant rubber, and do the balance correction.

【9】 rubber in the special high grinding, ink transfer effect is good. Quick clearance fine-tuning self-locking device to ensure uniform ink. The amount of uniform ink system, the conversion effect is good, to extend the life of rubber roller.

5.phase adjustment mechanism

[1] planetary gear structure.

[2] printing phase using computered plc control impurt the digital .(Run, stop can be adjusted), manually adjust the horizontal position, adjust the distance of 10 mm.

【3】 in the printing process after the printing plate automatically reset the system.

【1】 Pneumatic diaphragm pump, ink stability, easy operation and maintenance.

【2】 ink filter, filter impurities.

【1】 cylinder brake mechanism.

【2】 When the machine to separate or adjust the phase, the brake mechanism to limit the machine rotation, to maintain the original gear position fixed point.
