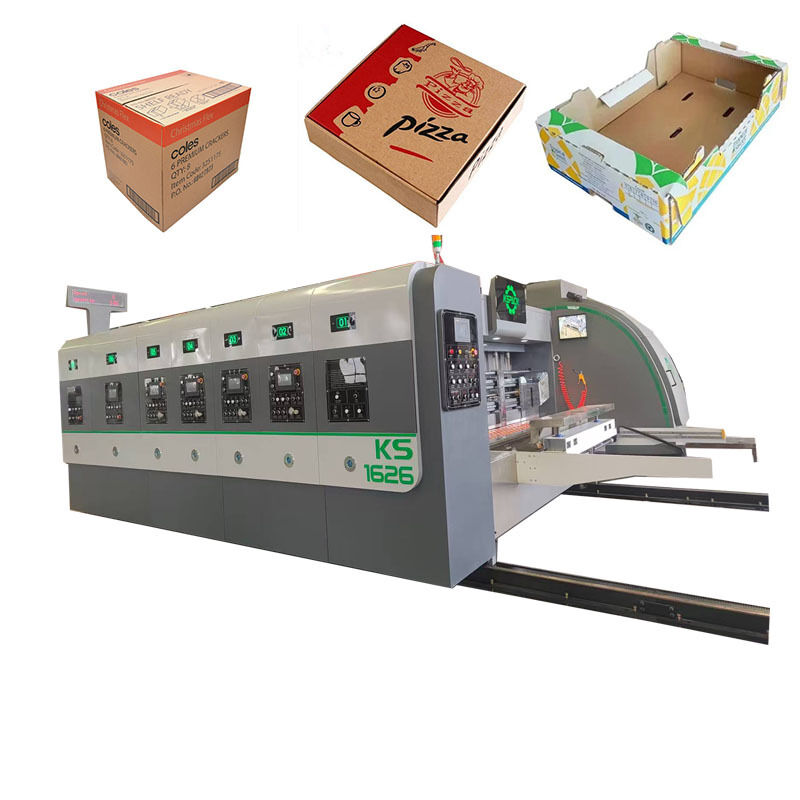

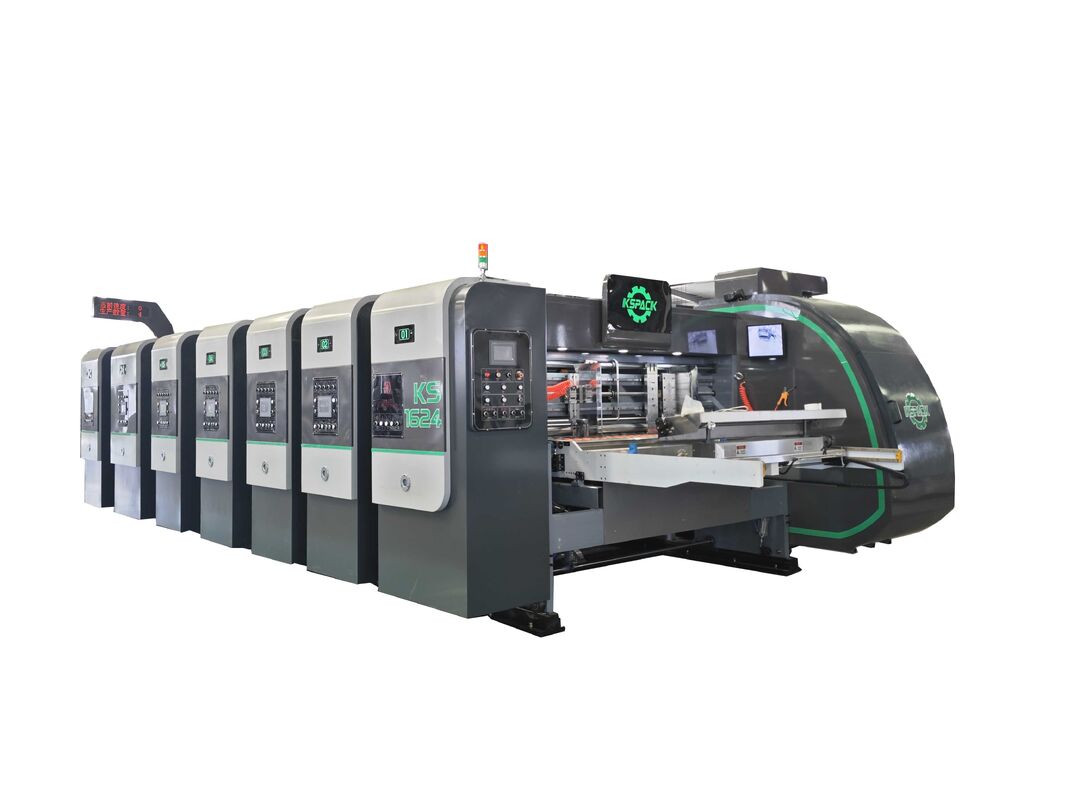

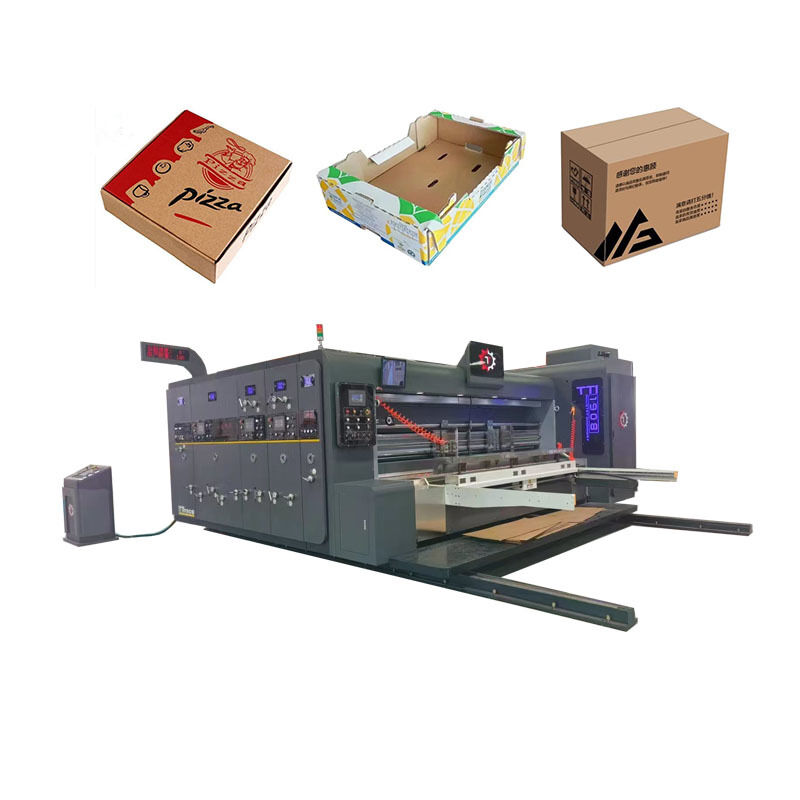

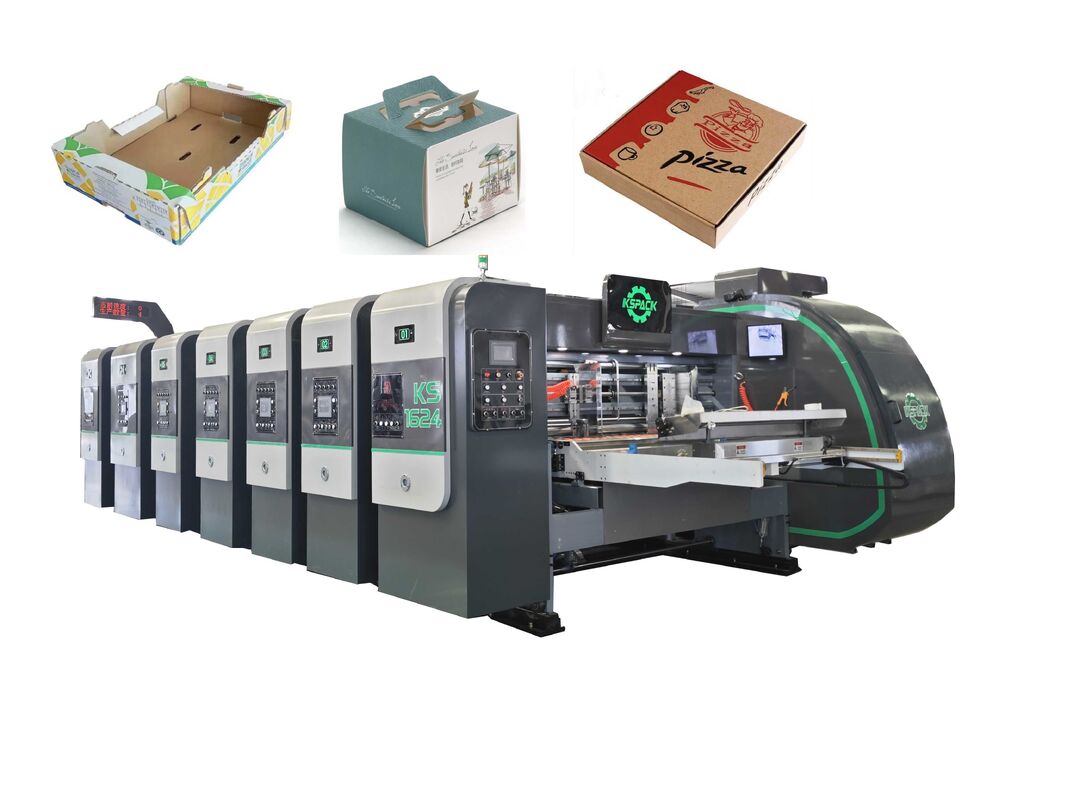

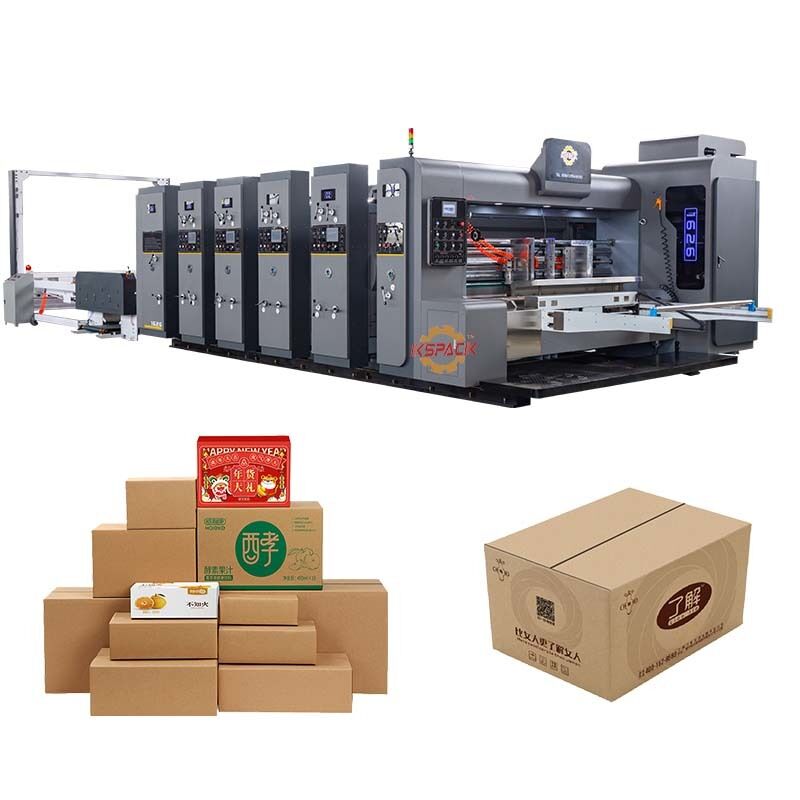

Flexo printing and slotter machine automatic Corrugated Fruit Pizza Box printing die cutting Making machine
Basic Properties
Place of Origin:
Heibei,China
Brand Name:
kspack
Certification:
CE
Trading Properties
Minimum Order Quantity:
1
Payment Terms:
L/C,D/P,T/T,Western Union
Supply Ability:
10sets/month
Product Summary
Flexo Printing and Slotter Machine - Automatic Corrugated Fruit Pizza Box Production High-performance automatic flexo printing and slotter machine designed for efficient corrugated fruit and pizza box manufacturing. This PLC-controlled system integrates printing, die-cutting, and slotting operations ...
Product Details
Highlight:
automatic corrugated box printing machine
,flexo printing and slotter machine
,fruit pizza box die cutting machine
Product Name:
Flexo Printing And Slotter Die Cutting Carton Box Machine
Colors:
1~5 Colors
Printing Material:
Corrugated Cardboard
Key Words:
Carton Box Making Machine
Key Selling Points:
Multi Color
Machine Voltage:
380V/220V
Slotter Knife Adjust:
PLC Control
Plate Type:
Flexo Plate Printer
Feeder Model:
Lead Edge Feeding
Style:
Vacuum Style
Feature:
Convenient Operation
Automatic Degree:
Automatic
Product Description
Flexo Printing and Slotter Machine - Automatic Corrugated Fruit Pizza Box Production
High-performance automatic flexo printing and slotter machine designed for efficient corrugated fruit and pizza box manufacturing. This PLC-controlled system integrates printing, die-cutting, and slotting operations in one streamlined process.
Technical Specifications
| Model | PLC Control High Speed Printer Diecutter |
|---|---|
| Printer Color | Multi Color |
| Machine Size | Wall Board to Wall Board Size: 2000/2200/2400/2600/2800/3000mm |
| Design Speed | 300 pieces/minute |
| Work Speed | 250 pieces/minute |
| Machine Wall Board Size | 60mm |
| Gear Thickness | 60mm |
| Max Passing Paper Size | 1200 × (1800/2000/2200/2400/2600/2800mm) for 408 diameter 1450 × (1800/2000/2200/2400/2600/2800mm) for 480 diameter 1600 × (1800/2000/2200/2400/2600/2800mm) for 530 diameter |
| Min Paper Passing Size | 420 × 860mm (for 480 diameter) 380 × 860mm (for 408 diameter) |
| Skip Paper Size | 1350 × (1800/2000/2200/2400/2600/2800mm) for 408 diameter 1600 × (1800/2000/2200/2400/2600/2800mm) for 480 diameter |
| Max Print Size | 1200/1400 × 1600 (1600/1800/2000/2200/2400/2600mm) |
| Plate Thickness | 3.2 - 7.2mm |
| Board Thickness | 3 - 12mm |
| Print & Slot Accuracy | Print: ±0.5mm / Slot Open Accuracy: ±1.5mm |
Our Service
Comprehensive support including installation, training, maintenance, and technical assistance to ensure optimal machine performance and productivity.
