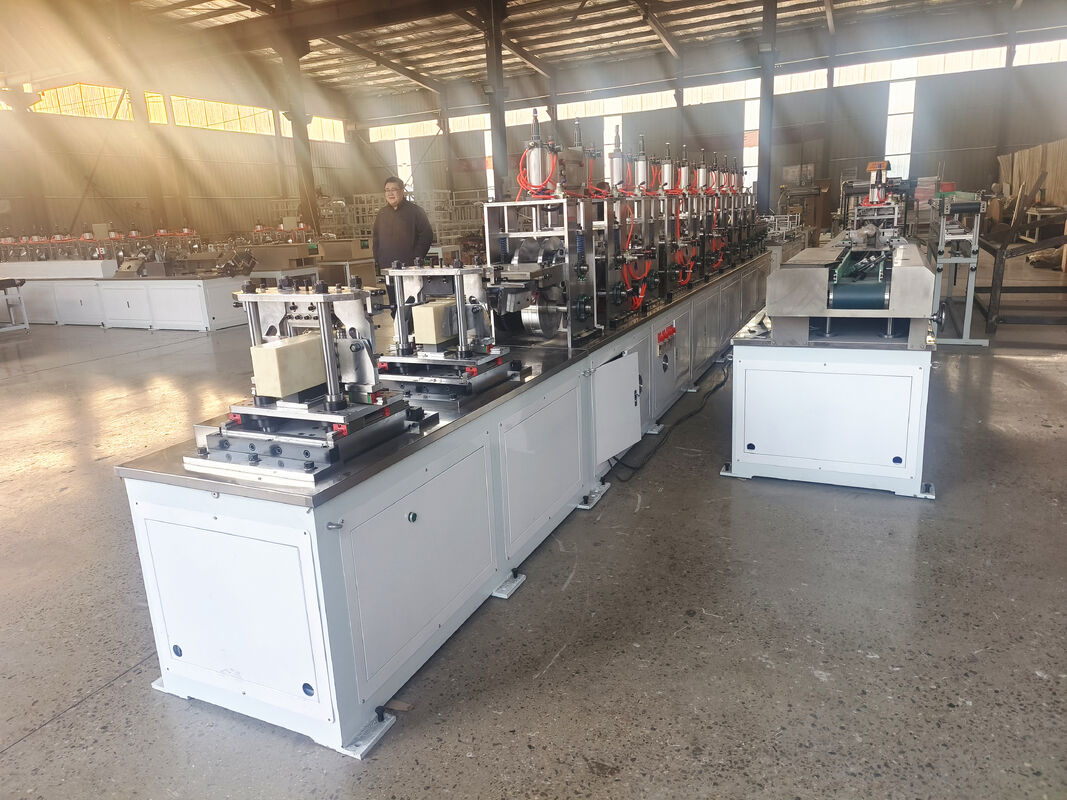

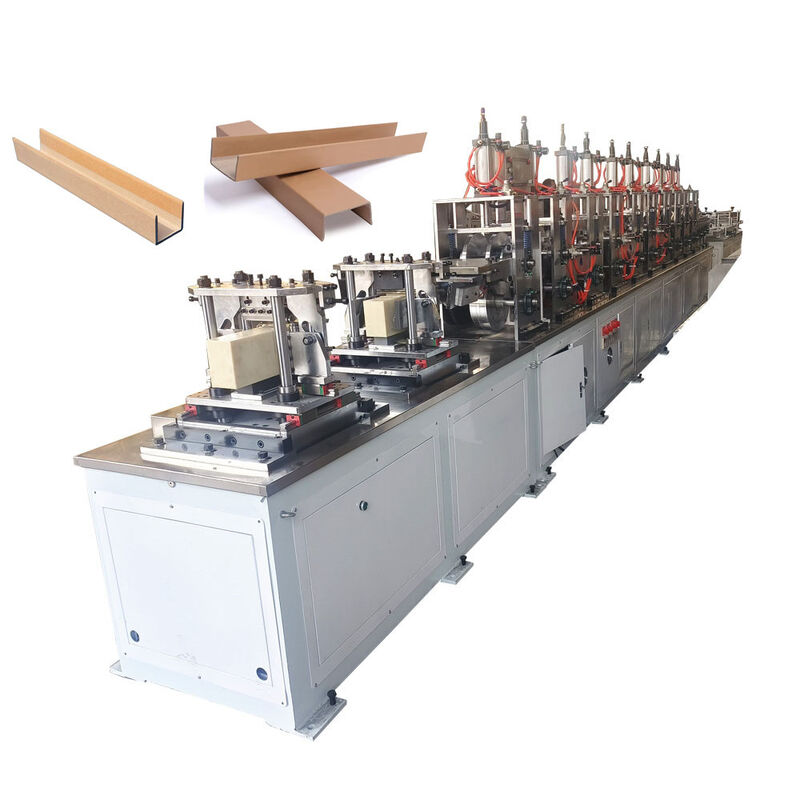

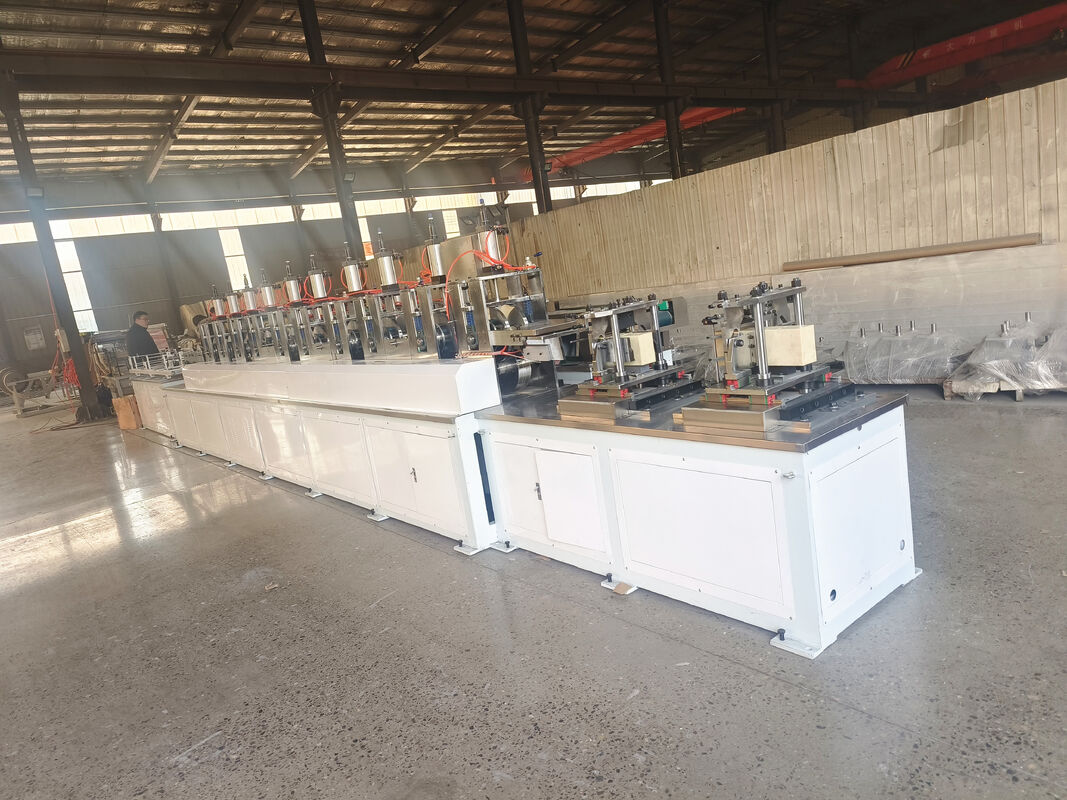

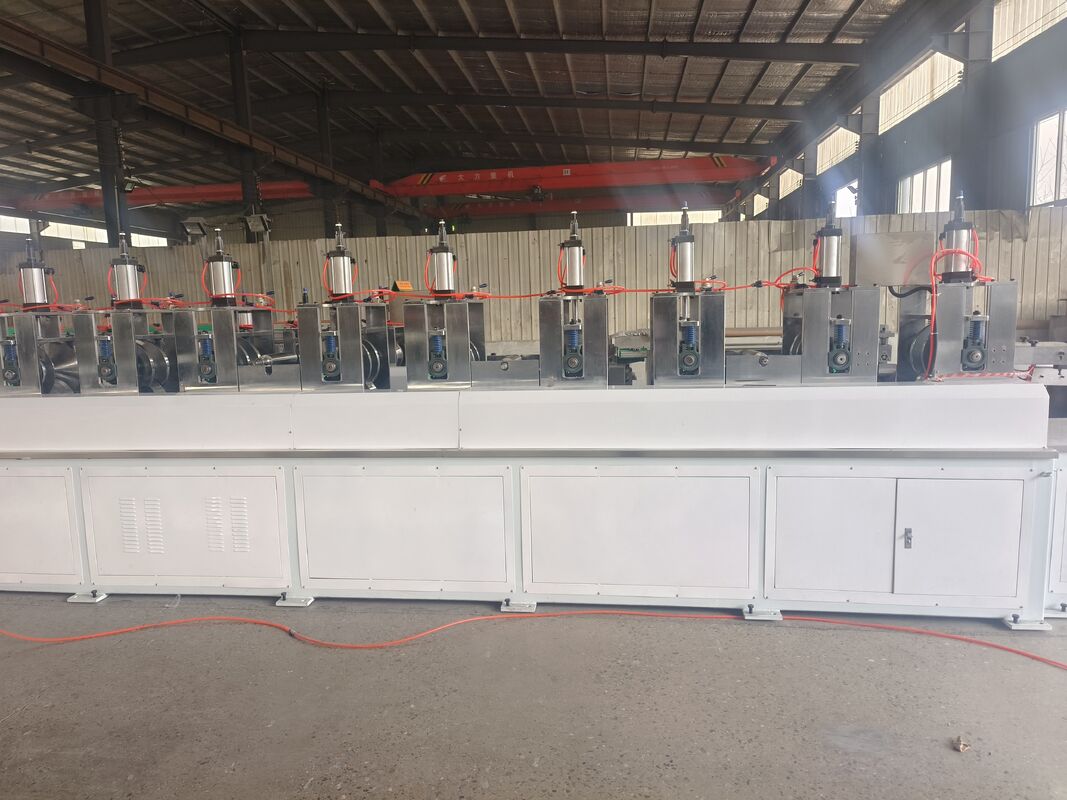

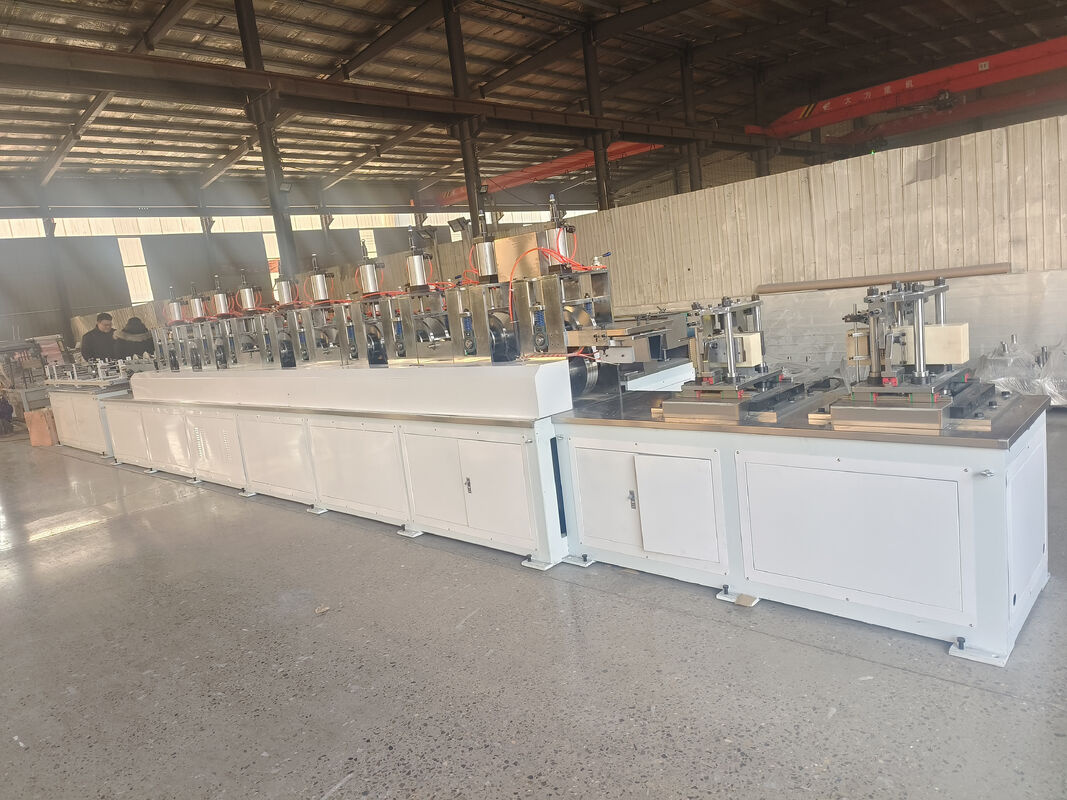

Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Basic Properties
Place of Origin:
China(Mainland)
Brand Name:
KSPACK
Certification:
CE ISO
Model Number:
KSHJJ
Trading Properties
Minimum Order Quantity:
1
Price:
19800
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Supply Ability:
30 sets per month
Product Summary
Paper U Channel Machine Professional cardboard U-shape craft paper edge protector and paper corner board making machine designed for industrial manufacturing applications. Technical Specifications Paper Angle Protection Specification Width: 20-100mmThickness × Length: 50-9000mm Production Speed 0-30 ...
Product Details
Highlight:
U channel cardboard edge protector machine
,automatic paper corner board making machine
,U shape craft paper tube machine
Type:
Paper U Channel Machine
Size:
Can Be Adjusted
Speed:
60 Meter Per Min
Video Outgoing-Inspection:
Provided
Machine Name:
U Shape Paper Corner Machine
Plc Brand:
Schneider, Delta, Siemens
Working Width:
100mm
Machine Model:
U Shaped Paper Corner Making Machine
Product Description
Paper U Channel Machine
Professional cardboard U-shape craft paper edge protector and paper corner board making machine designed for industrial manufacturing applications.
Technical Specifications
| Paper Angle Protection Specification | Width: 20-100mm Thickness × Length: 50-9000mm |
| Production Speed | 0-30 m/min |
| Host Power | 7.5kW + 4.3kW |
| Control Mode | Numerical Control |
| Raw Material | Surface Paper: 150g-200g Core Paper: 300g-700g |
| Cutting Mode | Servo Tracking Cutting |
| Number of Operators | 1-2 People |
Configuration & Equipment
- Octagonal Device: Seven Groups
- Paper Holder Type: Right Angle Fixed Hoisting Paper Holder
- Glue Supply: Stainless Steel Heating Automatic Circulation Double-Sided Gluing
- Top Paper Device: Stainless Steel, Paper Basin with Transmission
- Host Mesa: Stainless Steel
- Transmission Device: Conveyor Belt and Receiving Table
- Table Cutting Device: Numerical Control
- Application Tools: One Set of Inner Hexagonal Wrenches
Dimensions & Weight
| Host Size (L×W×H) | 5100 × 840 × 1400 mm |
| Coverage Area (L×W) | 32m × 3m |
| Host Weight | 2780 kg |
| Total Weight | 4500 kg |
