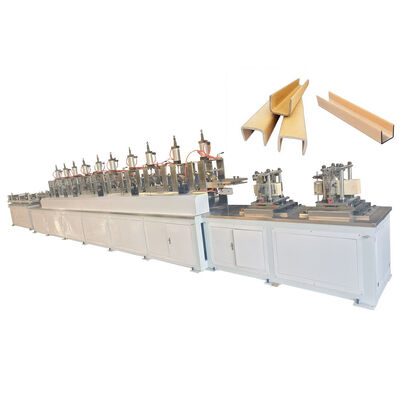

Paper U Channel Machine with 100mm Working Width 60 Meter Per Min Speed and Numerical Control for U Shape Paper Corner Board Making
Basic Properties
Place of Origin:
China(Mainland)
Brand Name:
KSPACK
Certification:
CE ISO
Model Number:
KSHJJ
Trading Properties
Minimum Order Quantity:
1
Price:
19800
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Supply Ability:
30 sets per month
Product Summary
Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine for industrial packaging applications. Technical Specifications Paper Angle Protection Specification Width: 20-100mmThickness * Length: 50-9000mm Production Speed 0-30 m/min Host Power 7.5kW + 4...
Product Details
Highlight:
100mm Working Width Paper U Channel Machine
,60 Meter Per Min Speed U Shape Paper Corner Machine
,Numerical Control Paper Corner Board Making Machine
Type:
Paper U Channel Machine
Working Width:
100mm
Plc Brand:
Schneider, Delta, Siemens
Video Outgoing-Inspection:
Provided
Machine Name:
U Shape Paper Corner Machine
Size:
Can Be Adjusted
Speed:
60 Meter Per Min
Machine Model:
U Shaped Paper Corner Making Machine
Product Description

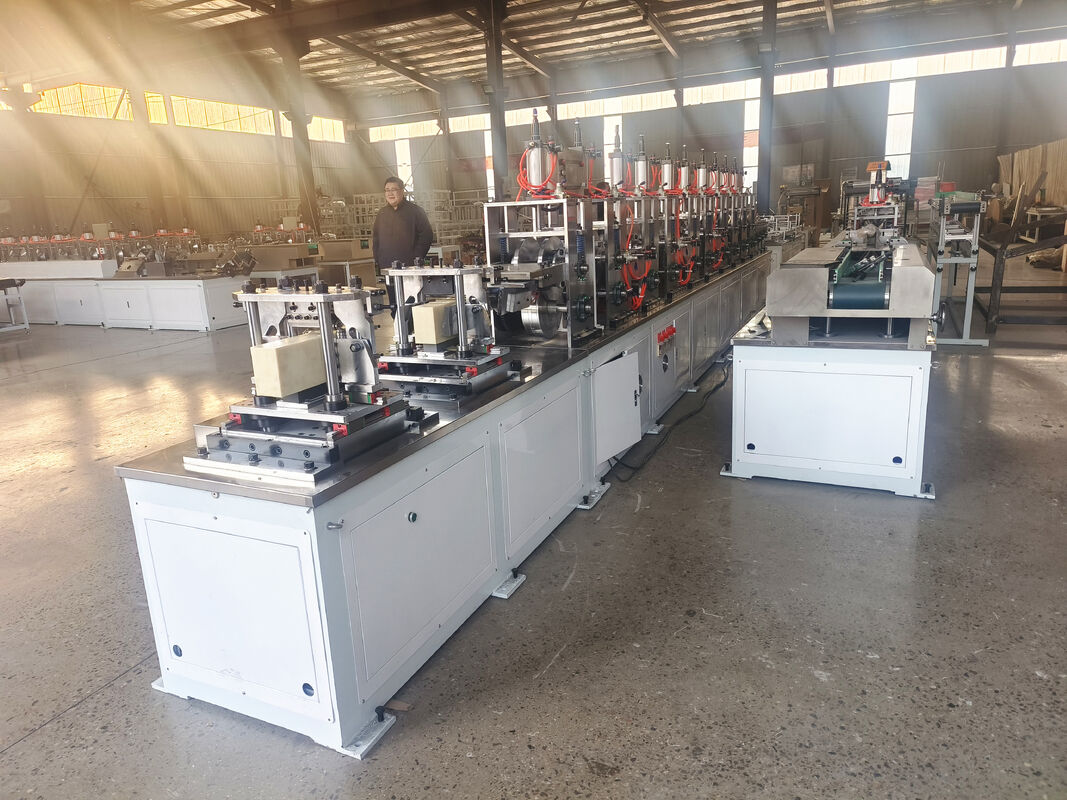

Paper U Channel Machine
Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine for industrial packaging applications.
Technical Specifications
| Paper Angle Protection Specification | Width: 20-100mm Thickness * Length: 50-9000mm |
| Production Speed | 0-30 m/min |
| Host Power | 7.5kW + 4.3kW |
| Control Mode | Numerical Control |
| Raw Material | Surface Paper: 150g-200g Core Paper: 300g-700g |
| Cutting Mode | Servo Tracking Cutting |
| Number of Operators | 1-2 People |
Configuration & Equipment
- Octagonal Device: Seven Groups
- Paper Holder Type: Right Angle Fixed Hoisting Paper Holder
- Glue Supply: Stainless Steel Heating Automatic Circulation Double-Sided Gluing
- Top Paper Device: Stainless Steel, Paper Basin with Transmission
- Host Mesa: Stainless Steel
- Transmission Device: Conveyor Belt and Receiving Table
- Table Cutting Device: Numerical Control
- Application Tools: One Set of Inner Hexagonal Wrenches
Dimensions & Weight
| Host Size (L*W*H) | 5100 * 840 * 1400 mm |
| Coverage Area (L*W) | 32m * 3m |
| Host Weight | 2780 kg |
| Total Weight | 4500 kg |
