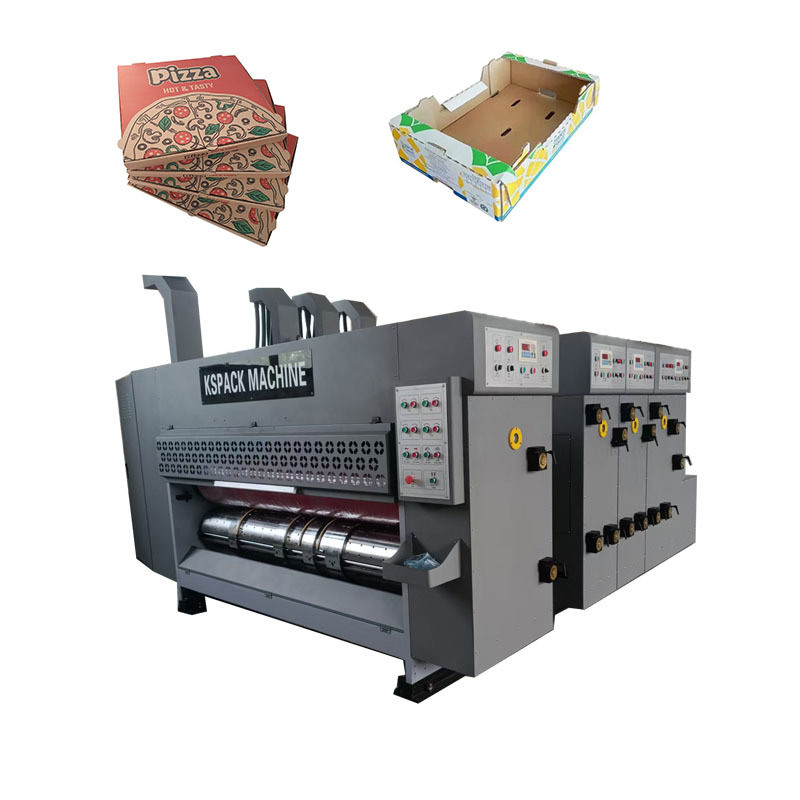

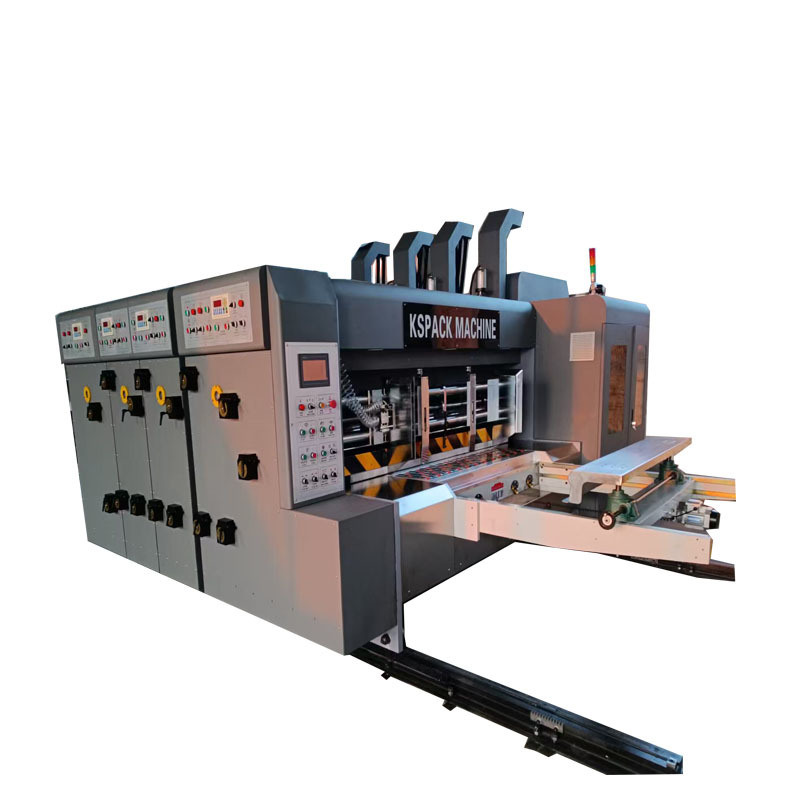

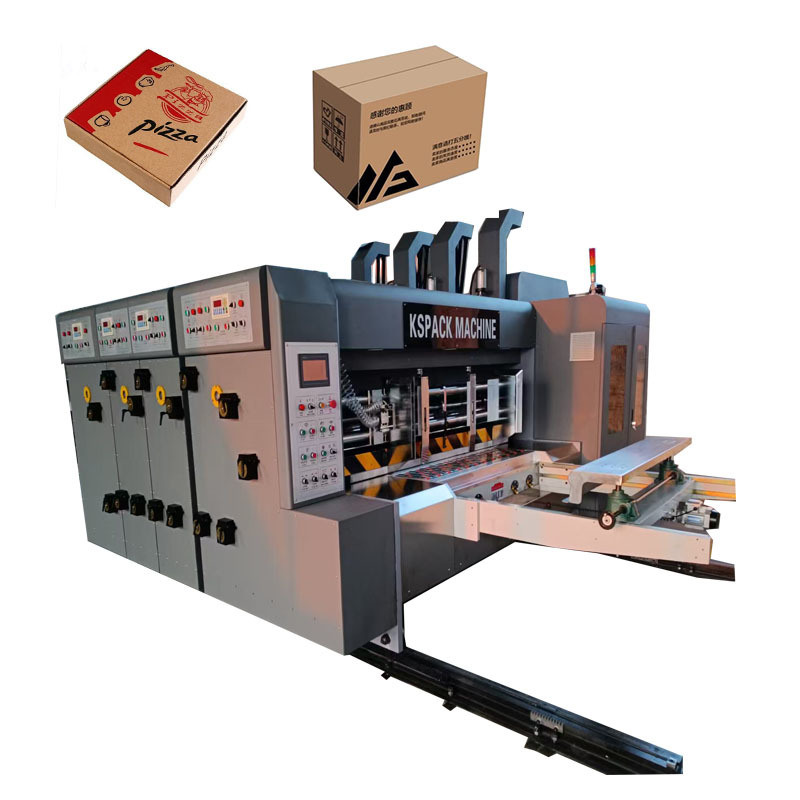

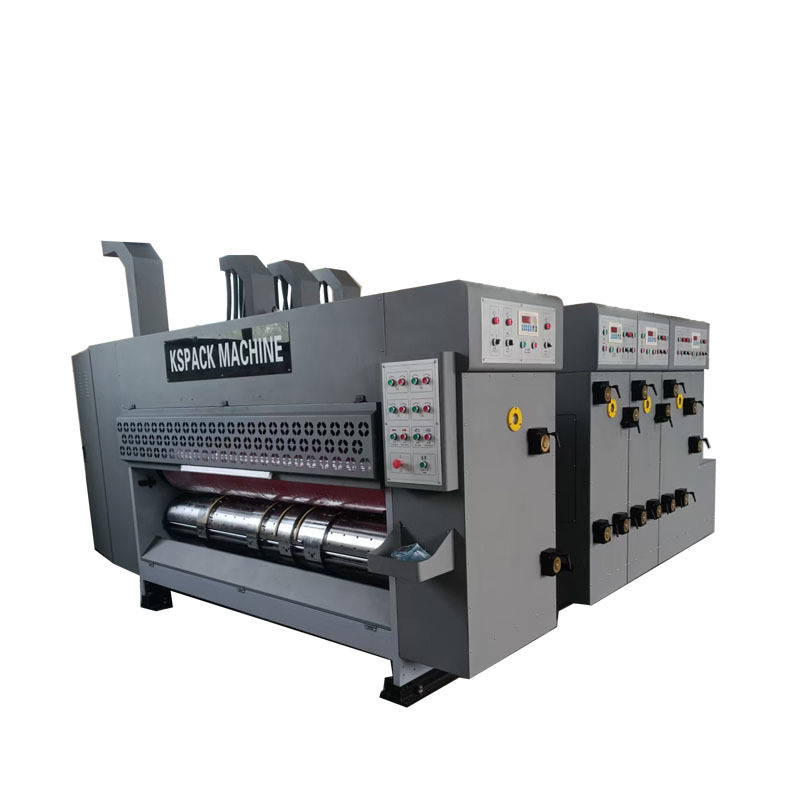

Shipping Box Making Machine Price Small Corrugated Carton Box Printing Slotting die-cutting Machine
Basic Properties
Place of Origin:
China
Brand Name:
kspack
Certification:
CE
Model Number:
KS2400
Trading Properties
Minimum Order Quantity:
1set
Price:
15000~40000USD
Payment Terms:
L/C,T/T,Western Union,
Supply Ability:
15sets/month
Product Summary
Shipping Box Making Machine Price Small Corrugated Carton Box Printing Slotting Die-cutting Machine Machine Specifications Item Unit 2200 Model Machine size mm 4000*3000*3000 (L*W*H) Wall board size mm 2200 Paperboard size mm 2000*900 Min size mm 450*220 Print size mm 1800*950 Print plate thickness ...
Product Details
Highlight:
small corrugated box making machine
,corrugated carton printing slotting machine
,die-cutting machine for shipping boxes
Product Name:
Corrugated Board Carton Box Printing Slotting Die Cutting Machine
Material:
Corrugated Board And Ink
Automatic Grade:
Full Automatic
Type:
Carton Printer Slotter
Brand Name:
KSPACK
Machine Speed:
Design Speed 120pcs/min,work Speed 80~100pcs/min
Effective Thickness:
2~12mm
Product Description
Shipping Box Making Machine Price Small Corrugated Carton Box Printing Slotting Die-cutting Machine
Machine Specifications
| Item | Unit | 2200 Model |
|---|---|---|
| Machine size | mm | 4000*3000*3000 (L*W*H) |
| Wall board size | mm | 2200 |
| Paperboard size | mm | 2000*900 |
| Min size | mm | 450*220 |
| Print size | mm | 1800*950 |
| Print plate thickness | mm | 3-8 |
| Max speed | sheets/min | 180 |
Machine Structure

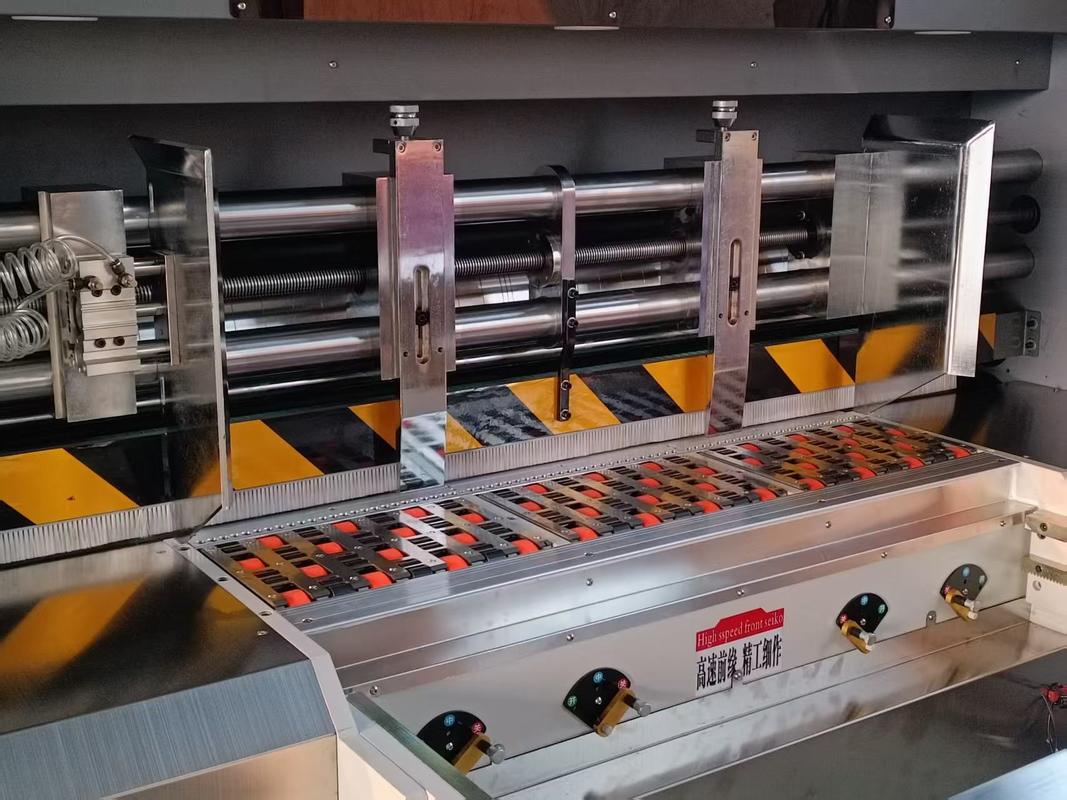

Lead Edge Feeder Part
- The outer diameter of the upper roller is φ100 mm
- High-quality seamless steel, wrapped with wear-resistant rubber, and balance correction
- The lower roller φ124mm embossed hard chrome plated, and balance correction
Printing Part
- The outer diameter is φ292mm (including the outer diameter of the plate is φ300mm)
- The surface of the steel pipe is ground and hard chrome plated
- Do balance correction, and run smoothly
- Loading and unloading the printing plate, the electric control of the foot switch is reversed
- 1-5 colour optional
Slotter Part
- The shaft diameter is φ71 mm and the surface is ground. Hard chrome plated for smooth movement
- Do balance correction, and run smoothly
- Manual adjustment of the pressure wheel gap dial, the adjustment range is 0-12mm
- Slotted tool holder traverse adjustment mechanism

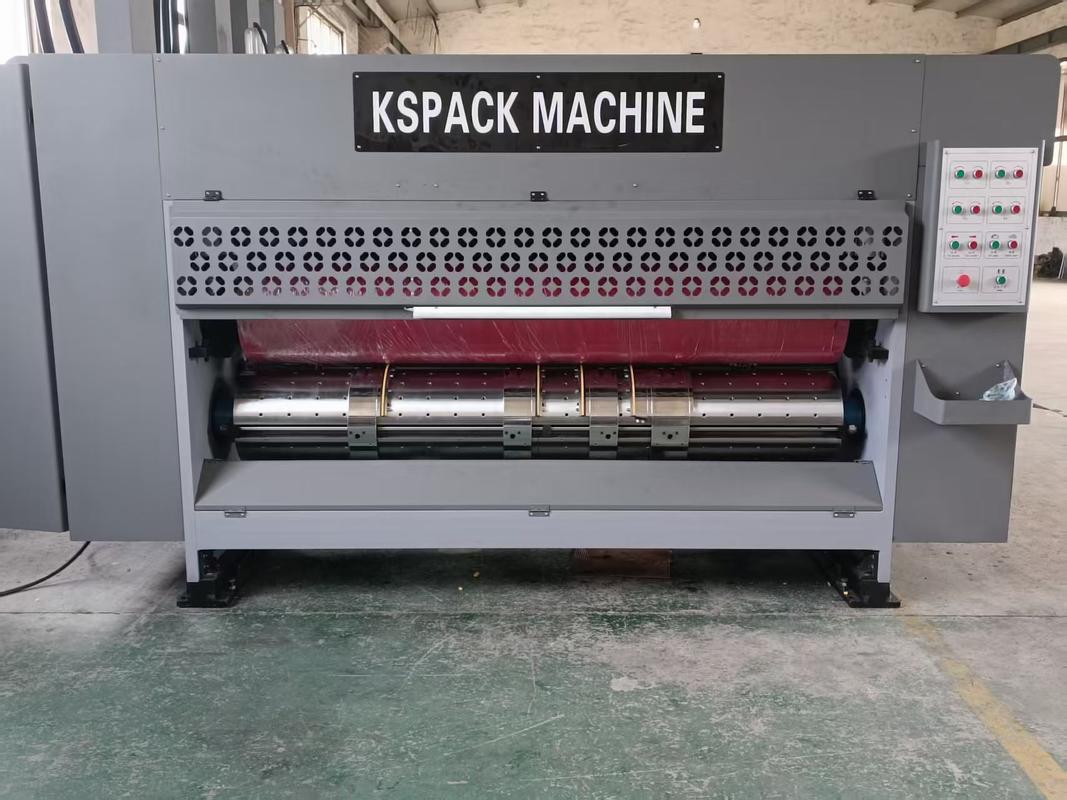

Die Cutter Part (Optional)
- The plate roll and pad roller are made of high quality steel, and the surface is polished and plated with hard chrome
- Static and dynamic balance correction, good running stability
- Pneumatically controlled die gap and automatic detachment die cutter device to protect the rubber pad and prolong the service life of the rubber pad
