Full Computerized Flexo Corrugated Box Printing Machine 4 Color Printer Slotter Die Cutter Machine

Products - Corrugated Box Printing Machine

Place of Origin

China(mainland)
Brand Name

KSpack
Certification

CE,ISO
Model Number

1600*2800
Minimum Order Quantity

1ＳＥＴ
Price

Negotiable
Packaging Details

Machine packed with plastic film
Delivery Time

30 days
Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability

30Setsper month

Full Computerized Flexo Corrugated Box Printing Machine 4 Color Printer Slotter Die Cutter Machine

Name: Full Computerized Flexo Corrugated Box Printing Machine 4 Color Printer Slotter Die Cutter Machine
Brand: Hebei Jinguang Packing Machine CO.,LTD
SKU: 1600*2800
Price: 113,400.00 USD
Availability: InStock

button button

Get Price Contact Now

Full Computerized Flexo Corrugated Box Printing Machine 4 Color Printer Slotter Die Cutter Machine

1.Corrugated carton box procedure

3/5/7 corrugated paperboard production line
Make 3/5/7 corrugated paperboard from craft paper roll

Printer slotter die cutter machine
Print color , slotter , die cutter on corrguated paperboard

Fold glue machine / stitching machine
Glue or stitching carton box

2.Full Computerized Flexo Corrugated Box Printing Machine 4 Color Printer Slotter Die Cutter Machine

Whole box making procedure have 3 part First part : 3ply 5 ply 7 ply corrugated paperboard production line , machine function is from craft paper roll to corrugated paperboard . this part we have semi auto production line and fully auto production line , but price is big different . Second part : Printer slotter die cutter . machine function is printing color , slotter and die cutter . this part we also have chain feeder type and lead edge auto feeder type Third part : Fold glue machine or stitching machine , machine function is close the carton box

Flexographic printing presses use highly fluid inks, which are transferred to the image and text of the printing plate by the ink fountain rubber roller and the anilox roller, and then the printing roller applies printing pressure to transfer the ink on the printing plate to the substrate, and finally the printing process is completed through the drying surface. Its characteristic is that the machine has a simple structure and is easy to operate.

3, Equipment Highlights

1. Equipped with a master control system, it can directly adjust phase, lateral shift, main engine, fan acceleration and deceleration, cruise control, etc. No need to adjust anywhere, reducing adjustment time and greatly improving production efficiency.

2. The host and fan are variable frequency motors, which not only save energy, but also adjust the air volume according to different cardboard materials to reduce cardboard corrugation damage.

3. Intelligent separation system, capable of achieving one click separation, saving time and improving efficiency

4.Equipped with monitoring display function, which can monitor the paper stacking situation at the rear in real time

5. Ink shortage alarm (equipped with monitoring device to monitor ink flow, avoid ink free printing, and provide advance alarm reminders)

6.Ink application monitoring (the rubber roller and mesh roller do not come into contact, so they will not apply ink to avoid non-contact ink leakage)

Phase intelligent reset (after wiping, there is no need to press a button to reset, just merge, and the computer will reset automatically

Automatic overprinting: Enter the length, width, and height of the cardboard box, press the "one click machine adjustment" button (adjust the position, blade position, rear gear, and left and right baffles at once)

9. Cardboard thickness gauge: The sensor measures the thickness of the cardboard and feeds it back to the touch screen for display. It can adjust the relevant gap based on the measured value.

4.What you should prepare when using the carton box ?

Corrugated Cardboard, Water ink, printing plates, die-cutting tools, air compressor

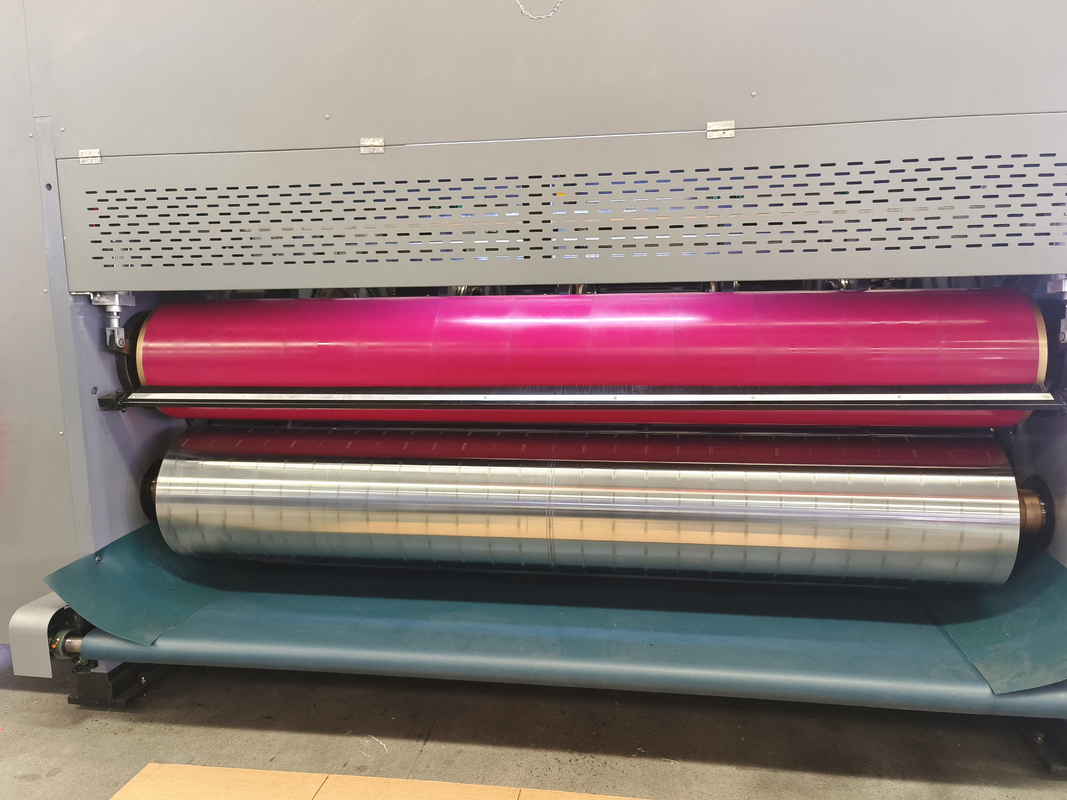

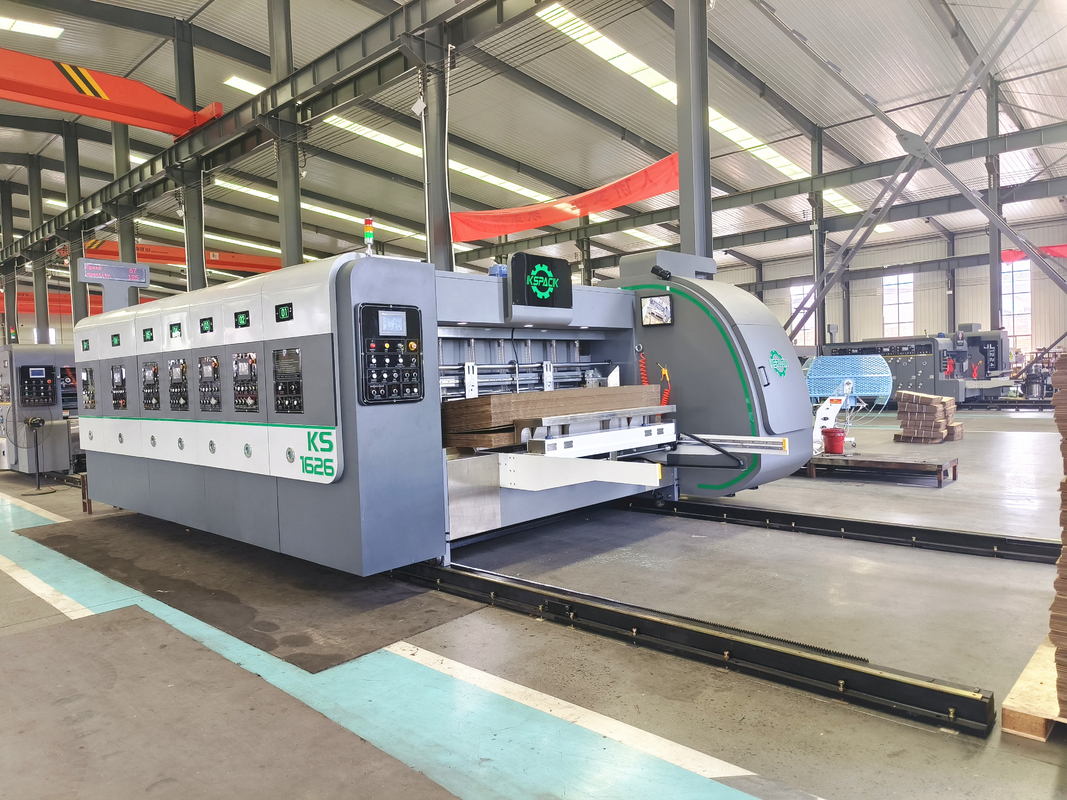

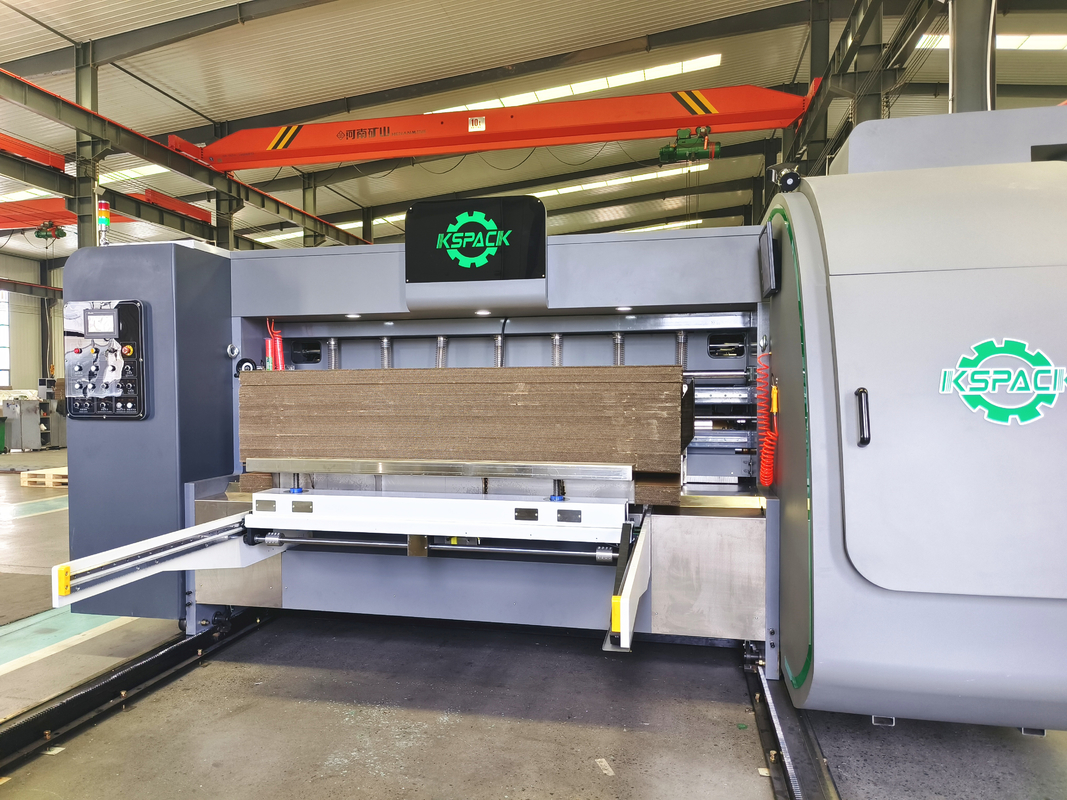

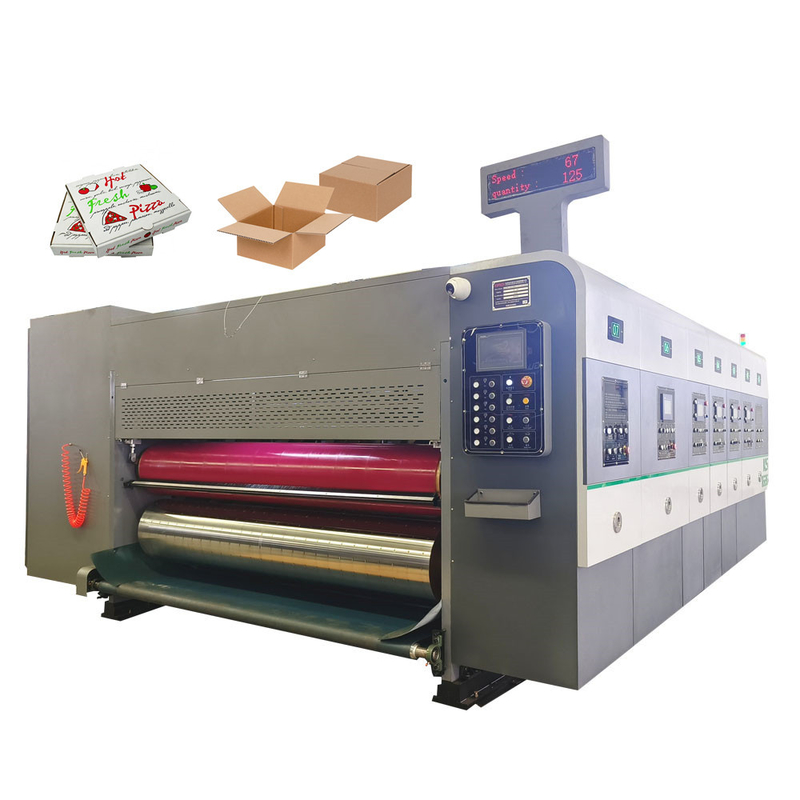

5.Carton box machine pictures
