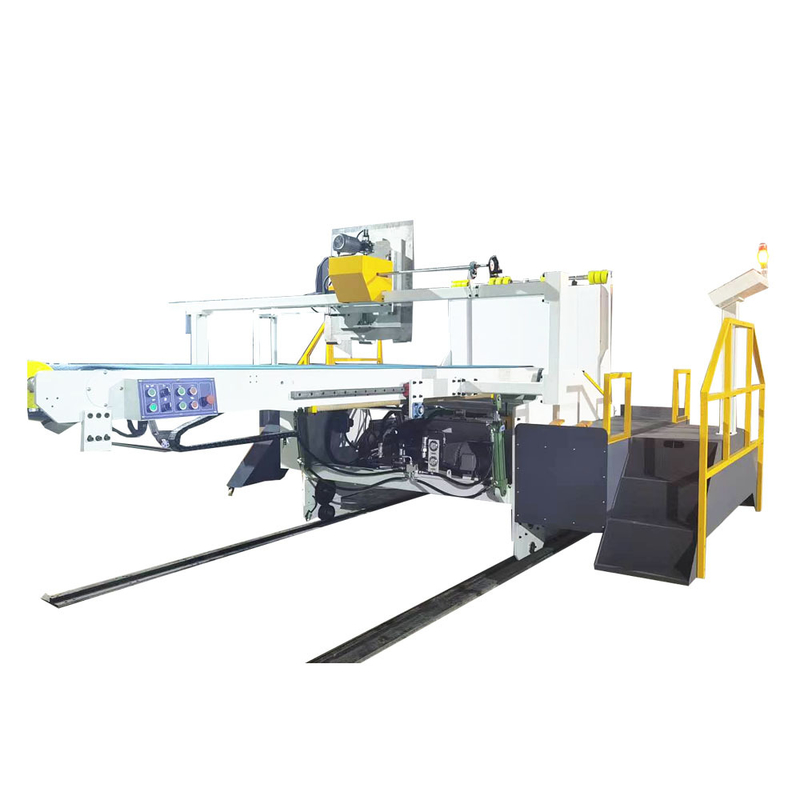

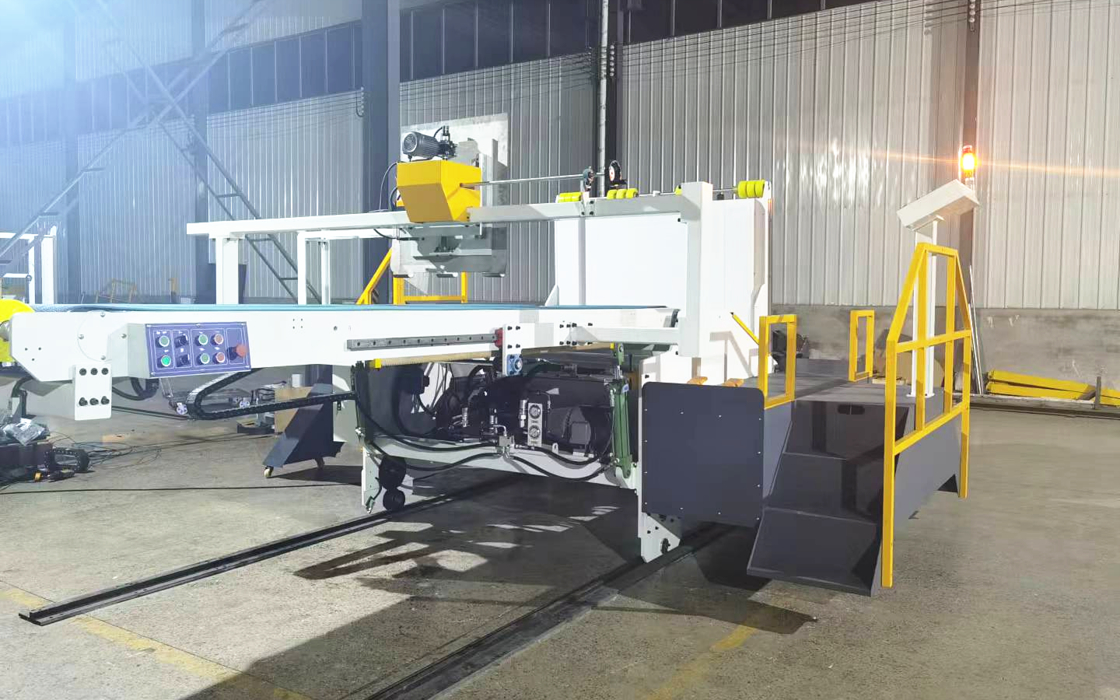

Automatic Sheet Feeder For Corrugated Cardboard Prefeeder Paper Feed Machine For Flexo Printing Machine
Basic Properties
Place of Origin:
China(mainland)
Brand Name:
KSPACK
Certification:
CE,ISO
Model Number:
KS-1600
Trading Properties
Minimum Order Quantity:
1
Price:
22000
Payment Terms:
T/T,L/C,D/A,D/P,Western Union,
Supply Ability:
30 sets
Product Summary
Automatic Sheet Feeder For Corrugated Cardboard Prefeeder Paper Feed Machine For Flexo Printing Machine 1.Maximum speed requirements for Corrugated Cardboard Automatic feeder 1.Paper loading height >1600mm or above. 2.The number of paper stacks per board should be more than 2 stacks. 3. Cardboard ...
Product Description
Automatic Sheet Feeder For Corrugated Cardboard Prefeeder Paper Feed Machine For Flexo Printing Machine
1.Maximum speed requirements for Corrugated Cardboard Automatic feeder
1.Paper loading height >1600mm or above.
2.The number of paper stacks per board should be more than 2 stacks.
3. Cardboard warpage requirements (per meter): three layers below 30mm, five layers below 20mm. d. The printing surface of the cardboard must be on the same side.
4.At least two sheets of paper must be kept waiting on the front end of the paper feeder's fork (unpowered, powered) roller.
5.The maximum speed varies depending on the operator's proficiency.
2.Hydarulic system for Corrugated Cardboard Automatic feeder
1. Fuel tank brand FQS (Taiwan Wilderness)
1. Fuel tank brand FQS (Taiwan Wilderness)
2.Hydraulic unit power 7.5HP
3. Oil pressure cooling method: air cooling
4. Hydraulic
solenoid valve brand Yuken (YUKEN, Japan)
solenoid valve brand Yuken (YUKEN, Japan)
5. Cylinder brand FQS (Taiwan Wilderness) 6. Fuel tank capacity 200L
3.Electronic control system for Corrugated Cardboard Automatic feeder
1.PLC brand Panasonic
3.Electronic control system for Corrugated Cardboard Automatic feeder
1.PLC brand Panasonic
2. Operation interface human-machine interface (touch mode)
3.Fault point indication text
4. Control component brand Schneider
5. Adjust the motor Taiwan Shengbang
6.Frequency converter Delta
7. Encoder Omron
8.Pneumatic components Airtac
4.Technical parameters for Corrugated Cardboard Automatic feeder
1. Maximum paper feeding size: 1600ⅹ2800mm
2. Minimum paper feeding size: 230ⅹ500mm
3. Maximum paper loading height: 2000mm
4. Maximum paper weight: 2000kg
5. Maximum paper feeding speed: (cardboard thickness below 4mm ≥ 300 sheets/minute) (Cardboard thickness below 8mm ≥ 200 sheets/minute)
6. One-click order arrangement and order memory functions.
7.The paper feeding conveyor belt raises/lowers the hydraulic pressure.
8. The paper pusher teeth are tilted, restored, raised and lowered using high-efficiency hydraulic pressure.
9.The printing press retreats and the paper feeder then retreats.
10.Hydraulic standby function (automatic standby beyond the set time).
11. The machine travels on new wear-resistant tracks.
12. Paper feeding belt: two wide conveyor belts.
13. Relevant parameter human-machine interface adjustment.
14. Abnormal text display can be easily eliminated quickly.
15. The fuel tank is shock-proof.
