Full Automatic Machine For Producing Insect Glue Trap Pad Cockroach Traps And Release Paper Insect Glue Board Making Machine

Full Automatic Machine for Producing Insect Glue Trap Pad Cockroach Traps and Release Paper Insect Glue Board Making Machine

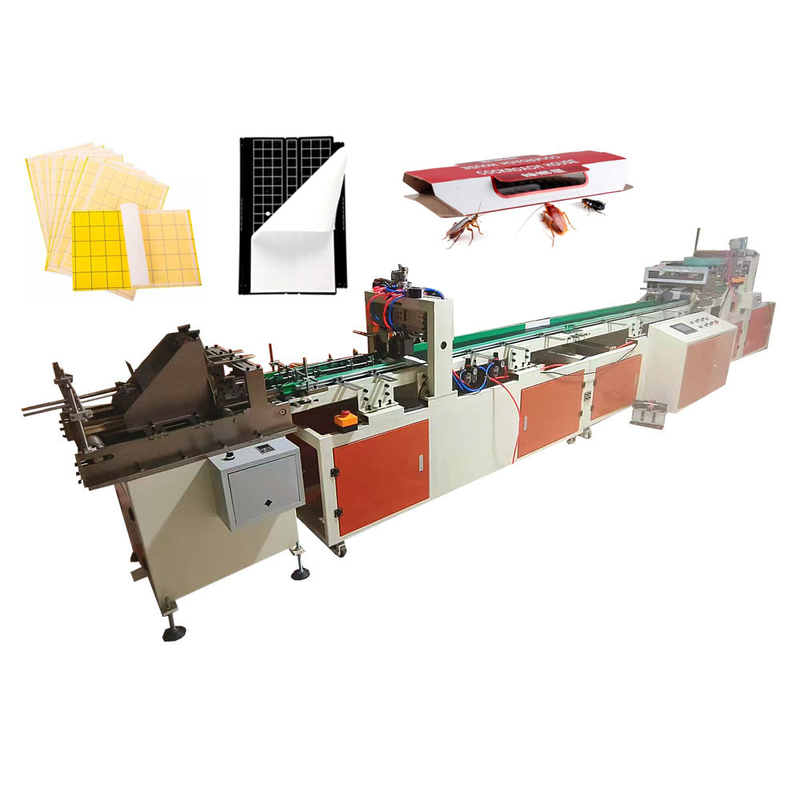

1.Machine working principle for Full Automatic Machine for Producing Insect Glue Trap Pad Cockroach Traps and Release Paper Insect Glue Board Making Machine

The whole sheet is sent out individually by the paper feeder, coated with glue by the coating glue gun, and then reached the
release paper wheel after running forward through self-cooling. When the board is detected in the fitting part, the release paper
press wheel presses out the required length of release paper, and the cutter wheel cuts off the release paper. At the same time,
the release paper overlaps with the board. The finished product is sent out through the conveyor belt of the production line. For
the production of cockroach house products, folding and compaction lines can also be added. After the product coating is
completed, the product will be transported to the folding line through the turntable for folding process, and then into the
compaction line for compaction, and then transported out by the conveyor belt of the production line. Part of the production line
includes: One operation control cabinet, A set of transmission parts of the production line, A set of rubber coated support, Fit
suction wheel and cutter a set, A set of release paper press conveyor and release paper conveyor belt, A set of release paper
correction system, A set of material roller for air expansion shaft of release paper. The gluing part is configured with: One hot
melt glue machine

2.Machine brief introduction  for Full Automatic Machine for Producing Insect Glue Trap Pad Cockroach Traps and Release Paper Insect Glue Board Making Machine

The automatic release paper equipment produced by our company is a special equipment for the production of sheet gluing and automatic bonding release paper. This equipment can produce cockroach board, armyworm board, white card sticky mouse board and other products that need to be coated with glue and then covered with release paper. The whole set of this equipment is controlled by servo motor and PLC. It is a kind of equipment with simple operation, high speed and high efficiency and precise control.

1.40kg melting machine: heating power 7.8kw, motor power 0.75kw, frequency control, size: 95cmx48cmx110cm;
2. Automatic paper feeder: motor power 0.4kw, frequency control, size: 100cmx94cmx118cm
3. Automatic gluing part: 400cm wide belt, 2 glue gun scraper assembly, heating power 0.4kw, 1.8m pipe, heating power 0.3kw, gluing part size: 330cmx100cmx120cm;
4. Automatic release paper: 500cm wide belt, small suction wheel (maximum release paper length 40cm), fan power 1.1kw, automatic deviation correction with release paper; Main motor: Panasonic MHMJ122P1E servo motor, power 1.2kw; Cutting wheel and rubber wheel motor: all are Panasonic MHMJ102P1E servo motor, power 1.0kw, servo motor drive: all are Panasonic MCDJT3230 driver; PLC model: Mitsubishi FX3U-32M; Automatic paste release paper part size: 304cmx138cmx163cm;
5. Automatic folding and compaction part: including transition conveyor belt 1 section, automatic folding machine, automatic compaction. Automatic folding and compaction part size: transition conveyor 76cmx80cmx83cm, automatic folding machine 214cmx125cmx118cm, automatic compaction 220cmx84cmx120cm

3.Notice for Full Automatic Machine for Producing Insect Glue Trap Pad Cockroach Traps and Release Paper Insect Glue Board Making Machine

A: Operation A. The melting cylinder can not be used without glue. b. The glue of the molten cylinder must be completely melted
before the machine can be turned on. c. The air pressure must reach the set value before starting. d. Stop the machine to confirm
safety before operation. e. Do not idle for heating for a long time. f. Power off for a long time.

B. Security
a. Attention should be paid to all high temperature places, including hot melt glue machine, pipe, gun body, etc. Attention should be paid to places where pressure is generated, including air compressors and gas pipes, as well as rubber pressure.
b. Attention should be paid to the places where electric shock may occur, including the main electric box, hot melt glue machine and control cabinet of the console
c. Attention should be paid to human injuries that may be caused by mechanical rotation parts, including each transmission wheel, deviation correction controller, rubber transmission wheel, cutter and main motor.
