Fully Automatic 3 5 7 Ply Corrugated Cardboard Paperboard Production Line Automatic 5ply Corrugated Carton Box Making Plant
Basic Properties
Place of Origin:
China
Brand Name:
KS Pack
Certification:
CE ISO SGS
Model Number:
1800mm
Trading Properties
Minimum Order Quantity:
1 Set
Price:
Negotiable
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,
Supply Ability:
30 set each month
Product Summary
Fully Automatic 3 5 7 Ply Corrugated Cardboard Paperboard Production Line Automatic 5ply Corrugated Carton Box Making Plant 1.Machine structure Hydraulic mill roll stand 1)Mill roll stand to loading the craft paper roll 2) Clamping paper range: maximum 2200mm minimum 700mm clamping paper diameter: ...
Product Details
Machine Name:
5ply Corrugated Carton Box Making Plant
The Line Width:
1600mm,1800mm,2000mm,2200mm, 2500mm
Finished Product:

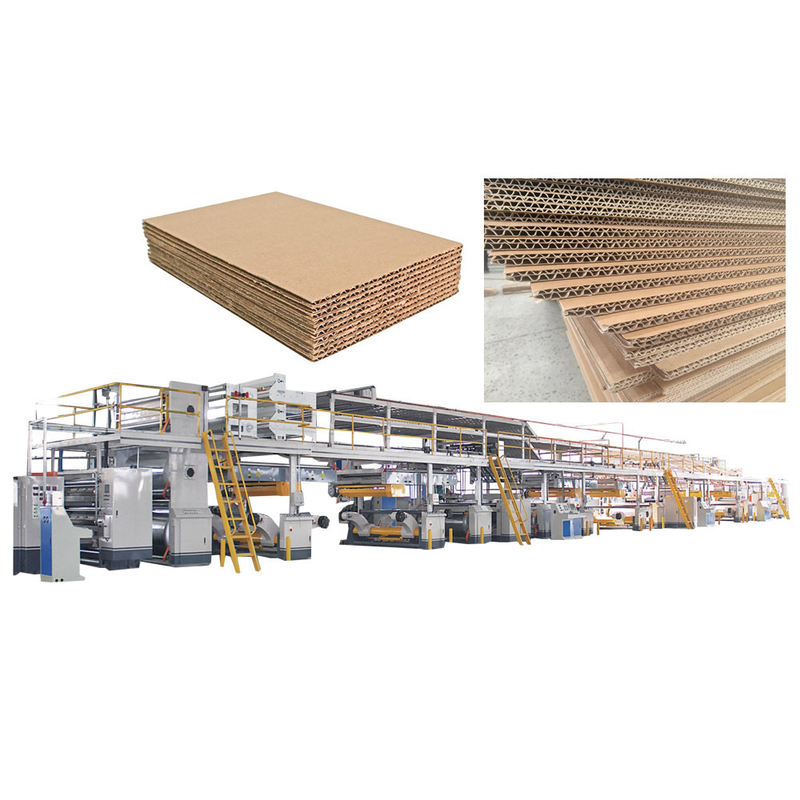

3 Ply 5 Ply And 7 Ply Corrugated Paperboard
Space Needed:
200 Meter Per Min
Machine Speed:
180pcs Per Min
Raw Mwterail Used:
Craft Paper Roll
Machine Voltage:
380V 220V 415V
Mill Roll Stand Type:
Hydraulic
Production Experience:
15 Year
Machine Operation Type:
Fully Automatically
Product Description
Fully Automatic 3 5 7 Ply Corrugated Cardboard Paperboard Production Line Automatic 5ply Corrugated Carton Box Making Plant
1.Machine structure
Hydraulic mill roll stand
1)Mill roll stand to loading the craft paper roll
2) Clamping paper range: maximum 2200mm minimum 700mm clamping paper diameter: maximum ￠1500mm minimum ￠350mm 3)paper spindle diameter: ￠242mm air source working pressure (Mpa) : 0.4-- 0.8mpa
Pre heater
1)Working width: 2200mm
2) preheating roller diameter: ￠900mm wrapping Angle adjustment range: 360° rotating wrapping Angle axis diameter: ￠110mm×2 3)steam temperature: 150-180℃ steam pressure: 0.8-1.3mpa 4) Motor power: 370W Short-time (S2) working system
Single facer machine
1)Main corrugated roller: ￠380mm (according to different corrugated type and different), pressure roller ￠384mm, preheating roller ￠400mm. 2) Corrugated roller is treated by spraying tungsten carbide.
heavy duty conveying over the bridge
1)The main skeleton of this part is made of channel steel, I-steel, Angle steel and so on.
2) Both sides are equipped with safety guardrail and safety hermitage pedal, operation surface is equipped with safety escalator, to ensure the safety of staff and easy operation.
Double side machine
The frame is made of 360 mm gb channel steel, 600 mm *16 chrome-plated hot plates, and 10 groups of contact plates. Pneumatic lift. PLC automatic control platen. Automatic deviation correction, temperature display, frequency conversion motor.
NC computer thin knife longitudinal indentation machine
Synchronous servo motor control knife row, row. Automatic reset. Precise size. Change order time 3-8 seconds. Two machines can be used to change the order immediately without slowing down. Store 999 groups of orders to realize automatic or manual change without shutdown.
2. Brief introduction

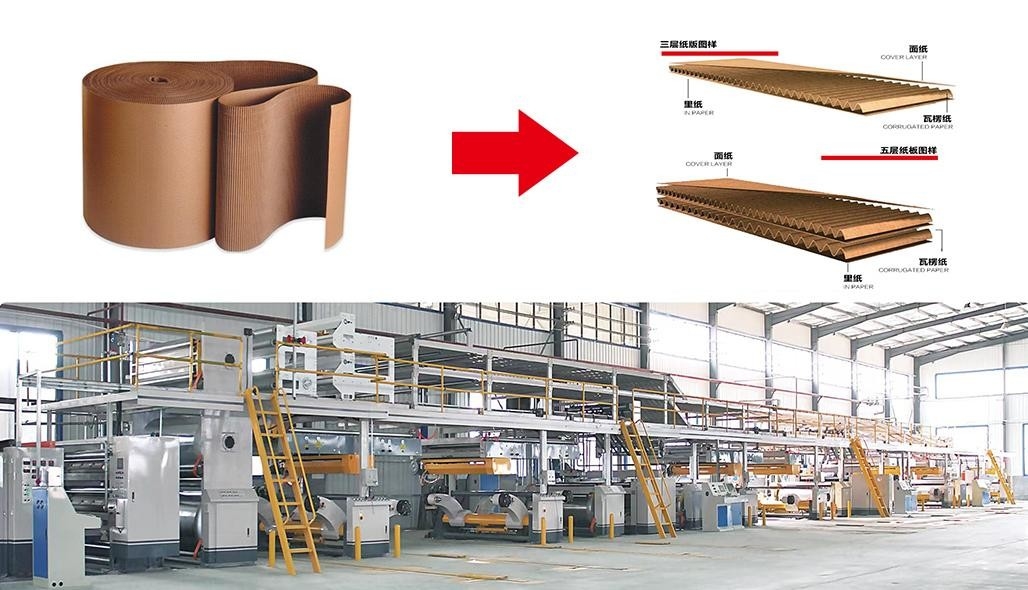

Raw material is craft paper roll , finished product is 3ply 5 ply 7 ply corrugated paperboard .
7 ply corrugated paperboard making production line can make 7 ply , 5 ply and 3 ply
5 ply corrugated paperboard making production line can make 5 ply and 3 ply
3 ply corrugated paperboard making production line can make 3 ply
Size we can make 1400mm,1600mm,1800mm,2000mm,2200mm,2500mm , tell us the speed you want , then we can recommend you suitable production line accordingly
The corrugated cardboard production line, also known as the corrugated line, is a key production equipment for corrugated box manufacturers. It is mainly used to process roll base paper into corrugated cardboard. The corrugated cardboard production line consists of wet end equipment and dry end equipment, as well as important parts such as the production management system.
Complete corrugated paperboard production line is compose of shaftless mill roll stand,fingerless type single facer
(vacuum suction type). preheater,double bridge,gluer machine,double facer machine,cut off machine,slitter scorer machine,stacker and glue making system. Our company to absorb advanced technology from other countries,we get feed back from our users and on the base of our experience more years for develop the new production. The feature of our machine;high automatization,easy operation&maintenance,high efficiency,good quality of paperboarf,compact structure and nice appearance
Working principle The working principle of the corrugated cardboard production line is to preheat the roll base paper, press the corrugation, glue, bond and shape, separate the paper and press the line, cut it into standard cardboard, and finally stack it for output. The specific process includes: The base paper is sent to the production line through the paper support and automatic paper splicer, and is preheated by the preheating pre-adjuster. The paper enters the single-sided corrugated machine and is pressed by the corrugated roller to form a corrugated shape. The glue coating machine evenly applies glue between the corrugated paper and the face paper, and bonds them together through the double-sided machine to form corrugated cardboard. The corrugated cardboard processed by the wet end equipment is sent to the dry end equipment for cutting, creasing, cross-cutting and stacking.
3. Customer provided part
| Customer provided part |
| 1, steam heating system: recommended with 4000Kg/Hr steam boiler a set of pressure for 1.25mpa steam pipe. |
| 2. Air compressor, air pipe, glue conveying pipe. |
| 3. Power supply and wire are connected to the operating cabinet and line pipes. |
| 4, water sources, water pipelines, buckets, etc. |
| 5, water, electricity, gas foundation plane installation civil engineering. |
| 6, test paper, corn (potato) starch, industrial caustic soda, borax and other materials. |
| 7, equipment oil, lubricating oil, hydraulic oil, grease. |
| 8. Food and accommodation for installation and commissioning personnel. And provide installation workers to cooperate with the installation. |
