Full Automatic Corrugated Paperboard Flute Laminating Machine For Corrugated Carton

Basic Properties

Place of Origin: Hebei Province, China

Brand Name: kspack

Certification: CE ISO

Model Number: TMB

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

Payment Terms: L/C, T/T, Western Union,

Supply Ability: 10 set per month

automatic flute laminating machine

2025 Full Automatic Corrugated Paperboard Flute Laminating Machine For Corrugated Carton 1.features for automatic Corrugated Paperboard Flute Laminating Machine (1)The machine adopts unique pressure spring front gauge design, which effectively reduces mechanical failure rate and ensures accurate ...

Product Details

Highlight:

Corrugated Paperboard Flute Laminating Machine

,

Full Automatic Flute Laminating Machine

,

Flute Laminating Machine For Corrugated Carton

Name: Automatic Corrugated Paperboard Flute Laminating Machine

Max Laminator Size: 1300mm*1100mm

Min Laminator Size: 360mm*360mm

Machine Size: 8.8m*1.95m*1.5m

Staff: More Than 100

Design: Modern

Classification: Post-Coating Laminating Machine

Max Mechanical Speed: 6000Sheet / H

Cardboard: 3 Ply And 5 Ply

Feature: Electricity Saving

Product Description

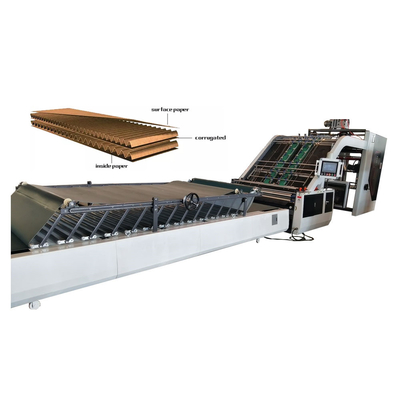

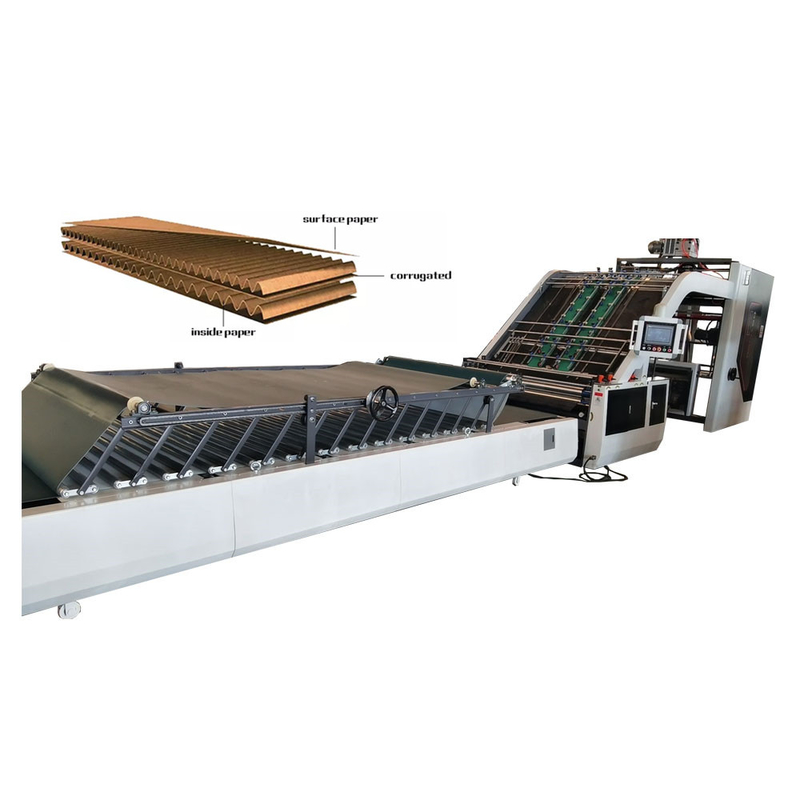

2025 Full Automatic Corrugated Paperboard Flute Laminating Machine For Corrugated Carton

1.features for automatic Corrugated Paperboard Flute Laminating Machine

(1)The machine adopts unique pressure spring front gauge design, which effectively reduces mechanical failure rate and ensures accurate positioning with intelligent control.

(2)The machine adopts frequency conversion to regulate speed. PLC centralized control, module conversion, operation control standard.

(3)Double servo control is adopted to realize the timeliness and accuracy of the base paper to the front gauge, so as to ensure the accuracy of the machine under the operating condition .

(4)After balancing treatment and testing, the steel roller, coupled with the tightening assembly process, effectively improves the mechanical stability. In addition, when the main transmission is driven by the timing belt, the bottom paper part directly absorbs the air and delivers the paper,effectively improving the operating accuracy and speed of the machine.

(5)Adopt the page control system to automatically recycle the glue, which greatly reduces the labor intensity.

(6)The machine adopts all ISO9001 standard inspection of materials, with high quality and solid durability. Key parts such as bearings are imported.

(7)Independently develop a powerful FEIDA paper with precoded paper device to reduce downtime and improve work efficiency.

(8)The machine is suitable for 150-450gsm paper, A B C D E F wave and three and five layers cardboard (the maximum thickness is less than 10mm).

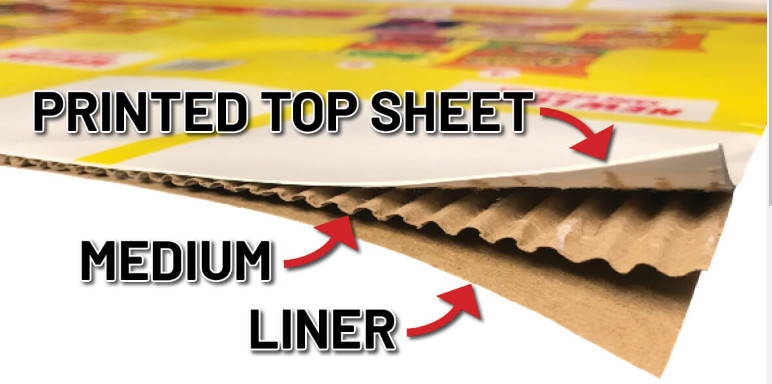

2.suitable for lamination of corrugated paperboard to cardboard ,and cardboard to cardboard.automatic feeding bottom sheet paperboard and face paperbaord

stm series automatic flute laminator specifications

model items	unit	kstm- 1100	kstm- 1300	kstm- 1450	kstm-1600
maximum paper size(w×l)	mm	1100×1100	1300×1100	1450×1100	1600×1400
minimum paper size(w×l)	mm	350×350	350×350	350 x 350	450×450
laminating precision	mm	≤±1.5	≤±1.5	≤±1.5	≤±1.5
speed	s/min.	100	100	100	100
total power	kw	12	12	12	13
length	m	11.5	12.5	12.5	15
