Bottom Print 4 Color Corrugated Boxes Production Line Carton Box Packing Machine Corrugated Box Slotter Die Cut Machine
Product Details
Corrugated Box Slotter Die Cut Machine
,4 Color Corrugated Boxes Production Line
,Bottom Print Corrugated Boxes Production Line

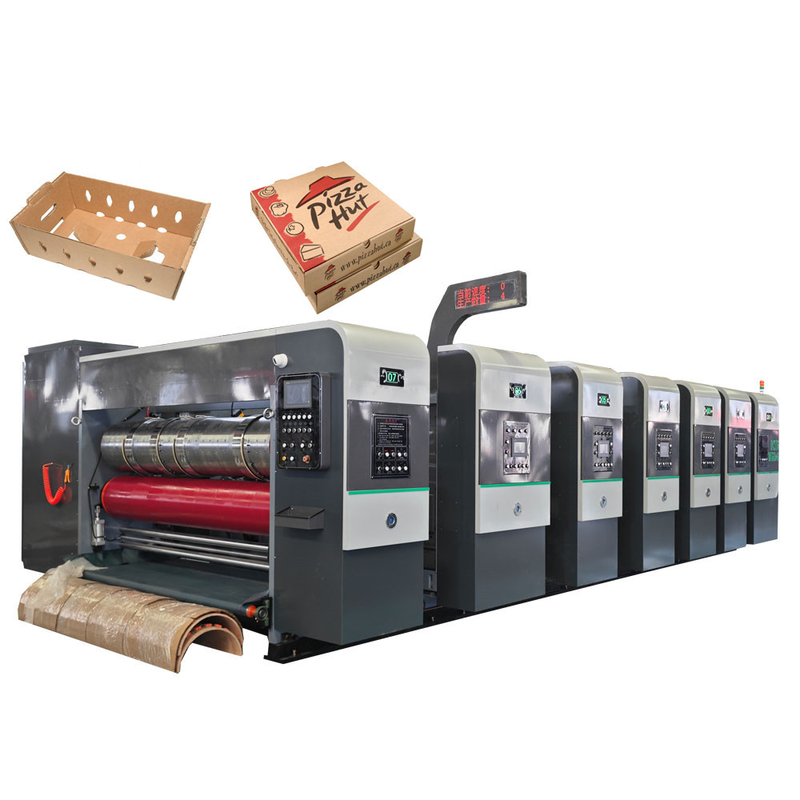

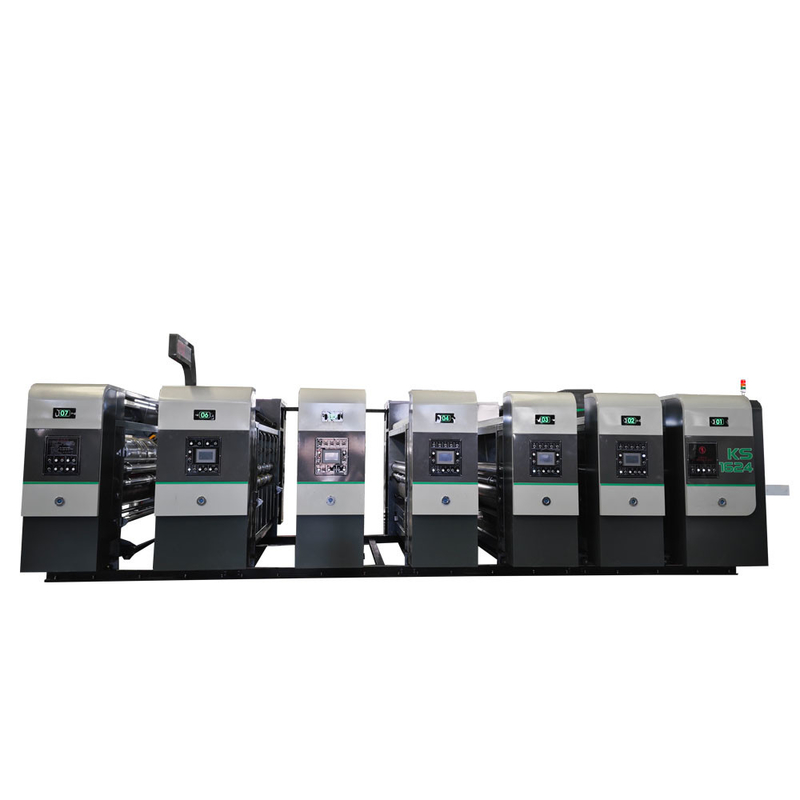

Bottom Print 4 Color Corrugated Boxes Production Line Carton Box Packing Machine Corrugated Box Slotter Die Cut Machine
1.What you should prepare when using the carton box ?
Corrugated Cardboard, Water ink, printing plates, die-cutting tools, air compressor
2.Machine structure
1) Lead edge feeder part
【1】electric control machine from the alarm bell, continuous ringing warning, to ensure the safety of workers.
【2】drive shaft with friction clutch, to avoid misuse and damage to the machine.
【3】pneumatic interlock device.
【4】The host motor starts the protection device. (The machine is not locked, the host can not start running)
2)Print unit
1] diameter of ¢ 213.7mm.
【2】steel surface grinding, repression reticulate, hard chrome plating.
【3】 alance correction, smooth operation.
【4】mesh number is ,200-280 lines / inch selection. Option ceramic roller 300line/inch (need to paid)
【5】 with the feed system pneumatic automatic lifting device. (When feed paper pr the anilox roller is lowered and touched with print plate ,stop feed paper
anilox roll is up and the plate is separated)
【6】 Anilox roller with wedge-type clutch, even ink, easy to clean ink.
【7】 rubber roller diameter ¢ 186 mm.option the doctor blade system
【8】 steel pipe surface wrapped with wear-resistant rubber, and do the balance correction.
【9】 rubber in the special high grinding, ink transfer effect is good. Quick clearance fine-tuning self-locking device to ensure uniform ink. The amount of uniform ink system, the conversion effect is good, to extend the life of rubber roller.
3)Slotter unit
Upper shaft
[1] Up slot knife shaft diameter 176mm , knives seat diameter 525mm
[2] Crease roller shaft diameter 110mm , crease wheel diameter 180mm
[3] The lower cutter shaft diameter is 156mm, and the lower cutter diameter is 280mm.
[4] The lateral movement of the cutter head and the pressure roller is synchronous electric adjustment.
[5] Each slotted tool holder is traversed with anti-collision protection device.
[6]Slot knives width 7mm use ally steel material after heat treatment ,grinding , teeth model knives ,slot knives thickness 7 mm
[7] The knife and crease wheel lateral movement used electrical control .It adopts PLC touch screen adjust , input the box size and automatic adjust
Cutter roll (lower roll)
[1] The outer diameter is ￠487mm (without die).
[2] The surface of the cast iron material is ground, hard chrome plated, balance correction, increase the running stability.
[3] The distance between the screw holes of the knife mold is 100mm in the axial direction and 18 equally in the radial direction. Applicable cutter height is 25.4mm.
[4] Thickness of wood template: 16mm (for three-layer cardboard) 13 mm (for five-layer cardboard)
Rubber pad roller (upper roller)
[1] The outer diameter is ￠434.2mm, and the rubber pad size is ￠450.
[2] Quick-change rubber pad, wear-resistant and long life.
[3] The surface of the cast iron material is ground and hard chrome plated.
[4] Balance correction, increase the running stability.
[5] The thickness of the rubber pad is 9m. Width 250mm. Mechanical type horizontal 40mm swimming device. (Adjustable swimming speed)
| 3/5/7 corrugated paperboard production line | Make 3/5/7 corrugated paperboard from craft paper roll |
| Printer slotter die cutter machine | Print color , slotter , die cutter on corrguated paperboard |
| Fold glue machine / stitching machine | Glue or stitching carton box |
-
