1.Electric control machine from the alarm bell, continuous ringing warning, to ensure the safety of workers
2.Drive shaft with friction clutch, to avoid misuse and damage to the machine.
3.Pneumatic interlock device.
4.The host motor starts the protection device. (The machine is not locked, the host can not start running)
Automatic Corrugated Carton Box Flexo Printer Slotter Die Cutter For Corrugated Carton Box Pizza Box Machines
Basic Properties
Place of Origin:
Hebei China
Brand Name:
KSPACK
Certification:
CE
Model Number:
1400x2800
Trading Properties
Minimum Order Quantity:
1set
Price:
USD29800~USD32500/set
Payment Terms:
L/C, D/A, D/P, T/T, Western Union,
Supply Ability:
5sets/month
Product Summary
automatic corrugated carton box flexo printer slotter die cutter for corrugated carton box pizza box machines It is a high-efficiency high-speed printing machine with slotting die-cutting unit as an option. The whole machine adopts PLC control, which can adjust the machine efficiently and accurately ...
Product Details
Highlight:
automatic flexo printer slotter die cutter
,Corrugated Flexo Printer Slotter Die Cutter
,Carton Flexo Printer Slotter Die Cutter
Product Description

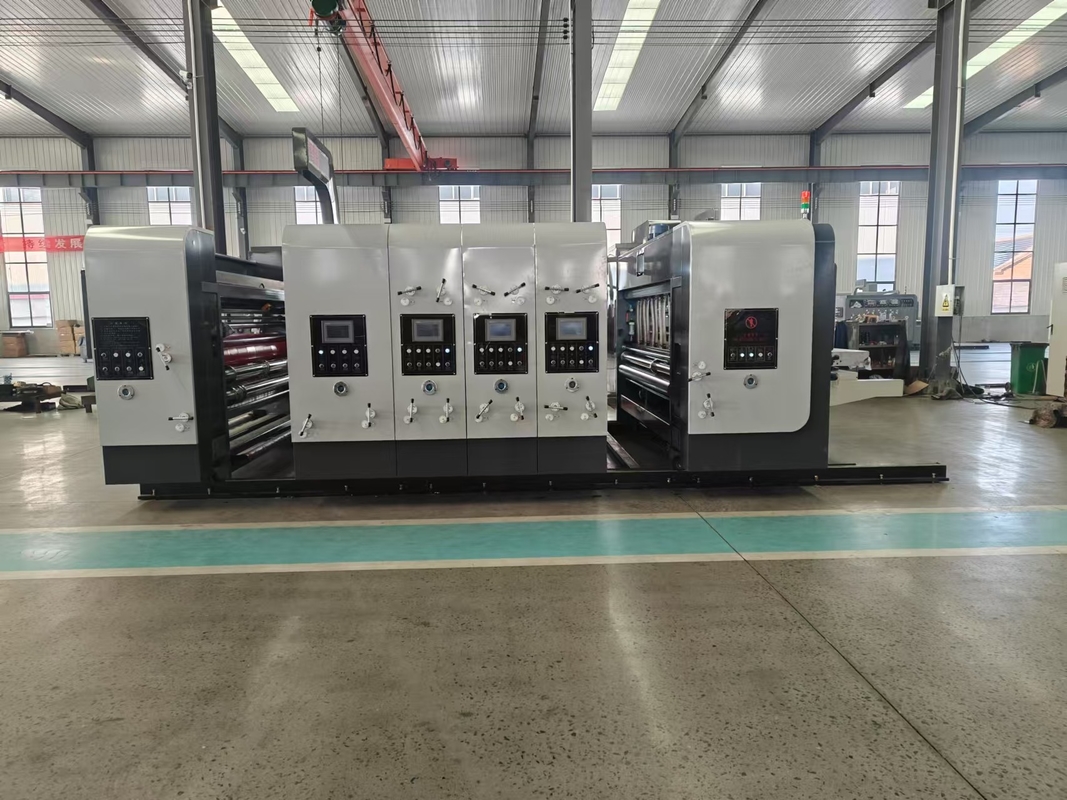

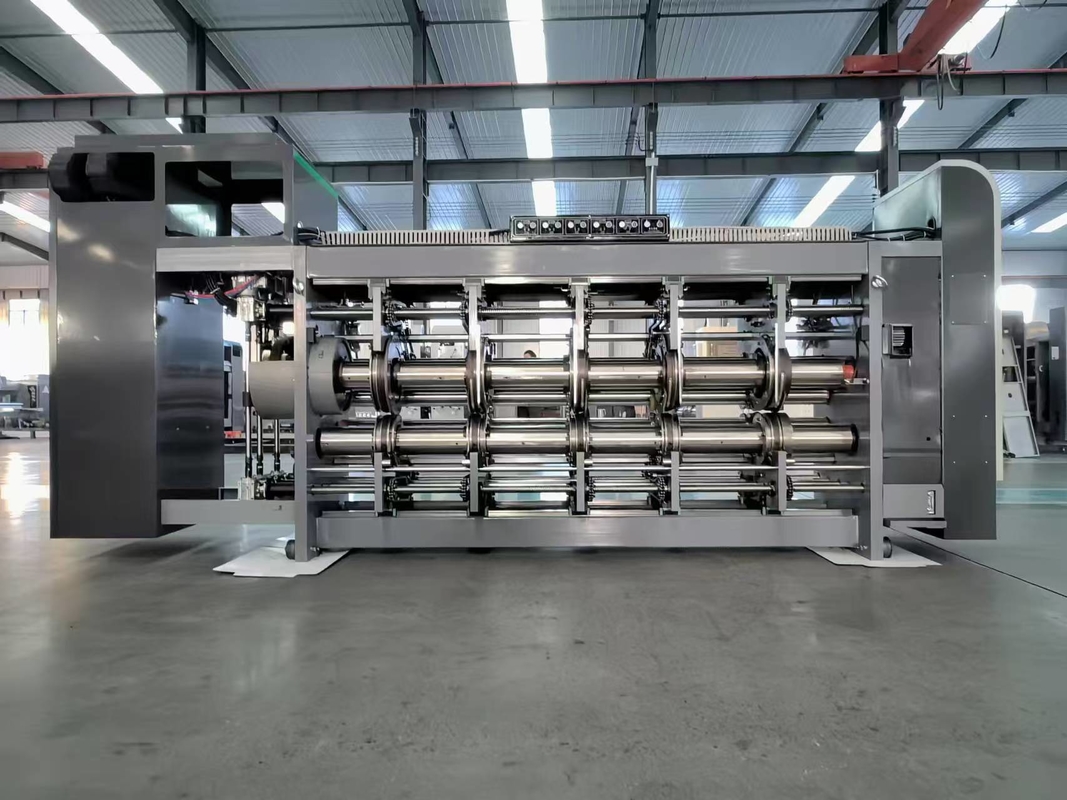

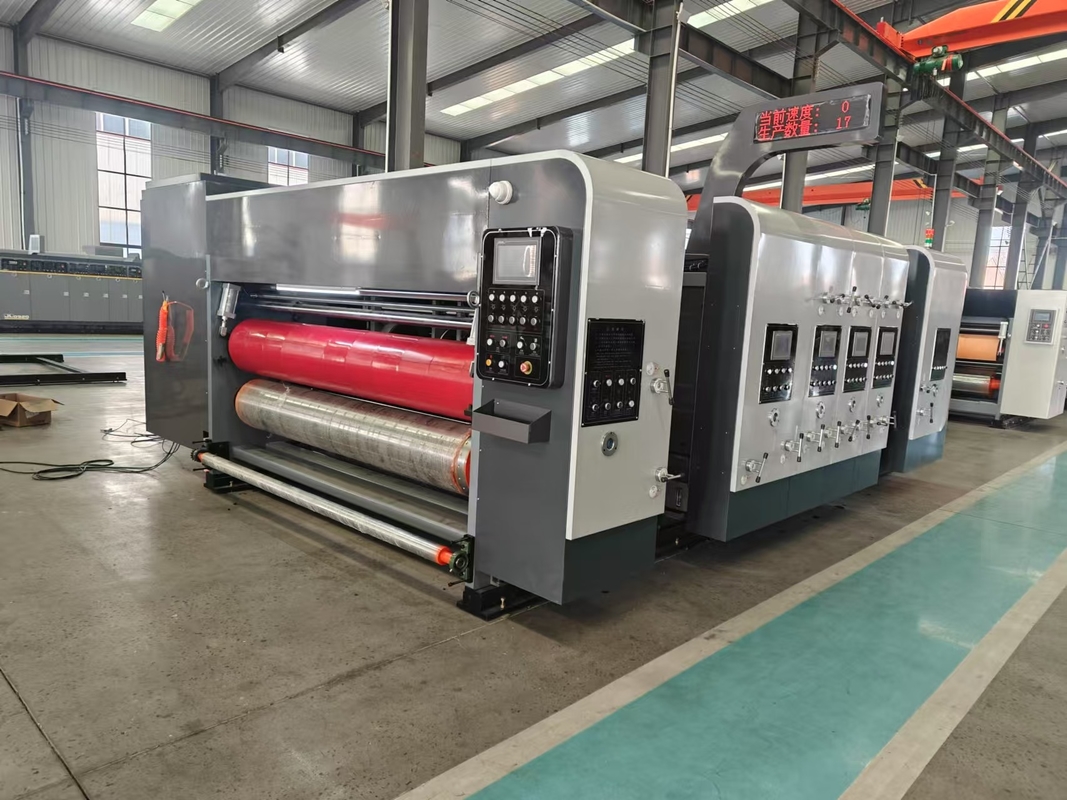

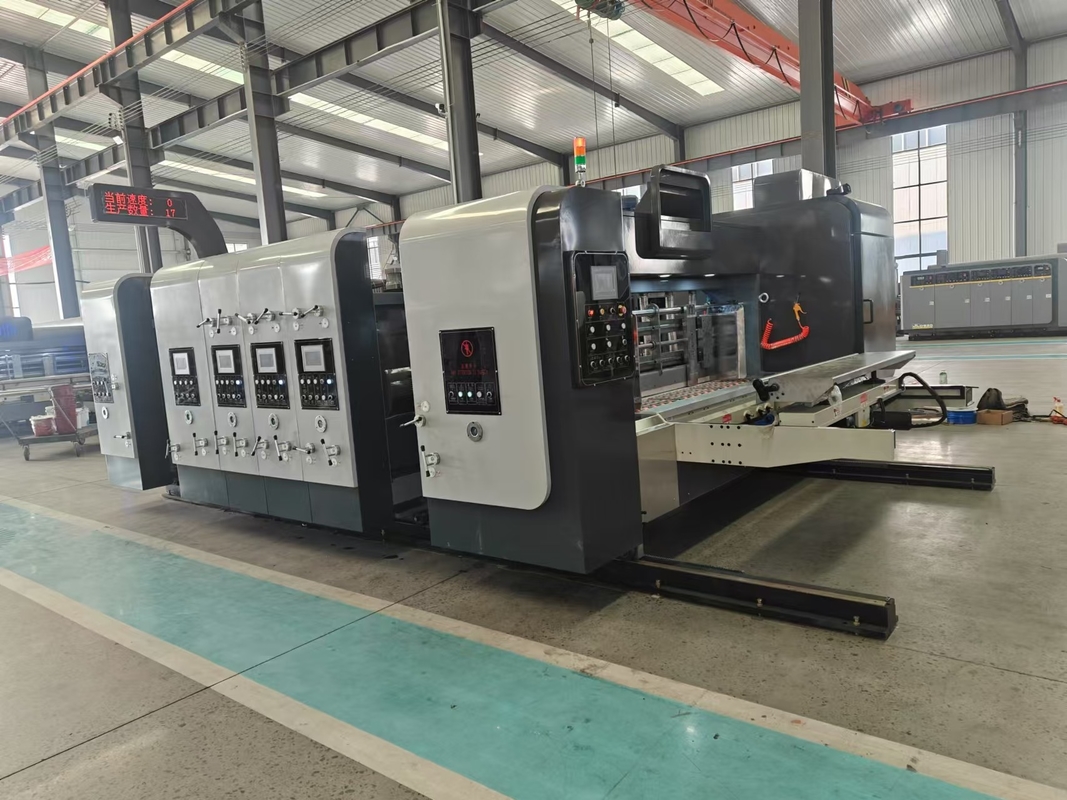

automatic corrugated carton box flexo printer slotter die cutter for corrugated carton box pizza box machines
It is a high-efficiency high-speed printing machine with slotting die-cutting unit as an option. The whole machine adopts PLC control, which can adjust the machine efficiently and accurately to make cardboard of the size that customers want. This machine is all assembled with well-known electrical components and high-quality raw materials. It is easy to operate, efficient in production, high-quality products, stable in operation, and after-sales guarantees. It is loved by many cardboard and carton manufacturers and is exported to overseas countries!
Lead Edge Feeding

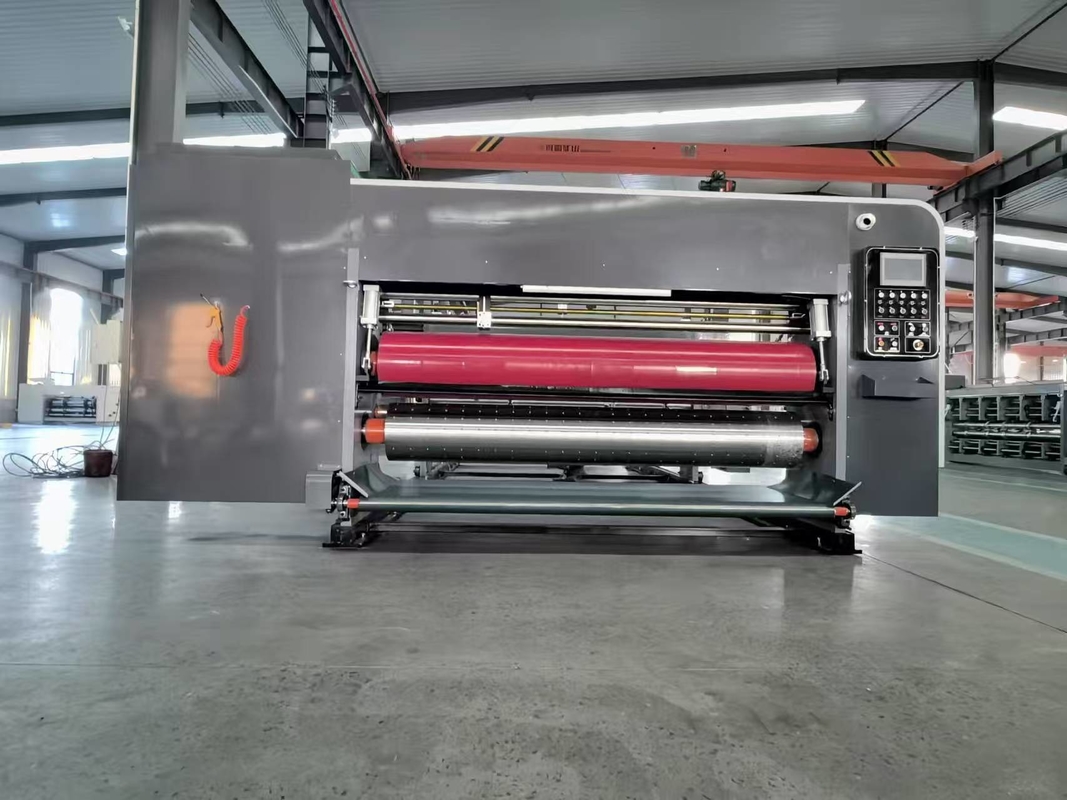

Printing department
Printing roll (plate roll)
1.High-quality steel surface grinding, axial reference scale, hard chrome plating.
2.Do the balance correction, smooth operation, to adapt to high-speed operation.
3.Ratchet fixed scroll plate, with hanging plate ditch, to adapt to the rapid version of the installation convenient and quick.
4.Full version of hanging slot, for 10 mm hanging version of the article
1.High-quality steel surface grinding, axial reference scale, hard chrome plating.
2.Do the balance correction, smooth operation, to adapt to high-speed operation.
3.Ratchet fixed scroll plate, with hanging plate ditch, to adapt to the rapid version of the installation convenient and quick.
4.Full version of hanging slot, for 10 mm hanging version of the article
Slotting unit
1.Slot knives 7 mm use alloy steel material after heat treatment ,grinding , teeth model knives . Slotknife has high strength, abrasion resistance, long service life, accurate size
2. Slot phase adopt the gear structure 360 degree electrical digital number adjustable , running and stop all can adjust
3. Slot seat and creasing wheel and pre-creasing wheel transverse all PLC control , adjust left or right movement, adjust easily and accurately !
2. Slot phase adopt the gear structure 360 degree electrical digital number adjustable , running and stop all can adjust
3. Slot seat and creasing wheel and pre-creasing wheel transverse all PLC control , adjust left or right movement, adjust easily and accurately !
4. Can choose 4/6/8 anix ,for different requirements
Die-cutting unit
1.Die fixed screw hole spacing, axial 100mm; radial 18 equal parts. Applicable tool height 25.4mm.
2.Wood template thickness: 16mm (for three-layer paperboard) 13 mm (for five-layer paperboard)
3.Quick change type pad, wear resistance, long life.
4.Cast iron surface grinding, hard chrome plated.
5.Balance correction, increase operational stability.
6.Pad thickness of 9m. Width 250mm. Mechanical type transverse 40mm swimming device.
2.Wood template thickness: 16mm (for three-layer paperboard) 13 mm (for five-layer paperboard)
3.Quick change type pad, wear resistance, long life.
4.Cast iron surface grinding, hard chrome plated.
5.Balance correction, increase operational stability.
6.Pad thickness of 9m. Width 250mm. Mechanical type transverse 40mm swimming device.
