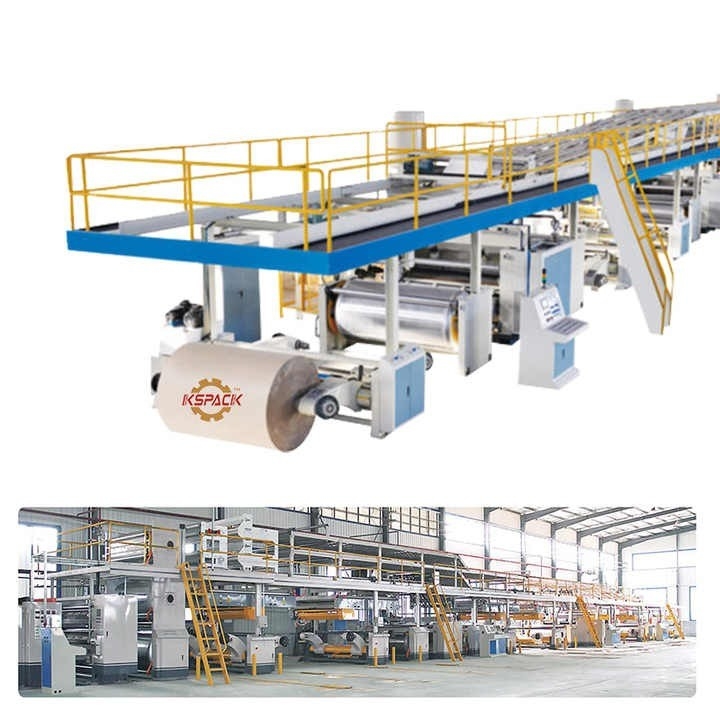

Automatic 3/5/7 Ply Corrugated Board Production Line

Basic Properties
Place of Origin: CHAIN
Brand Name: KSPACK
Model Number: KWJ
Trading Properties
Minimum Order Quantity: 1set
Price: 35600-225600usd/set
Payment Terms: L/C, T/T
Supply Ability: 50sets
Tags

corrugated carton production line

corrugated cardboard production line

5 ply cardboard
Product Summary
※technical parameter: 1. Paper clamping range: maximum 1800mm, minimum 600mm 2. Paper diameter: maximum ￠1500mm, minimum ￠350mm 3. The diameter of the main shaft of the paper holder: ￠242mm 4. The working pressure of the air source (Mpa): 0.4---0.8Mpa 5. Equipment size: Lmx4*Wmx1.6*Hmx1.5 6. Single ...

Product Details

Highlight:

5 ply corrugated board production line

,

3 ply corrugated board production line

,

7 ply corrugated board production line
Speed: 0-200m/min
Heating System: Electric,oil ,steam
Output Paper: Corrugated Paper
Material: 45 Steel
Condition: New
Power Requirements: 380V, 50Hz
Max Speed: 0-200 Min Per Min
Type: Packaging Line
Product Description

※technical parameter:

1. Paper clamping range: maximum 1800mm, minimum 600mm 2. Paper diameter: maximum ￠1500mm, minimum ￠350mm

3. The diameter of the main shaft of the paper holder: ￠242mm 4. The working pressure of the air source (Mpa): 0.4---0.8Mpa

5. Equipment size: Lmx4*Wmx1.6*Hmx1.5 6. Single machine weight: maximum 3000Kg

※Hydraulic system parameters:

1. Working pressure (Mpa): 16---18Mpa Lifting hydraulic cylinder: ￠100×440mm Clamping hydraulic cylinder: ￠63×1300mm

4. Hydraulic station motor power: 4KW --380V -- 50Hz Solenoid valve voltage: 220V 50 Hz

※Main purchased parts, raw materials and origin:

Main part name Origin Material model
Spindle Tiangang Diameter 242mm
swing arm Homegrown Resin sand grey cast iron HT200
wall panel Jinan Iron and Steel Q235A Welding Parts
bearing Ha, Wa, Lo
toothed paper head Homegrown 3, 4 inches shared
main appliances Schneider
button Schneider
air switch Schneider
Pneumatic Components Japan SMC or Taiwan AirTAC
hydraulic station Shandong Jinan
multi-point brake pump Changzhou Schneider


※Paper loading trolley, guide rail



※结构特点:※Structural features:

★The track is buried as a whole, the main frame is welded with No. 14 channel steel and ￠20mm cold drawn round steel, and the length of the ground rail is 6000mm.

★Each paper holder is equipped with two paper feeding trolleys, which can load paper from both sides at the same time, and push the roll paper in place.

:※Main purchased parts, raw materials and origin:

Main part name brand or origin Material model
Track and paper loading trolley Tangshan Iron and Steel or Jinan Iron and Steel No. 14 channel steel, Q235A, steel strip
bearing Ha, Wa, Lo
