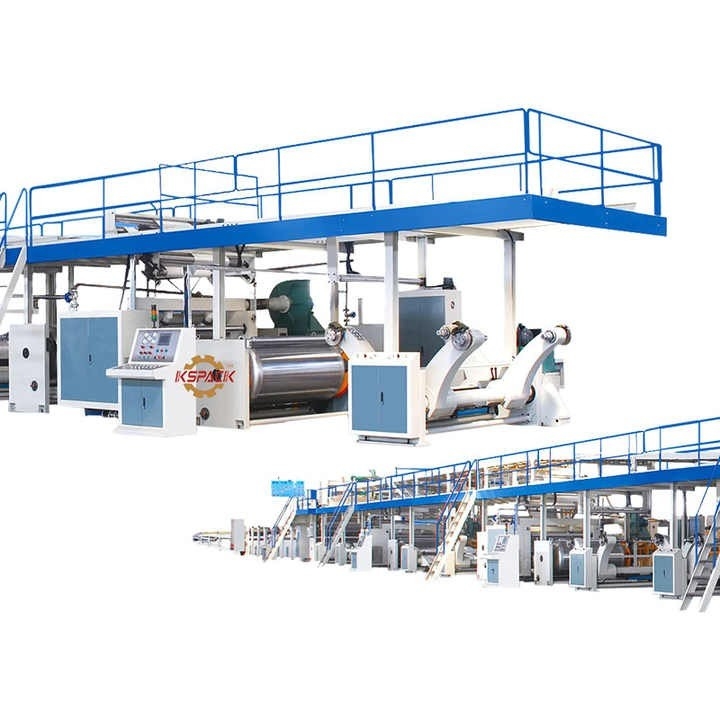

45 Steel Corrugated Paper Board Production Line Speed 0-200m/min For Rapid Production

Basic Properties
Place of Origin: CHAIN
Brand Name: KSPACK
Model Number: KWJ
Trading Properties
Minimum Order Quantity: 1set
Price: 11500-15500usd/set
Payment Terms: L/C, T/T
Supply Ability: 60sets per month
Tags

corrugated carton production line

corrugated cardboard production line

5 ply cardboard
Product Summary
R06B surface (core) paper preheating cylinder ※RG-3-600 triple preheater ※Structural features: ★The preheating roller conforms to the national standard of Class I pressure vessel, and is attached with the pressure vessel certificate and inspection certificate. ★The surface of each roller is finely ...

Product Details

Highlight:

200m/min Corrugated Paper Board Production Line

,

Rapid Corrugated Paper Board Production Line
Type: Packaging Line
Speed: 0-200m/min
Max Speed: 0-200 Min Per Min
Condition: New
Automatic Grade: Automatic
Material: 45 Steel
Keyword: Corrugated Board Production Line
Output Paper: Corrugated Paper
Product Description

R06B surface (core) paper preheating cylinder



※RG-3-600 triple preheater



※Structural features:



★The preheating roller conforms to the national standard of Class I pressure vessel, and is attached with the pressure vessel certificate and inspection certificate.

★The surface of each roller is finely ground and plated with hard chrome after precision grinding. The surface friction is small and durable.

★Electric adjustment of wrapping angle, wrapping angle can be rotated within 360° to adjust the heating area of paper.

★Adopt two-stage reducer to adjust the wrap angle, with self-locking function.

★The preheating roller adopts butterfly head design and is heated by steam.

※technical parameter:

1. Working width: 1800mm 2. Diameter of preheating roller: ￠600mm

3. Adjustment range of wrap angle: 360° rotation

4. Wrap angle shaft diameter: ￠89mm×2

5. Steam temperature: 150-180℃ 6. Steam pressure: 0.8-1.3Mpa

7. Equipment size: Lmx3.3*Wmx1.1*Hmx1.3

8. Single machine weight: maximum 1500Kg

9. Working power supply: 380V 50Hz

10. Motor power: 370W short-time (S2) working system

※Main purchased parts, raw materials and origin:

Main part name brand or origin Material model
Steam rotary joint Quanzhou Yujie
preheating cylinder Handan Steel or Jinan Steel Q235B Pressure Vessel Plate
bearing Ha, Wa, Lo
Pillow block bearing Zhejiang Fifth Ring
reducer Taiwan Shengbang
contactor Schneider
wrap angle shaft   National standard seamless steel pipe ￠110
Trap Beijing float
