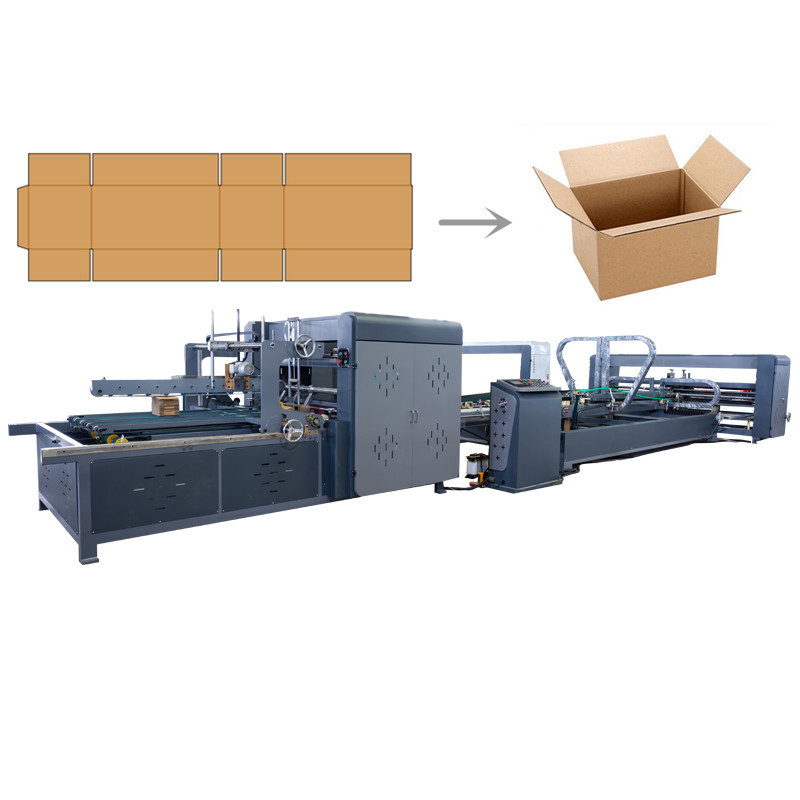

Steel 2400 Fully Automatic Carton Folding And Gluing Machine
Basic Properties
Place of Origin:
China Hebei
Brand Name:
Kingsun
Certification:
CE
Model Number:
AFG
Trading Properties
Minimum Order Quantity:
1 Set
Price:
Negotiable
Payment Terms:
L/C, T/T, Western Union, , D/P, D/A
Supply Ability:
10 Set 40 per days
Product Summary
Carton folding and gluing machine full automatic carton box fold glue machine glue folding machine 1.Carton folding and gluing machine full automatic carton box fold glue machine glue folding machine size Model KSTB-2300 KSTB-2600 KSTB-2800 A 80-880 80-880 80-880 B 600-2320 700-2620 700-2820 C 160...
Product Details
Highlight:
2400 carton folding and gluing machine
,steel carton folding and gluing machine
,Fully Automatic carton gluing machine
Usage:
Carton Folding And Gluing Machine
Color:
Customzied
Size:
2400 2600 2800mm
Min Cardboard:
300x900mm
Machine Function:
Carton Folding And Gluing Machine
Voltage:
12Kw 380v
Machine Frame:
High Quality Steel
Motor Brand:
Simens ABB
Speed:
160pcs Per Min
Auto Stacker:
Including
Product Description
Carton folding and gluing machine full automatic carton box fold glue machine glue folding machine
1.Carton folding and gluing machine full automatic carton box fold glue machine glue folding machine size
| Model | KSTB-2300 | KSTB-2600 | KSTB-2800 |
| A | 80-880 | 80-880 | 80-880 |
| B | 600-2320 | 700-2620 | 700-2820 |
| C | 160-840 | 160-840 | 160-840 |
| D | 240-1000 | 260-1150 | 260-1250 |
| INSTALL AREA | 3500*14000 | 4000*15000 | 4200*16000 |
| MOTOR POWER | 10Kw | 12Kw | 12·Kw |
2.Corrugated carton boxes Automatic carton box folder gluer machine specification
Lead edge feeder type
1. The cardboard height adjustment structure made of high-quality steel is used to quickly adjust various box heights and cardboard lengths.
2. The suction belt of the paper feeding part is made of high-tech materials, and the tension layer seamlessly connects with the endless belt to ensure that the machine has no worries during use.
3. The suction motor and the main rotating motor of the paper feeding part are all selected from Taiwan with high quality and high stability.
Fold gluer part
1. The motor is selected from a well-known domestic brand, with stable performance, convenient speed regulation, and no noise pollution.
2. The gluing part is made of high-quality stainless steel, the gluing is uniform, glue-saving and efficient.
3. The folding part is equipped with a double-channel indentation correction device, which can accurately and effectively correct the deviation of the cardboard pit line, so that the entire carton can be folded most accurately.
Computer control box
Simple touch screen operation input, the whole machine adopts PLC computer programming controller, digital operation, touch screen input data, can realize non-stop data change, production speed, etc., the whole machine automatically feeds paper, automatically folds, automatically counts, Box speed 120m/min, maximum speed 160m/min.
3.Company information
Our products not only sale domestic market well and also gain plenty of export experience . Our products exported to Russia , middle east , Africa , Asia and so on . Our product quality and enterprise credit standing in approved by our customers home and aboard .
11 years export experience
Export to more than 100 countries
Export more than 100 coutainers capacity
Professional international sales more than 10 persons
Professional sale team , technical team and after sales service team
Our KS pack group company :
Hebei Jinguang packing machine Co.,ltd
Cangzhou Kingsun IMP & EXP Co.,Ltd
Dongguang qunbang carton machinery co.,Ltd

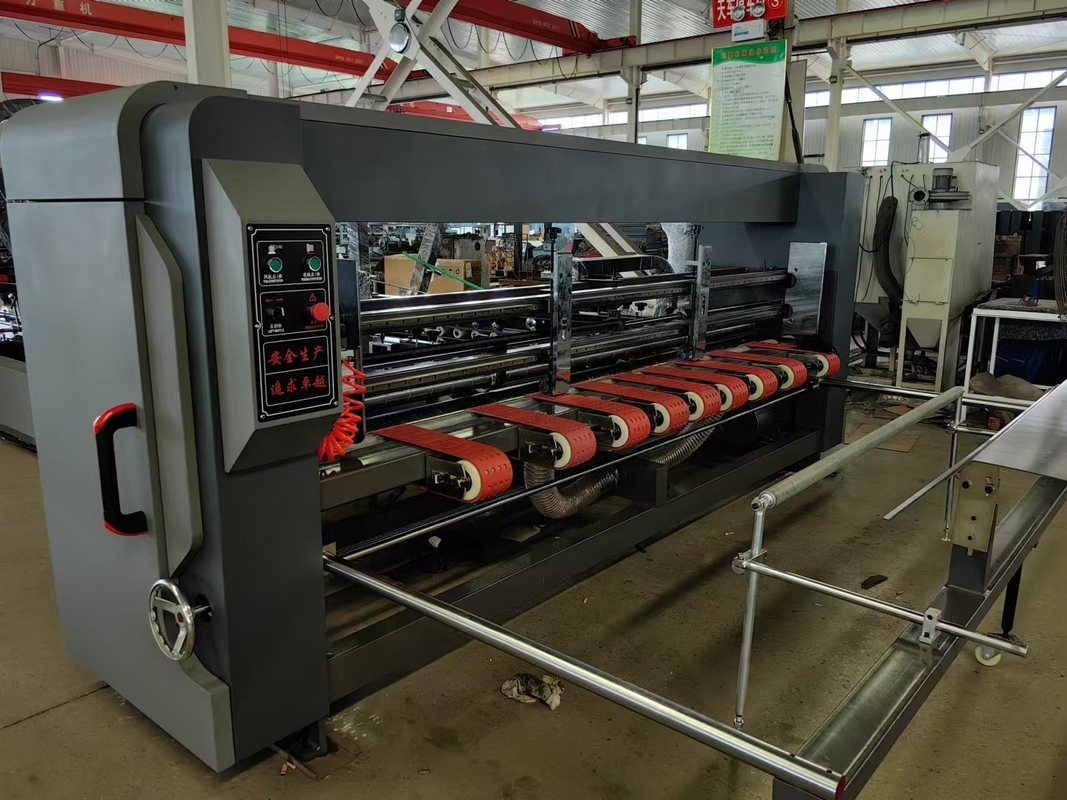

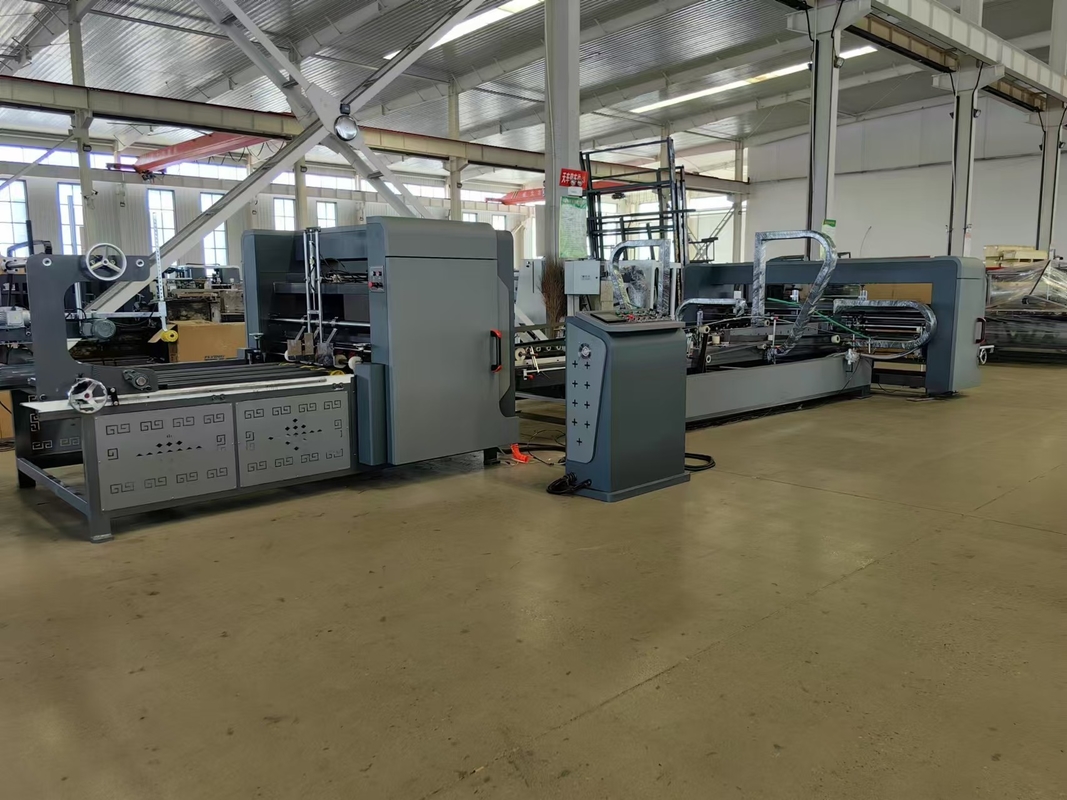

5.Folder gluer machine pictures
,
