Carton Folder 2600 Size Gluing Machine For Boxes

Basic Properties
Place of Origin: China Hebei
Brand Name: Kingsun
Certification: CE
Model Number: AFG
Trading Properties
Minimum Order Quantity: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, , D/P, D/A
Supply Ability: 10 Set 40 per days
Tags

automatic folding machine

box folder gluer machine

carton folder gluer machine
Product Summary
Carton Box Closing Machine Folder Gluer Fully Automatic Cartons Side Glue Box Of Folding Gluing Machines 1.Box folder gluer machine specification Carton folding gluing machinery auto box folder gluer machine is full-automatic sticky box folder gluer ,include feeding department, folding department ...

Product Details

Highlight:

2600 gluing machine for boxes

,

carton folder gluing machine for boxes

,

2600 carton folder gluer machine
Usage: Folding Gluing Machines
Color: Customzied
Size: 2400 2600 2800mm
Min Cardboard: 300x900mm
Machine Function: For Corrugated Carton Box Glue
Voltage: 12Kw 380v
Machine Frame: High Quality Steel
Motor Brand: Simens ABB
Speed: 160pcs Per Min
Auto Stacker: Including
Product Description



Carton Box Closing Machine Folder Gluer Fully Automatic Cartons Side Glue Box Of Folding Gluing Machines



1.Box folder gluer machine specification



Carton folding gluing machinery auto box folder gluer machine

is full-automatic sticky box folder gluer ,include feeding department, folding department and count accumulation of three parts, PLC display speed, Touch screen adjust the size , simple and convenient, quick and reliable precise control mode, automatic feeding, automatic glue fold, automatic counting, automatic stack output, average sticky box speed 100 pcs /min, highest speed 120 meter /min, high efficient energy-saving environmental protection is our supreme pursuit.

The whole machine frame, 300 channel steel, thick-wall steel plate, wall panel, etc. are made of high quality Q235-A steel. The welding department adopts the international standard continuous uninterrupted welding technology. All shaft components are processed by high-quality 45 steel. stable job.



Easy touch screen opeation imput ,

whole machine adopt the plc computer programs controller ,
digital number operater ,
touch screen input the data ,
can be change the data,
speed no need stop the machine ,
whole machine automatic supply the paper ,auto folder ,
auto counter ,
auto stacker ,
feed out ,
the speed 120m/min ,
max speed 160m/min



2.Fodler gluer Machine structure



1.Automatic bending and coating.

2.Applicable carton wide range, different sizes carton adjustment is simple and quick.
3.The machine runs smoothly and reliably, the packaging effect is firm and beautiful.
4.Equipment operation is simple and easy to maintain.
5.With a separate pre-pressure wheel, solve the printing press line badproblem effectively. automatically correct the carton straight angle, effectively correct scissors fork, fish tail and so on.
6.Aseparate correction system can effectively control the carton scissors.





Digital display is adjusted, PLC computer amplitude modulation, double frequency conversion synchronous operation, simple, reliable and precise control mode, automatic paper feeding, automatic glue folding, Automatic counting, automatic stacking output, average sticking speed of 150 m / min, maximum speed of 200 m / min, high efficiency, energy saving and environmental protection, is our highest pursuit.



3.Box folder gluer machine size





Model

KSTB-2300

KSTB-2600

KSTB-2800

A

80-880

80-880

80-880

B

600-2320

700-2620

700-2820

C

160-840

160-840

160-840

D

240-1000

260-1150

260-1250

INSTALL AREA

3500*14000

4000*15000

4200*16000

MOTOR POWER

10Kw

12Kw

12·Kw



4.Company information



Our products not only sale domestic market well and also gain plenty of export experience . Our products exported to Russia , middle east , Africa , Asia and so on . Our product quality and enterprise credit standing in approved by our customers home and aboard .







11 years export experience

 Export to more than 100 countries

Export more than 100 coutainers capacity

Professional international sales more than 10 persons

Professional sale team , technical team and after sales service team







Our KS pack group company :

Hebei Jinguang packing machine Co.,ltd

Cangzhou Kingsun IMP & EXP Co.,Ltd



Dongguang qunbang carton machinery co.,Ltd

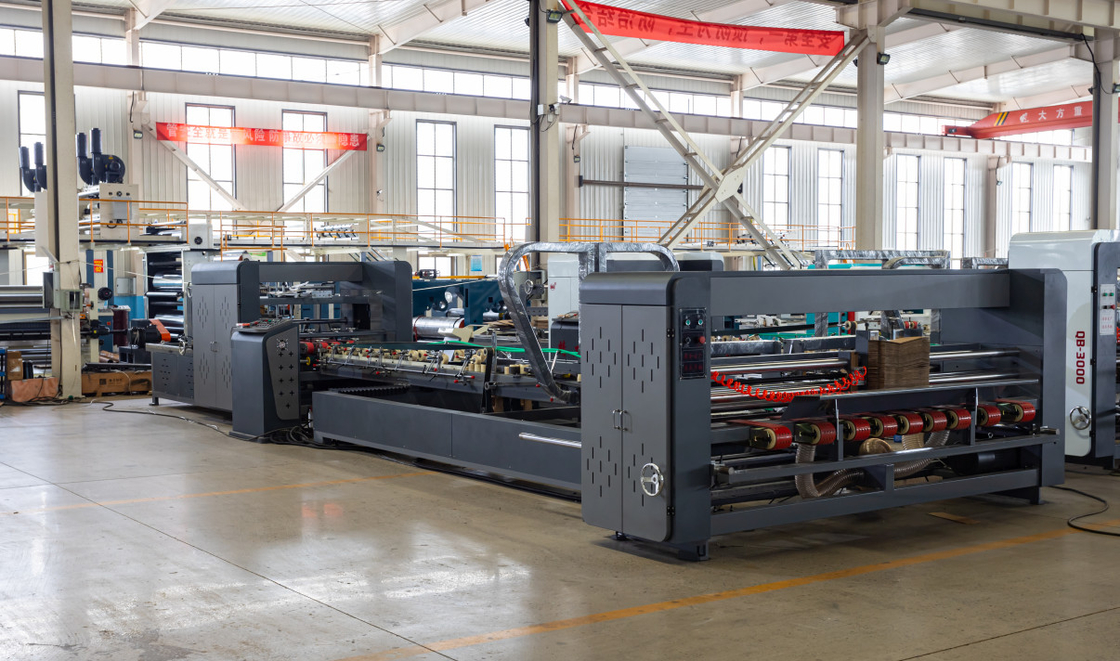

5.Folder gluer machine pictures

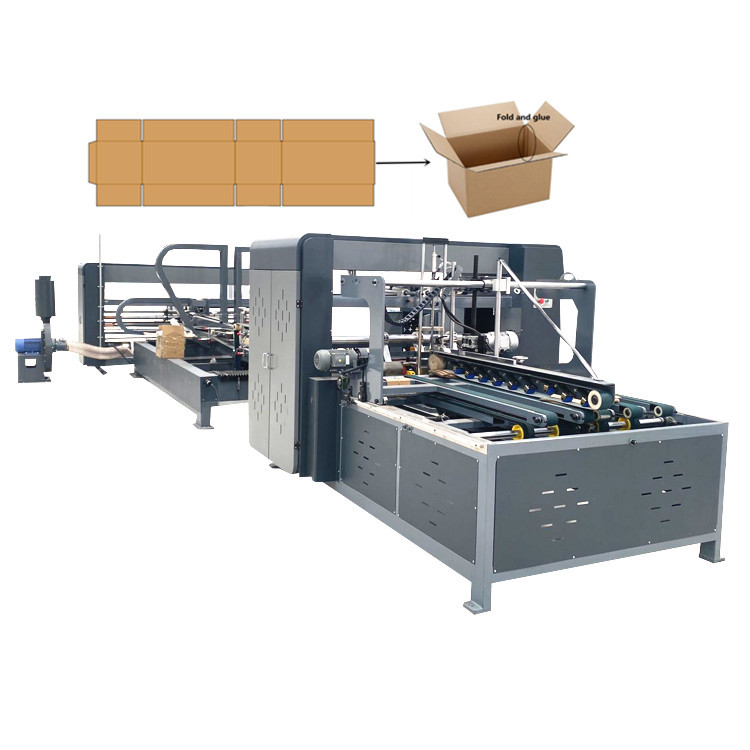

Carton Folder 2600 Size Gluing Machine For Boxes
