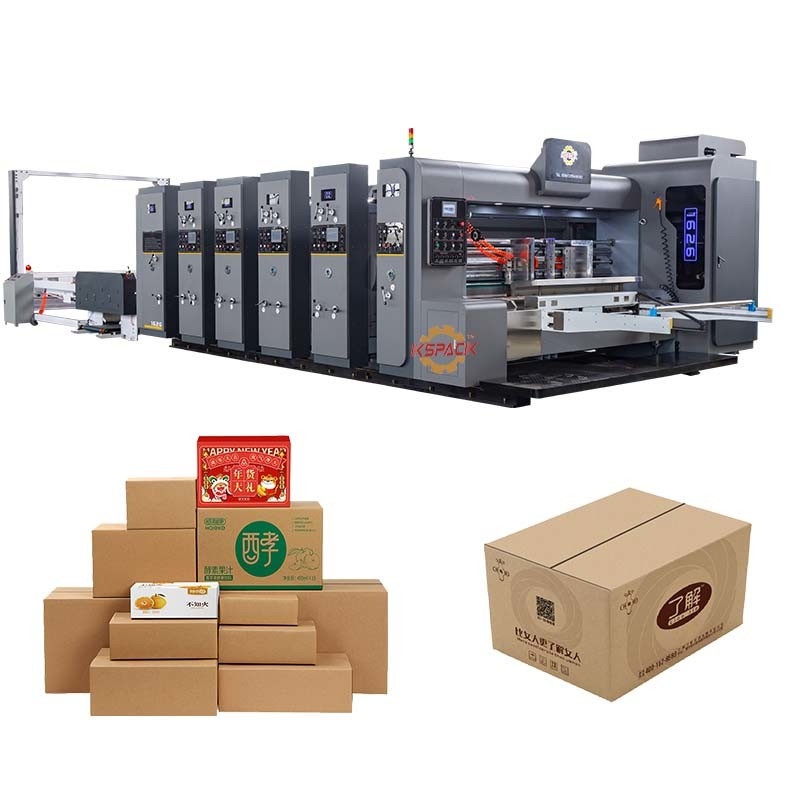

1 Color Corrugated Box Printing Machine With Long Life Knives And Chrome Plated Feed Rollers
Basic Properties
Place of Origin:
Hebei China
Brand Name:
kspack
Certification:
CE
Model Number:
KSPACK1200
Trading Properties
Minimum Order Quantity:
1
Price:
USD29800~USD32500/set
Payment Terms:
L/C, T/T
Supply Ability:
15sets/month
Product Summary
Printing department the printing roller diameter .300mm,408mm.480mm,530mm Auto rise the ink plate ,the inker turning to prevent ink dried. ,Adopt electrically separation ,pneumatic locking Ink supplied by pneumatic diaphragm pump Main transmission gear made by 45# steel ,it adopts helical gear ...
Product Details
Highlight:
1 Color Corrugated Box Printing Machine
,Long Life Knives corrugated box printer
,1 Color cardboard box printer machine
Product Name:
Corrugated Carton Box Machine
Funcation:
Carton Box Making Machine
Speed:
250~300pcs/min
Roller Diameter:
300mm,480mm,530mm
Max Paper Feed:
1800mm*2000mm/2200mm.......3000mm
Painting Colour:
1~5colors Printing
Control System:
PLC
Type:
Full Automatic
Paper Feeder Type:
Automatic Edge Leader Feeder
Delivery Time:
Within 35days After Receive Deposit
Machine Type:
Cartons
Work Speed:
80 Pcs / Min
Printing Width:
Up To 2000mm
Min Feeding:
450*220mm
Machine Speed:
180pcs/min
Product Type:
Corrugated Board
Total Power:
43 KW
Packaging Material:
Paper
Feeder Type:
Automatic Feeder
Size:
2000-3500mm
Voltage:
380V
Gross Power:
12kw,100-300kw,50HZ,24kw,1.5kw
Packaging Type:
Cartons, Film, Case, Bottles, Belt
Registration Precision:
±0.4mm
Product Description
Printing department the printing roller diameter .300mm,408mm.480mm,530mm Auto rise the ink plate ,the inker turning to prevent ink dried. ,Adopt electrically separation ,pneumatic locking Ink supplied by pneumatic diaphragm pump Main transmission gear made by 45# steel ,it adopts helical gear driving and processed by high frequency quenching.Auto sprinkle lubricating system ensures the machine precise and use life all the roller must be chrome –plating in order to increase the hardness .the auto count function Have alarm system ,when machine start work there have alarm ,gurantee the work safe
Slotter cutting part 1.Four slotter knives , open the slot ,creasing the line and cut the corner 2.The knives use the good material ,long use life 3.Our slot knives can be same time adjust 4.The phase can be adjust by electrical 360oC 5.Feed roller all be chrome plate
