High Speed Automation 3 Ply Corrugated Board Production Line 1200mm Width 180 Speed
Product Details

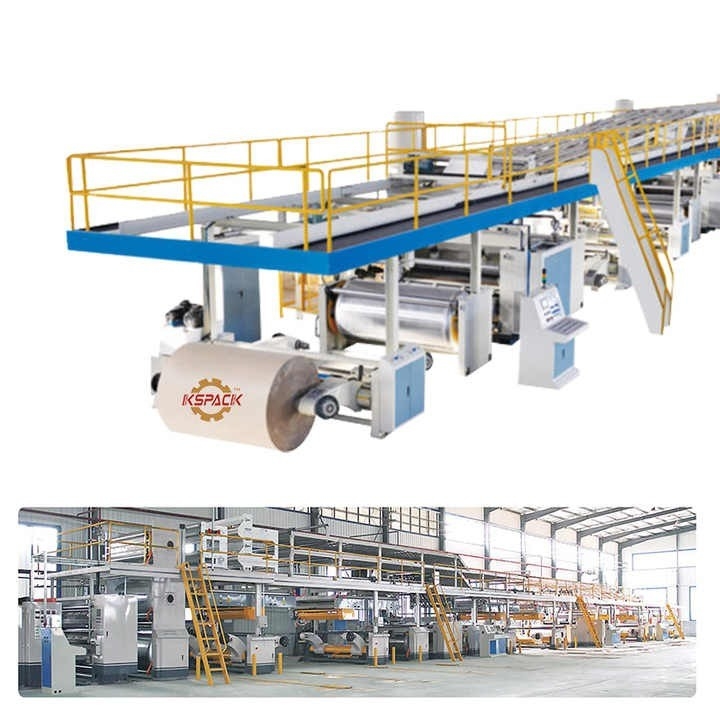

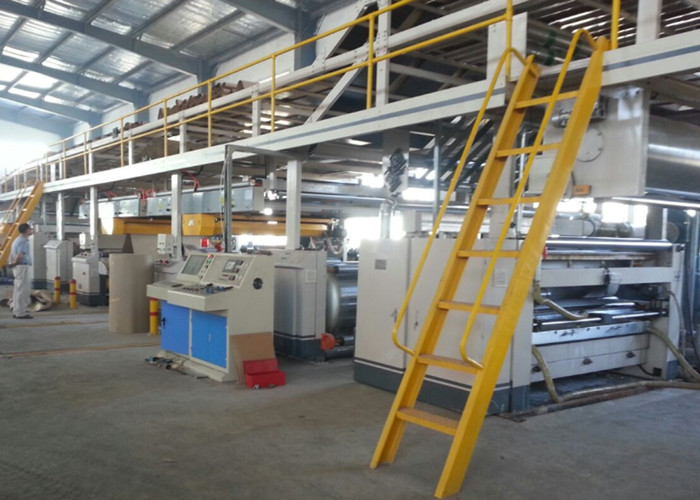

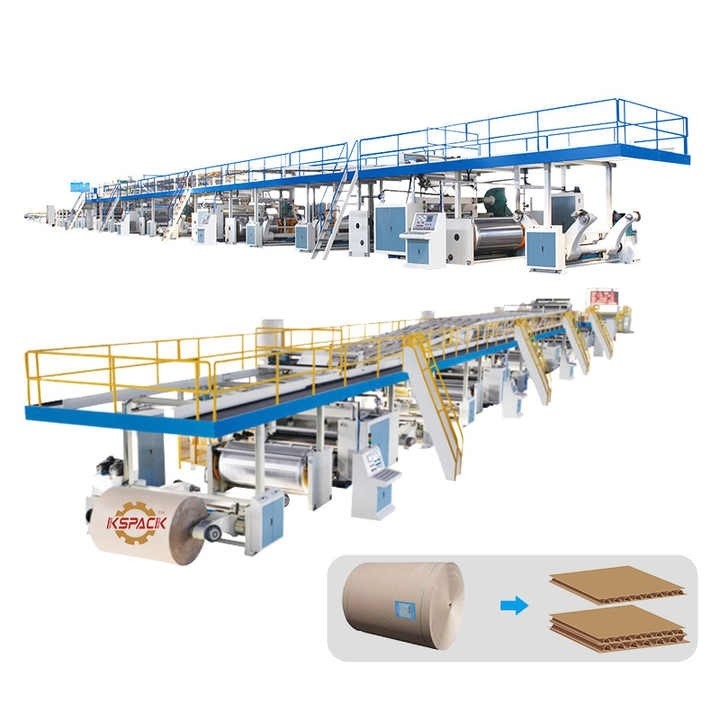

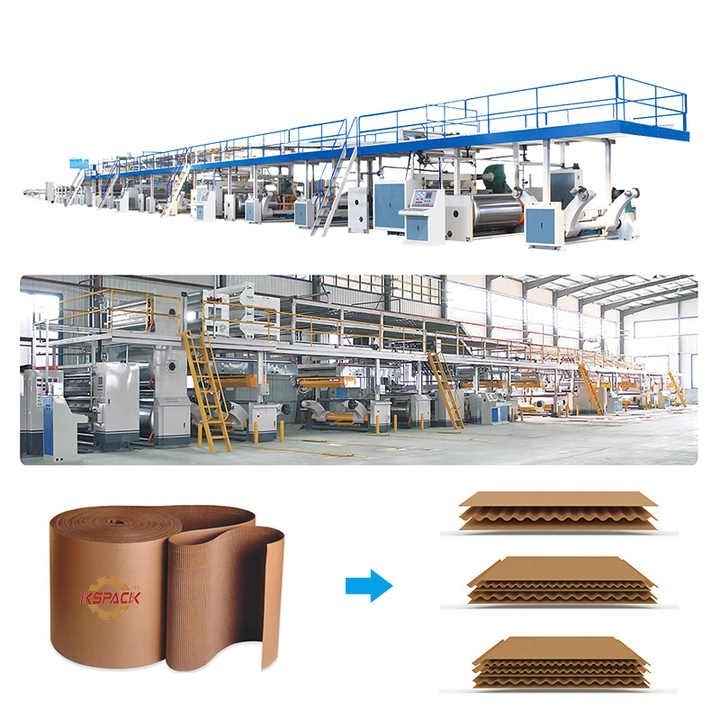

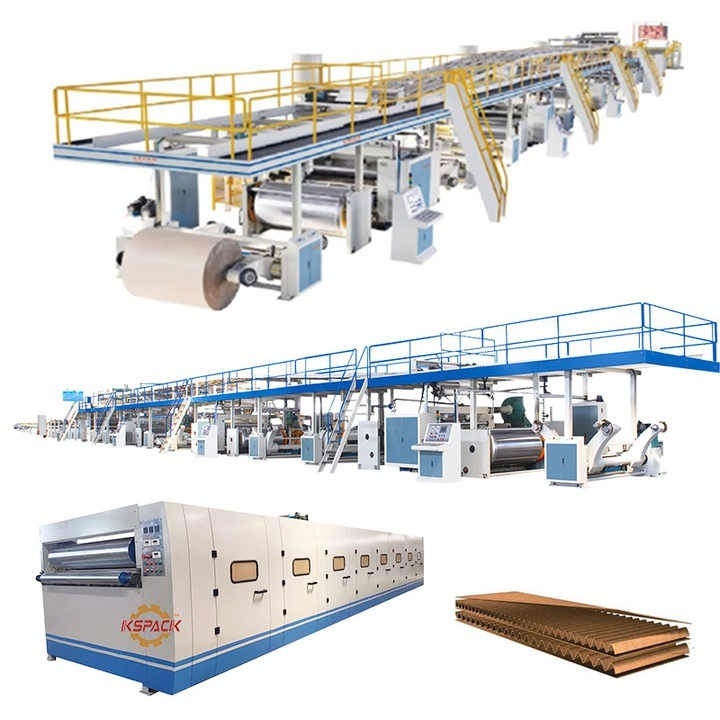

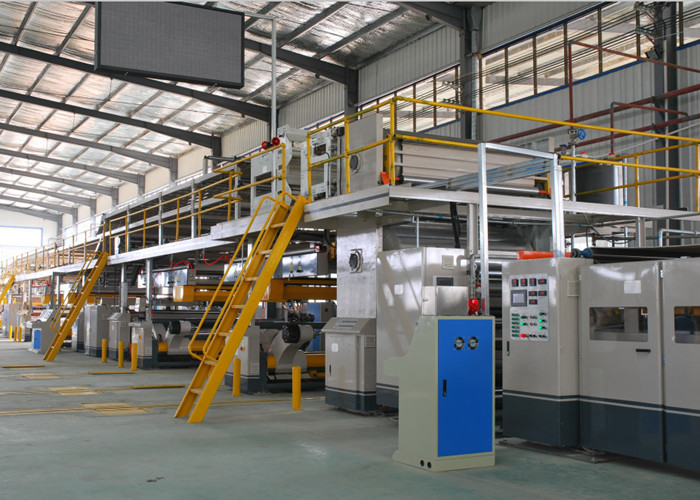

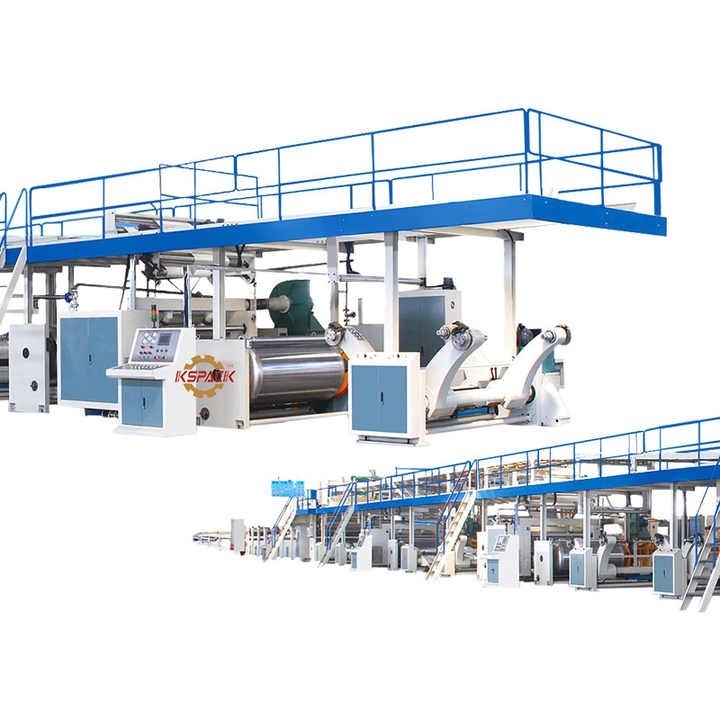

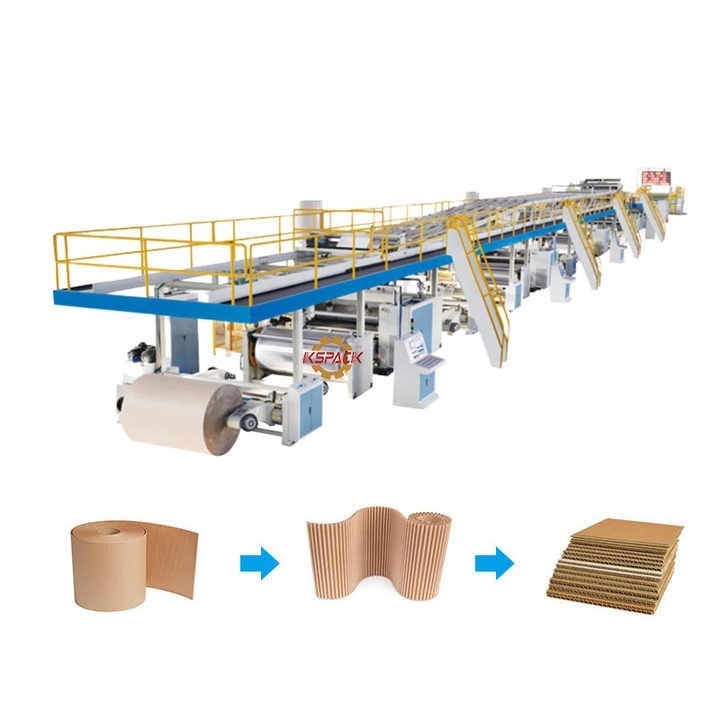

1200mm Corrugated Board Production Line
,high Speed Corrugated Board Production Line
,Automation 3Ply Corrugated Board Production Line
Automation 3 5 7 Ply Corrugated Board Production Line For 1600mm Width Corrugated Cardboard
1,Corrugated Board Production Line Description:
A corrugated cardboard production line is crucial in today's global industrial sector, offering various types such as 3ply, 5ply, 7ply, and multi-function. These lines consist of a mill roller stand, surface paper preheater, single facer, conveyor span bridge, stacker, secondary corrugator, primary corrugator, and a folder. These components work together to produce top-quality corrugated cardboard sheets. The mill roller stand ensures precise cutting and processing, while the preheater prepares the paper for corrugated cardboard formation. The single facer processes and shapes the cardboard, ensuring it meets specifications. The span bridge transfers material smoothly and efficiently.
Some of the key equipment in a typical corrugated cardboard production line include the Glue Application Machine, Double Facer, Slitter Scorer, Cut-off, Conveyer and Stacker, Steam Heating System, Air Compression System, and Glue Making System. However, various types and quantities of equipment can be integrated to tailor different types and grades of corrugated paperboard production line for various purposes.
2,Corrugated Board Production Line Specifications:
|
Hydraulic shaftless mill roll stand
|
Set
|
3
|
Main shaft ￠242mm, hyperbolic heavy-duty rocker arm, tooth-type paper clamping head, multi-point brake, hydraulic drive lift,
left-right translation, centering. The length of the guide rail is 6000mm, and the middle plate is welded. |
|
Paper trolley
|
set
|
6
|
|
|
Top paper preheat cylinder
|
Set
|
1
|
Roller ￠900mm, including pressure vessel certificate. Electric adjustment of wrap angle. The wrapping angle can adjust the heated
area of the paper within 360°. |
|
Core paper prehear cylinder
|
Set
|
1
|
Roller ￠900mm, including pressure vessel certificate. Electric adjustment of wrap angle. The wrapping angle can adjust the heated
area of the paper within 360°. |
|
Fingerless type single facer
|
Set
|
1
|
The corrugated main roller is ￠320mm, and the material is 48CrMo alloy steel. Tungsten carbide treatment, tile roller module type
hoisting in groups. Airbag ballast structure, HRB main bearing, PLC automatic control glue, man-machine interface touch screen, automatic shutdown and pressure relief when paper is broken, steam heating mode. |
|
Double preheater
|
Set
|
1
|
Roller ￠900mm, including pressure vessel certificate. Electric adjustment of wrap angle. The wrapping angle can adjust the heated
area of the paper within 360°. |
|
glue machine
|
set
|
1
|
The diameter of the glue roller is 268mm. Each layer is driven by an independent frequency conversion motor, and PLC adjusts the
glue gap and man-machine interface. |
|
Conveyor bridge
|
set
|
1
|
The main beam is 200mm channel steel, and the independent frequency conversion motor drives the paper pulling and conveying, and
the suction tensioning. Electric deviation correction. |
|
Double facer
|
set
|
1
|
Frame 360 mm national standard channel steel, hot plate 595 mm *14 pieces, intensive roller design structure. Pneumatic lifting,
temperature display, side door, frequency conversion motor. |
|
Lifting thin knife slitting and creasing machine
|
set
|
1
|
Tungsten alloy blade, five-knife eight-wire type, electric knife adjustment, electric wire adjustment. Electric traverse.
|
|
Computer spiral knife
Crosscutting machine |
set
|
1
|
Full AC servo control, energy storage brake, spiral knife structure, oil-immersed gear drive, 10.4 inch touch screen display.
|
|
Three-section right angle stacker
|
set
|
1
|
Three-stage frequency conversion conveying, automatic counting and stacking discharge, imported high-strength belt output, and
standard conveyor rack on the paper side. |
|
Glue station system
|
set
|
1
|
The pipeline customer shall prepare by himself. The glue making device is composed of a carrier tank, a main tank, a storage tank,
a glue feeding pump, and a glue returning pump. |
|
Air source system
|
set
|
1
|
The customer's own gas source.
|
|
Steam system
|
set
|
1
|
Including steam components such as pipeline valves, traps, and meters in the equipment, the customer shall prepare the heat source
and pipeline. |
