Mini Type Edge Leader Corrugated Box Printing Machine  PLC control 1850mm

Mini Type Edge Leader Corrugated Box Printing Machine PLC control 1850mm

  • Highlight

    1850mm corrugated box printing machine

    ,

    PLC control corrugated box printing machine

    ,

    Mini Edge Leader cardboard box printer

  • Machine Type
    High Speed Flexo Printing Machine
  • Printer Plate Install
    Hanging Type
  • Machine Color
    CUstomized
  • Drying Method
    Electric Heating
  • Usage
    For Carton Box Making
  • Color
    4-6 Colors
  • Color Model
    Cyan,Magenta,Yellow,Black
  • Plate Size
    1300x2400mm
  • Power
    38KW
  • Max Sheets Feeding
    1800 2000 2200 2400 2600 2800 3000 Mm
  • Printing Color
    1,2,3,4 Colors
  • Product Type
    Automatic Corrugated Box Making Machine
  • Automatic Type
    Fully Automatic Type
  • Gear Thickness
    50mm
  • Feeding Unit
    Lead Edge Feeder
  • Place of Origin
    CHINA
  • Brand Name
    KSPACK
  • Certification
    CE ISO
  • Model Number
    KSJ
  • Minimum Order Quantity
    1SET
  • Price
    Negotiate
  • Delivery Time
    5-8 Work Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    1 set per 20 days

Mini Type Edge Leader Corrugated Box Printing Machine PLC control 1850mm

MODEL KYG-A Series Middle Speed Printer Diecutter
PRINTER COLOR MULTI COLOR
MNACHINE SIZE WALL BOARD TO WALL BOARD SIZE 2000/2200/2400/2600/2800/3000MM
MACHINE DESIGN SPEED DESIGN SPEED 150PCS /MIN
WORK SPEED 120PCS /MIN
MACHINE WALL BOARD SIZE (mm) 50
GERA THICKNESS (mm) 50
MAX PASSING PAPER SIZE (mm) 1450*2400mm
MIN PAPER PASSING SIZE (mm) 420X860MM
SKIP PAEER SIZE (mm) 1450X2600mm
MAX PRINT SIZE (mm) 1450*2200mm
THINKCNESS OF THE PLATE (mm) 3.2---7.2
BOARD THICKNESS (mm) 3---12
BOARD PRINT ACCURATE (mm) PRINT ±0.5/ SLOT OPEN ACCURATE ±1.5
生产时功率(km) 30
总功率(km) 40

Edge Leader Corrugated Box Printing Machine double cover PLC control

1,Corrugated Box Printing Machine Description:

1 printing roll (plate roll)

【1】 diameter of ¢ 468 mm ( ¢ 480 mmwith printing mould diameter).

[2] high-quality steel surface grinding, axial reference scale, hard chrome plating.

[3] to do the balance correction, smooth operation, to adapt to high-speed operation.

【4】 ratchet fixed scroll plate, with hanging plate ditch, to adapt to the rapid version of the installation convenient and quick.

【5】 full version of hanging slot, for 10 mm hanging version of the article.

【6】 printing roller axial manual traverse, the maximum movement of 10mm.

2 printing press roll

【1】 diameter of ¢ 155 mm.

[2] the use of high-quality seamless steel pipe surface grinding, dynamic balance correction, smooth operation, hard chrome plating

【3】 printing pressure roller cross slider-type dial to manually adjust the adjustment range of 0 to 12 mm. Adjustment does not affectGear clearance to ensure transmission accuracy.

3 Feed the upper and lower rollers

【1】 on the roll: diameter ¢ 86 mm seamless steel pipe, with three paper feed ring.

【2】 the next roll: diameter ¢ 155 mm seamless steel pipe, surface grinding, hard chrome plated

【3】 feeding roller cross slider-type dial dial manually adjust the adjustment range of 0 ~ 12 mm. Adjustment does not affect teethWheel clearance, to ensure transmission accuracy.

4. steel anilox roller rubber roller set ink system

[1] diameter of ¢ 176 mm. Dalian roller .

【2】steel surface grinding, repression reticulate, hard chrome plating.

[3] alance correction, smooth operation.

【4】mesh number is 180,200,220,250 lines / inch selection.Option ceramic roller 300line/inch

【5】 with the feed system pneumatic automatic lifting device. (When feed paper pr the anilox roller is lowered and touched with print plate ,stop feed paper

anilox roll is up and the plate is separated)

【6】 Anilox roller with wedge-type clutch, even ink, easy to clean ink.

【7】 rubber roller diameter ¢ 168 mm.

【8】 steel pipe surface wrapped with wear-resistant rubber, and do the balance correction.

【9】 rubber in the special high grinding, ink transfer effect is good. Quick clearance fine-tuning self-locking device to ensure uniform ink. The amount of uniform ink system, the conversion effect is good, to extend the life of rubber roller.

5 .phase adjustment mechanism

[1] planetary gear structure.

[2] print phase adopt electrical digital number adjust 360degree adjutable

6. ink circulation

【1】 Pneumatic diaphragm pump, ink stability, easy operation and maintenance.

【2】 ink filter, filter impurities.

7 printing phase fixing device

【1】 cylinder brake mechanism.

【2】 When the machine to separate or adjust the phase, the brake mechanism to limit the machine rotation, to maintain the original gear position fixed point.





2,Corrugated Box Printing Machine Specifications:







3,Corrugated Box Printing Machine Feature Advantage:

Wooden die roller (lower roll)

【1】 outside diameter ¢ 430mm (without cutter).

[2] cast iron surface grinding, hard chrome plating, balance correction, increase operational stability.

【3】die fixed screw hole spacing, axial 100mm; radial 18 equal parts. Applicable tool height 25.4mm.

【4】Wood template thickness: 16mm (for three-layer paperboard) 13 mm (for five-layer paperboard)

Pad roller (upper roll)

【1】 diameter of ¢ 388.9mm, aniv cover 420mm

【2】 quick change type pad, wear resistance, long life.

[3] cast iron surface grinding, hard chrome plated.

[4] balance correction, increase operational stability.

【5】pad thickness of 9m. Width 250mm. Mechanical type transverse 40mm swimming device. (Adjustable swimming speed)

Grinding mechanism

【1】 electric grinding pads, modified fast and efficient.

[2] improve the service life of the pad.

5,Our Company:

As a seasoned provider of specialized equipment for the corrugated packaging industry, our portfolio encompasses a variety of high-quality products. This includes state-of-the-art automatic high-speed flexo printer slotter die cutters, sophisticated corrugated board production lines, rotary die cutters, versatile carton staplers, and advanced two-ply corrugated board production lines.
Currently, we are embarking on a comprehensive expansion of our product line to encompass comprehensive testing equipment and additional types of packaging machinery, all designed to enhance our customers' operational efficiency and overall packaging process.

6,Machine Picture:

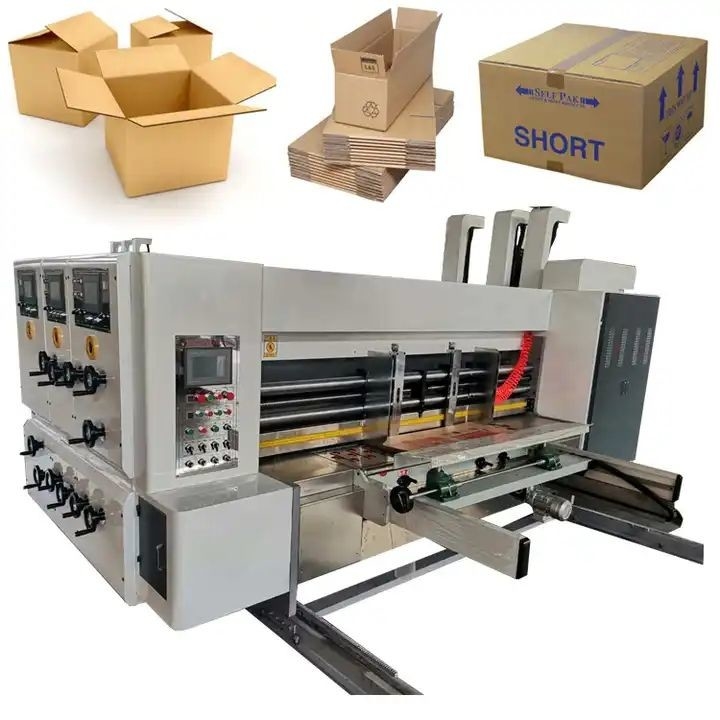

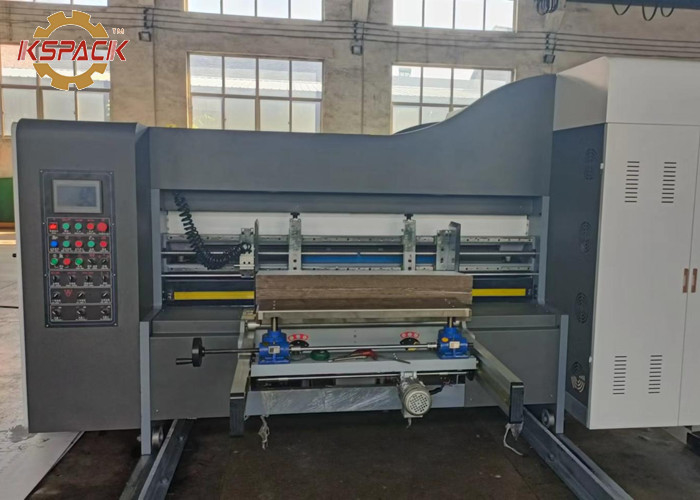

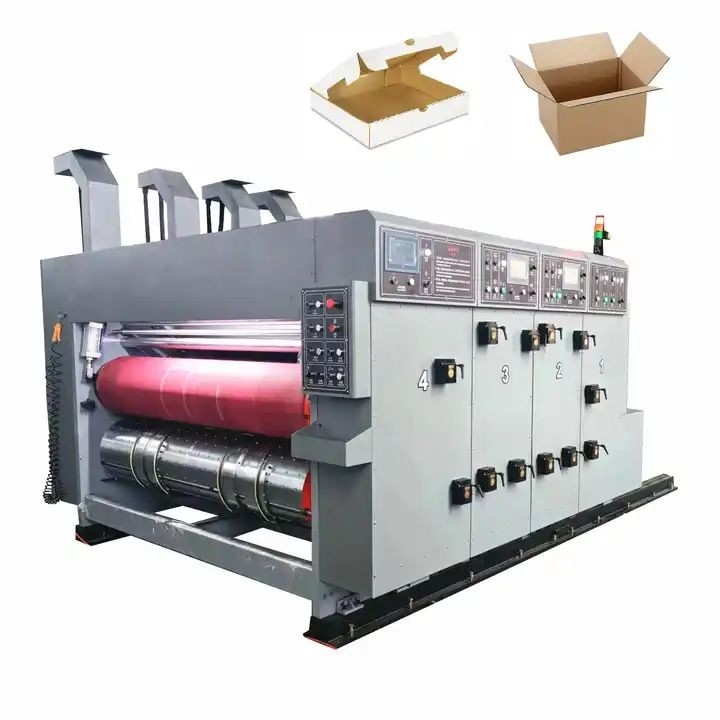

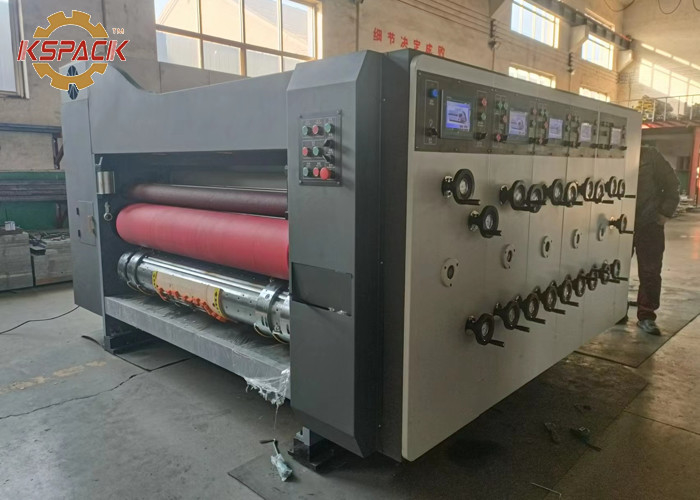

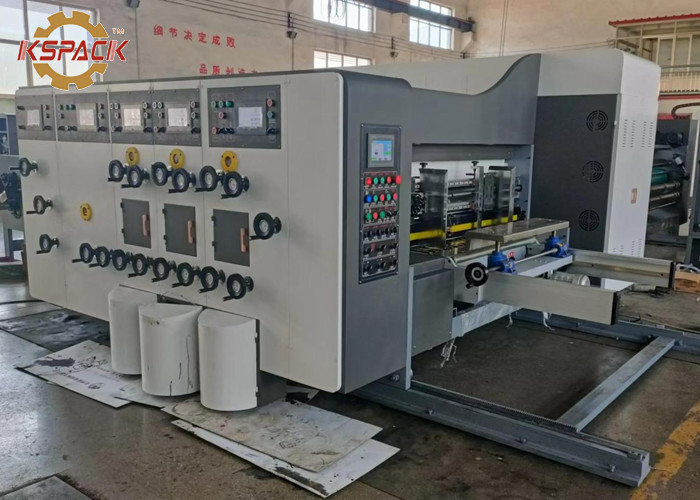

Mini Type Edge Leader Corrugated Box Printing Machine  PLC control 1850mm 0
