Corrugated Board Cardboard Paper Automatic Flute Laminator Machine High Speed
Product Details
Cardboard Paper Automatic Flute Laminator Machine
,Corrugated Board Automatic Flute Laminator Machine
,High Speed Automatic Flute Laminator Machine

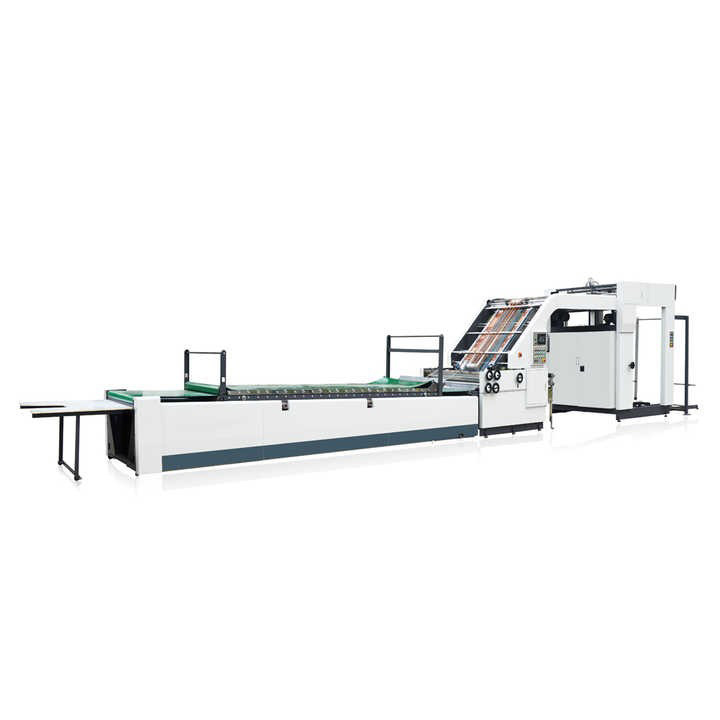

KS Series Corrugated Board Cardboard Paper Automatic Flute Laminator Machine High Speed
1,Flute Laminator Machine Description:
Embracing cutting-edge technology, this range of sophisticated automatic flute laminating machines exhibits superior speed, user-friendliness, robust reliability, effortless maintenance, and quiet operation.
The equipment's precise functionality promises enhanced production accuracy, allowing customers to outperform in a fiercely competitive marketplace.
2,Flute Laminator Machine Specifications:
| Model | KCS-14145 | KCS-16145 |
| Maximum size(W×L) | 1430×1440mm | 1630×1440mm |
| Minimum size(W×L) | 450×450mm | 450×450mm |
| Laminate precision | ≤±1.5mm | ≤±1.5mm |
| Max Speed | 150M/min | 150M/min |
| Total power | 22kw | 25kw |
| Dimensions | 15000 x 2250 x 2450mm | 15000 x 2450 x 2450mm |
| Total weight | 7500kgs | 8500kgs |
3,Flute Laminator Machine Feature:
Computerized high speed lamination up to 150m/min. Depending on the quality of sheets.
E shape lifting board used for the feeding unit enables sheets to be pushed into position by hydraulic jack.Rail with pre-piling device are available for option.

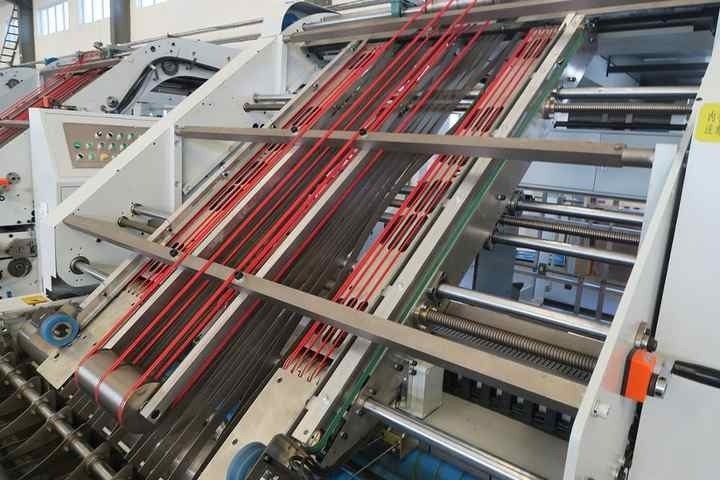

High strength feeder ensures smooth running with no missing of sheet even at high speed.
Sensing and compensation and alignment device uses several group of sensors to sense the relative position of the running corrugated board so that two servo motors at left and right side of the top paper can drive independently to align top paper with corrugated paper with high accuracy and high speed.
Global-functional electric control system with touch screen and PLC program monitors automatically the working condition and facilitate trouble shooting. The electric design conforms to the CE standard.
Gluing unit uses high precise coating wheels, together with specially designed metering roller enhances the evenness of gluing.The unique gluing wheel with glue stopping device and automatic glue level control system guarantees backflow with no overflow of glue.
Machine frames are processed by CNC lathe in one process, which ensures the precise of every positions. Toothed belts for transferring guarantees smooth running with low noise. Motors and the spares uses Chinese famous brand with high efficiency, less trouble and long service life.

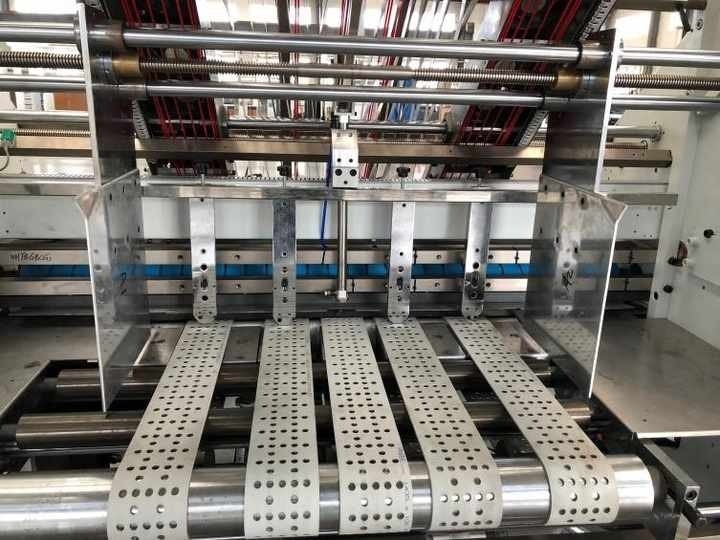

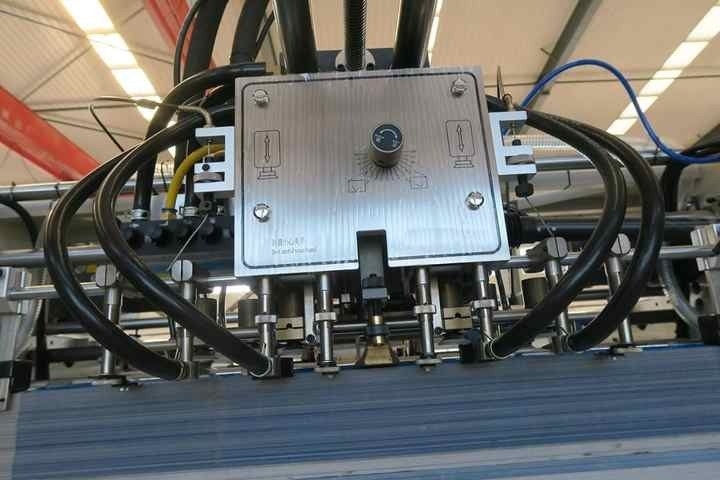

Corrugated board feeding unit adopts powerful servo motor control system with the features of high sensitivity and fast speed. The suction unit uses high-pressure blower,SMC high- flow control valve as well as unique dust collection filter box, which enhances suction force for different corrugated paper, ensuring smooth running with no double or more sheets, no missing sheet.
Automatic Glue Supply System: The machine adopts imported liquid level controller for glue supply. When glue is insufficient, it can stop the feeder automatically to avoid waste of paper.
