Chain Feed 3colors Corrugated Box Printing Machine 1200x2400mm Slotter Machine

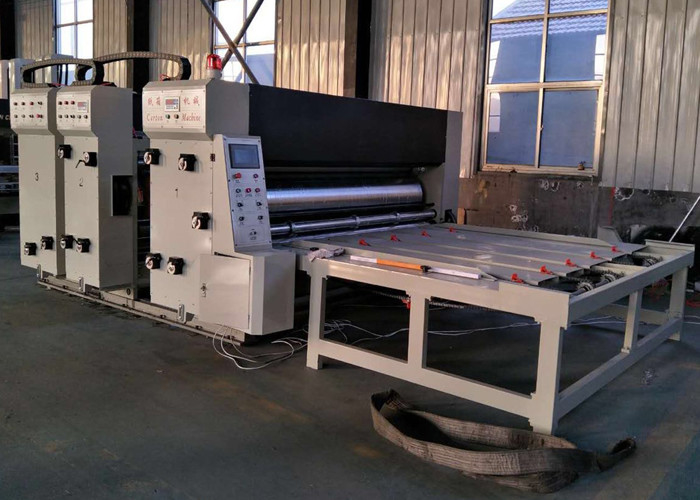

1.Feeding department :
The product adopts the advanced combination of chain-paper feeding style to guarantee a reliable paper feeding mechanism, reducing the likelihood of paper jams and minimizing the possibility of spoiled products, ensuring a stable and uninterrupted production process for users.

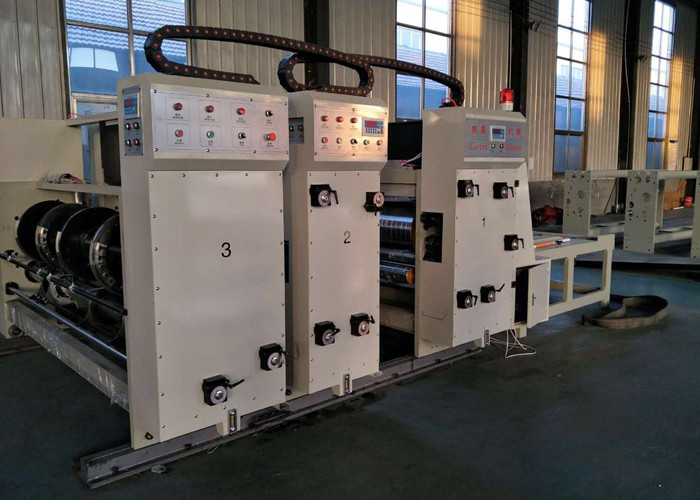

2.Printing department
Rinting roller diameter.400mm. 480MM 530mm
Our digital phase controller uses advanced digital technology to accurately control electrical phase adjustments, ensuring maximum energy efficiency and operational stability. This controller features a convenient 360 degree adjustment range, allowing quick and accurate adjustments. By using the digital number display, users can easily monitor the current phase settings, allowing the system to be optimized quickly and efficiently. This feature significantly reduces the time and effort required for adjustments, making it an ideal solution for industrial and commercial applications.
Auto lifts the ink tray ,the inker turns to prevent ink drying.
Adopt electrical separation ,pneumatic locking
Ink supplied by pneumatic diaphragm pump
Main transmission gear made of 45# steel , adopts helical gear drive and is processed by high frequency quenching.Auto spray lubricating system ensures the machine is accurate and uses life
all the roller must be chrome –plating in order to increase the hardness
the auto count function
Have an alarm system . When the machine starts working, there is an alarm . Make sure the work is safe.

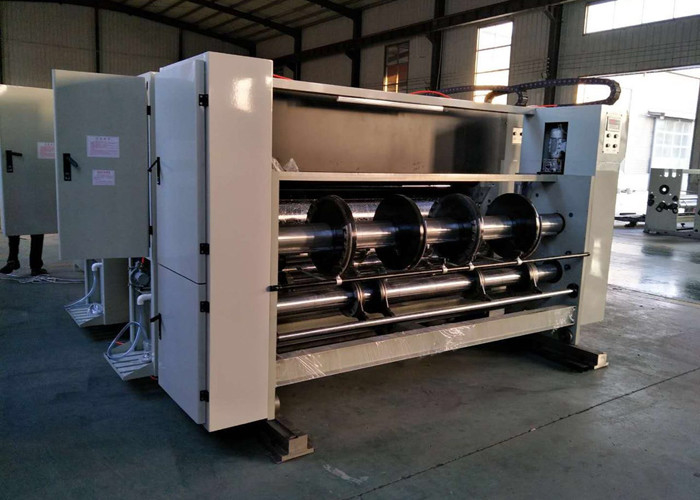

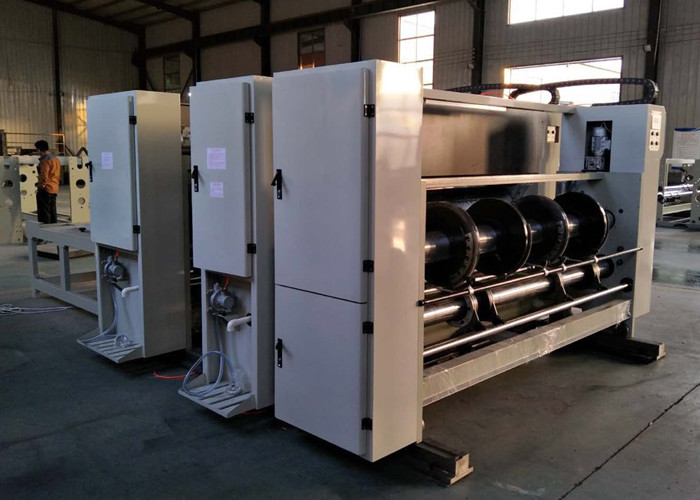

3.Slotter cutting part
Four slotter knives , open the slot ,creasing the line and cut the corner
The knives use the good material ,long use life
Our slot knives can be same time adjust
The phase can be adjust by electrical 360
Feed roller all be chrome plate
| Model | YSF-S 900 | YSF-S 1200 | YSF-S1450 | YSF-S1650 |
| Diameter of roller | 300MM | 400MM | 480mm | 530MM |
| The max speed | 60PCS | 60PCS | 60pcs/min | |
| The max feeding size | 900X(2200-2800) | 1200X(2200-2800) | 1450x(2200-2800)mm | 1650X(2200-2800) |
| Slot Min feeding size | 230X600MM | 330X600MM | 350X600mm | 380X600MM |
| Effective printing size | 900X(2000-2600) | 1200X(2000-2600) | 1450x(2000-2600)(mm | 1650X(2000-2600) |
| The effective thickness | 3.5.7ply (2-12mm) | 3.5.7ply (2-12mm) | 3.5.7ply (2-12mm) | 3.5.7ply (2-12mm) |
| Printing plate thickness | 6±0.1 | 6±0.1 | 6±0.1 | 6±0.1 |
| The max depth of slot | 250 | 314 | 370 | 416 |
4.Our Company
We are a professional supplier of corrugated carton machinery, products include high speed printing press slot cutting machine, convex production line, rotary cutter, carton press and double layer convex production line. With the development, we have built our own factory. It is now being expanded to test equipment and other packaging machinery. Our products use advanced technology and high quality materials to meet the needs of high speed, high precision and high efficiency of cam products. There are sales network and professional service team to provide customer satisfaction solutions.
Our products are sold all over the world, you can rest assured.
