Automatic Box Folder Gluer Machine For Corrugated Carton Box 1600-2200

Automatic Box Folder Gluer Machine For Corrugated Carton Box 1600-2200

KS - QZD full-automatic sticky box folder gluer ,include feeding department, folding department and count accumulation of three parts, PLC display speed, Touch screen adjust the size , simple and convenient, quick and reliable precise control mode, automatic feeding, automatic glue fold, automatic counting, automatic stack output, average sticky box speed 200pcs /min, highest speed 220 meter /min, high efficient energy-saving environmental protection is our supreme pursuit.

FEATURE:

1. automatic finish top fold twists and at the same time, you can finish fluctuation two parts tape stickup, province viz.

2. Applicable carton range, different size carton adjustment is simple and direct.

3. The machine running smooth and reliable packing results firmly beautiful.

4. The equipment is simple and easy to maintenance.

5. Automatically correct the carton straight Angle. 180 calibration, effective corrective cut forks and knives, tail phenomenon.

7. PLC program control, automatically adjust according to the input order parameters.

8. The equipment has secondary indentation and right angle finishing mechanism, its performance is stable and reliable, and it can perfectly realize the control of the gap size after folding. For example, the C-shaped corrugated paper has a height of 3.5 to 4.0 mm, a number of turns of 41±3, a high fluteheight, and a large number of turns, and the folding position of the paper shell is difficult to control, and finally the spacing of the opposite slits is different after the folding is completed. In response to this situation, we added a secondary indentation and a right-angle finishing mechanism to the device to effectively control the size of the gap after folding.

9. The right angle finishing mechanism is different from the ordinary right angle mechanism. The right angle finishing mechanism of our equipment is driven by a separate motor, which ensures the purity of the power and the operation is stable and reliable. Even if the grooved pressing line is not good, the bonding gap can be controlled by our secondary pressing line and right angle finishing mechanism, the size is uniform, and the gap size can be adjusted arbitrarily.

10. The secondary alignment mechanism can completely solve the scissors difference. A secondary alignment mechanism is provided at the position where the stacking is counted. At present, other glue box machines have higher requirements for glue, such as quick-drying glue or white latex to solve the problem of scissors. In fact, this is very difficult to solve, because the speed of the glue box machine is not dry when the glue is not dried to a certain extent, the scissors can not be solved; when the speed is slow, the carton is not folded, the glue is dry, and the carton is not firmly bonded. Therefore, other glue box machines have higher requirements for glue, and the quick-drying standard is difficult to control. Our equipment enters the folding arm and finishing department after being glued, and then enters the secondary finishing. There is no requirement for the glue, which can greatly reduce the cost. After the secondary finishing, the count is discharged, and the scissors difference is completely solved. Thereby greatly improving the pass rate of the product, the defect rate can be controlled within 5 thousandths.

MACHINE STRUCTURE

一． the control instrument department:

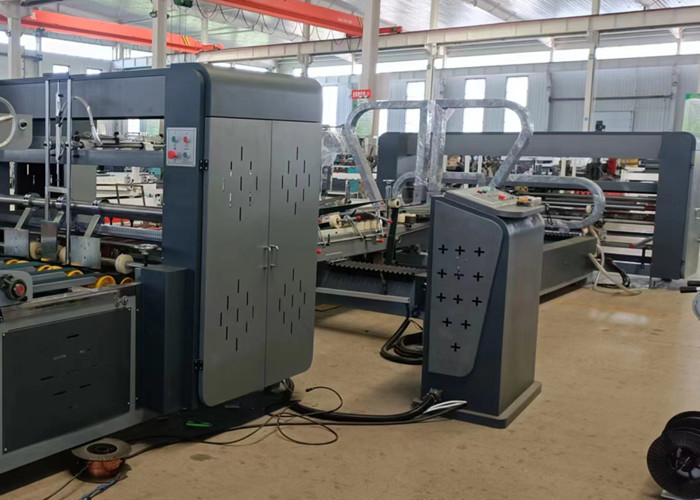

1. Simple touch screen operation input, the whole machine adopts PLC computer programming controller, digital operation, touch screen input data, can realize data change without stopping, production speed, etc., automatic machine automatic feeding, automatic folding, automatic counting, automatic stacking output The speed of the box is 220 m/min and the maximum speed is 200 sheets/min.

2. The whole machine is equipped with a carton bond to find the abnormal automatic stop

function to avoid the waste in the carton.

(PAPER SUPPLY PART )

1.Select the height adjustment structure of the cardboard made of high-quality steel to quickly adjust the height of the box and the length of the cardboard.

2. The suction belt of the paper feeding part is made of high-tech materials, and the tension layer seamlessly butts the endless belt to ensure that the machine has no worries in use.

3. The suction motor and main rotating motor of the paper feeding department are all made of high quality and high stability motor.

4. Select high-grade electromagnetic clutch and electromagnetic brake system, so that the paper feeding part can be operated single or continuously, effectively control the waste of the paperboard in the specification adjustment and the accuracy of the output paperboard.

5. Suction paper feed, paper feed is not skewed;

6. The back gauge paper height is adjustable and can adapt to curved cardboard.

(GLUE AND FOLDER PART )

1. The motor is selected from domestic famous brands, with stable performance, convenient speed regulation and no noise pollution.

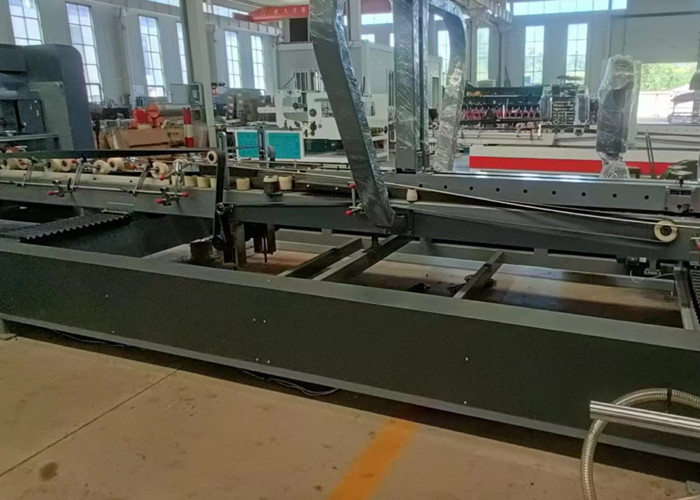

2. The folding part adopts the seamless butt-shaped endless conveyor belt made of imported high friction and super wear-resistant special materials to complete the automatic folding of the cardboard without any mistakes.

3. The rubber coating part is made of high-quality stainless steel rubberizing wheel, which is evenly coated and energy-efficient.

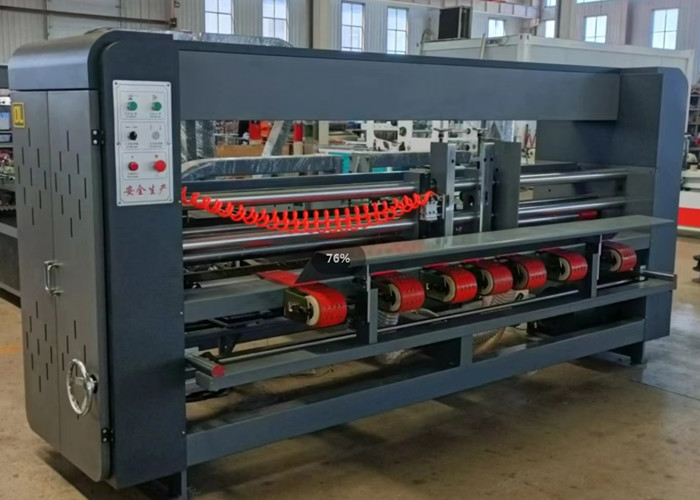

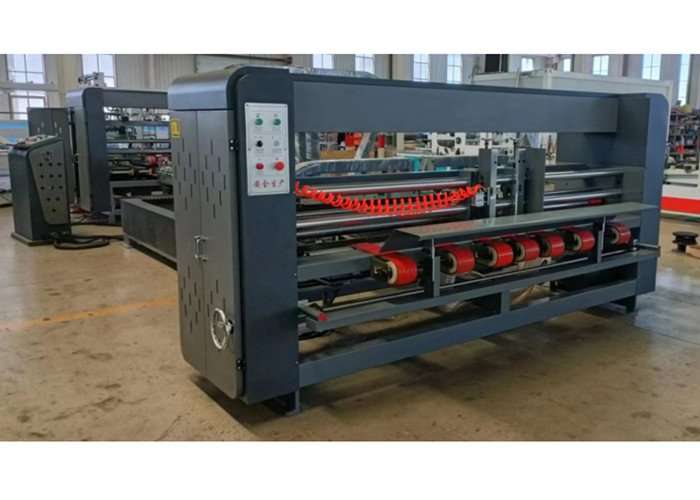

4. The folding part is equipped with a double-track indentation correction device to accurately and effectively correct the deviation of the cardboard pit line, so that the entire carton can be folded with the most precision.

5. The rubberized box is elastically floated and attached to the rubberizing wheel without leaking glue;

6. Use imported high quality rubber pump for durability;

7. Origami guides are easy to adjust and reduce the adjustment time when changing orders;

8. The lower folding arm has good rigidity so that the cardboard does not vibrate when it passes;

9. Right angle finishing function can improve the accuracy of the glue box (QZ920B); 10.Indentation function, strengthen the indentation (QZ920B)

CORRECTION STACKER OUTPUT PART)

The automatic calibration and stacking code output unit is equipped with automatic counting, stacking, and stacking code output. The output of the finished box can be set according to customer requirements, and the correction of the irregularity of the carton is automatically forcibly corrected.

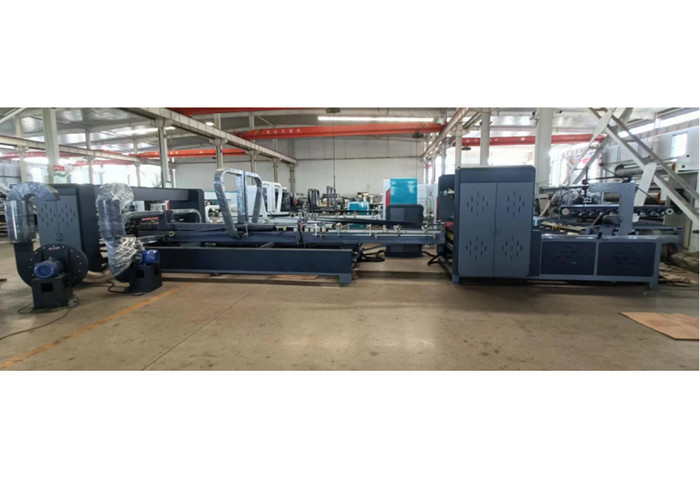

THE WHOLE MACHINE

PLC program control, automatically adjusted according to the input order parameters Up-folding, easy to adjust, change order

Stable and durable with high quality imported belt

OPTION

1. The whole machine selects 380V AC, the power is 7.5KW, energy saving and high efficiency.

2. PLC computer components, frequency conversion components, electrical components are selected from high quality imported components.

3. The belt is made of imported circular seamless butt belt.

4. Bearings use well-known brand bearings.

5. The screw screw, screw and nut are all made of 45# high-quality steel and quenched and processed.

PRODUCT MODEL PARAMETERS:

◆ Feeding mode: automatic continuous feeding
