Chain Feed Style Corrugated Box Printing Machine For Vegetable Box
Product Details
Chain Feed Corrugated Box Printing Machine
,Vegetable Corrugated Box Printing Machine
Chain Feed Style Corrugated Box Printing Machine 2 Colors For Pizza Box Vegetable Box
1,Corrugated Box Printing Machine Description:
The following are detailed technical specifications for this product.
The department's comprehensive procedures manual provides detailed guidance on all aspects of their operations, including animal care, feeding protocols, diet formulation, and equipment maintenance.
Furthermore, this innovative mechanism synergistically combines the chain-paper feeding style to provide an optimal, consistent paper feeding process, thereby significantly reducing the spoilage rate of the final product and ensuring the highest product quality.
2,Corrugated Box Printing Machine Specifications:
| Model | YSF-S 900 | YSF-S 1200 | YSF-S1450 | YSF-S1650 |
| Diameter of roller | 300MM | 400MM | 480mm | 530MM |
| The max speed | 60PCS | 60PCS | 60pcs/min | |
| The max feeding size | 900X(2200-2800) | 1200X(2200-2800) | 1450x(2200-2800)mm | 1650X(2200-2800) |
| Slot Min feeding size | 230X600MM | 330X600MM | 350X600mm | 380X600MM |
| Effective printing size | 900X(2000-2600) | 1200X(2000-2600) | 1450x(2000-2600)(mm | 1650X(2000-2600) |
| The effective thickness | 3.5.7ply (2-12mm) | 3.5.7ply (2-12mm) | 3.5.7ply (2-12mm) | 3.5.7ply (2-12mm) |
| Printing plate thickness | 6±0.1 | 6±0.1 | 6±0.1 | 6±0.1 |
| The max depth of slot | 250 | 314 | 370 | 416 |
3,Corrugated Box Printing Machine Feature Advantage:
Printing department
The Printing Roller Diameter .400mm.
Adopt Digit Number Electrical Phase Controller ,Can 360degree Adjust ,Save The Adjust Time ,Increase Adjust Accurate
Auto Rise The Ink Plate ,The Inker Turning To Prevent Ink Dried.
Adopt Electrically Separation ,Pneumatic Locking
Ink Supplied By Pneumatic Diaphragm Pump
Main Transmission Gear Made By 45# Steel ,It Adopts Helical Gear Driving And Processed By High Frequency Quenching.Auto Sprinkle Lubricating System Ensures The Machine Precise And Use Life
All The Roller Must Be Chrome –Plating In Order To Increase The Hardness
The Auto Count Function
Have Alarm System ,When Machine Start Work There Have Alarm ,Guarantee The Work Safe
Die cutting part with slotter knife attachment
High quality Rubber cushion
Double-Worm Abrasive Belt Cushion Correction Facility
Cushion Axial Floating Automatically To Improve The Utilization Rate Of Cushion. The Range Of Floating Is 0-20mm (From Middle To Left Or Right )
Speed Difference Self-Compensating Function
Die Cutting Phase Is Adjusted By Electric
Die Cutting Part With Slotter Knife Attachment
4,Our Company:
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery

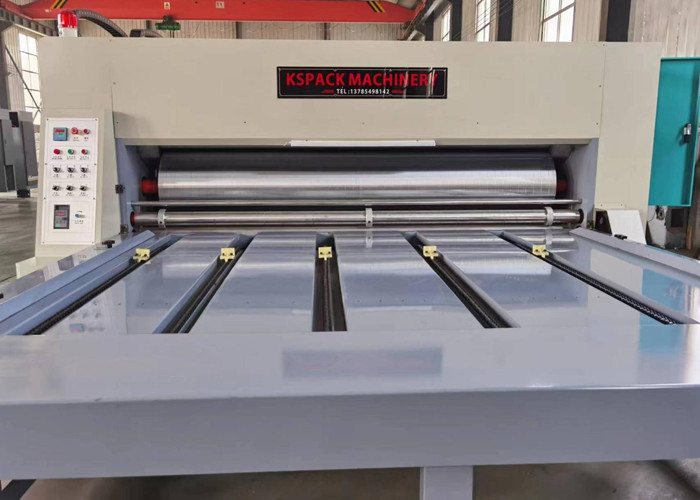

5,Picture:
-
