Durable Corrugated Board Production Line With Quality Control Monitoring 120m/min
Product Details
Durable Corrugated Board Production Line
,120m/min Corrugated Board Production Line
3 Ply 1800mm Steam Type Corrugated Board Production Line 80m / min
Durable Corrugated Board Production Line With Quality Control Monitoring
1.Corrugated Board Production Line Description:

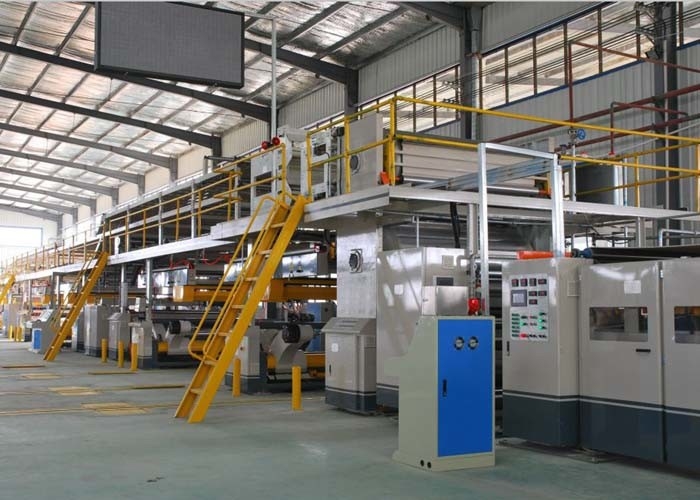

A corrugated board production line is a complex and highly automated process for creating corrugated boards. It features advanced features and is designed to adapt to a variety of corrugated board specifications and production needs.
The production line starts with raw materials such as fluting, liner paper, and adhesive. These materials are then transformed into finished products through various stages of production. Precise cutting machines are used to cut materials into specific sizes. These cut pieces are stacked in a specific order to create the flute or ribbed surface of the corrugated board. The stack is then dried and heated to create a bond between the liner paper and the fluting.
State-of-the-art technology is used to monitor board quality throughout the manufacturing process. A team of quality control inspectors ensures that the board meets the required standards.
The finished corrugated board is then packed and shipped to customers. Depending on the specific requirements, the line can produce various types of corrugated board, such as single wall, double wall, and triple wall.
In conclusion, the corrugated board production line is a complex and highly efficient process that transforms raw materials into high-quality, durable corrugated boards. It meets the diverse needs of the corrugated board industry, ensuring consistency and reliability in product quality.
2.Corrugated Board Production Line Specifications:
| Iterm | Device name | set | QTY | Remark |

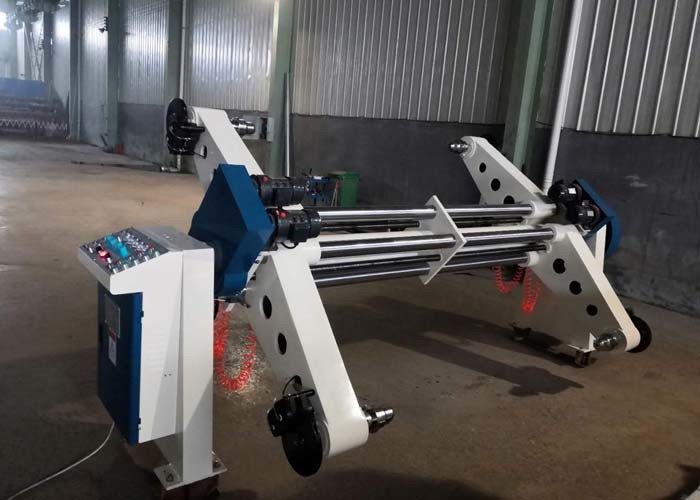

| ZJ | Electric shaftless paper stand | set | 3 | Expanding paper clamping head, manual butterfly disc brake, mechanical drive lifting, left and right translation, centering. |
| Paper loading trolley | set | 6 | The length of the guide rail is 5500mm, and the trolley is welded with a 10mm middle plate. | |
| RG04 | Tissue paper preheater | set | 1 | Roller￠400mm hanging cylinder. Fixed angle shaft. The wrapping angle can adjust the paper heating area within the range. |
| RG04 | Core paper preheater | set | 1 | Roller￠400mm hanging cylinder. Fixed angle shaft. The wrapping angle can adjust the paper heating area within the range. |

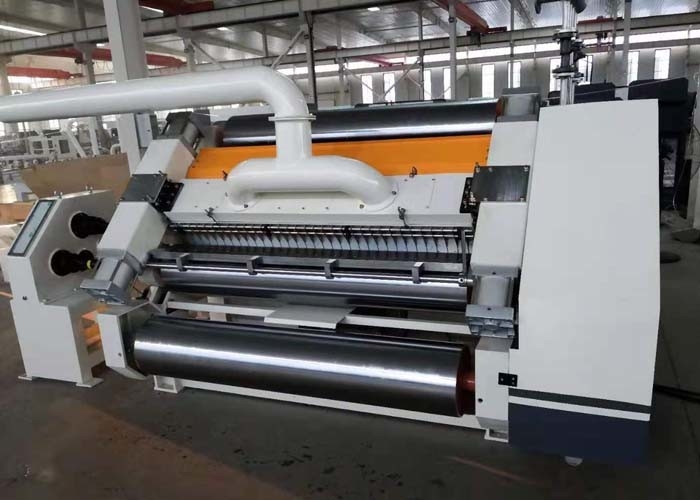

| SF-280S | Single sided corrugating machine | set | 1 | The main corrugating roller is ￠280mm, made of 48CrMo alloy steel. It adopts independent gearbox, universal joint transmission structure and steam heating. |
| RG-2-400 | Double preheater | set | 1 | Roller￠400mm hanging cylinder. Fixed angle shaft. The wrapping angle can adjust the paper heating area within the range. |
| GM | Glue coating machine | set | 1 | The diameter of the rubber roller is 215mm. Each layer is driven by an independent variable frequency motor, and the glue coating gap can be adjusted electrically. |
| ZDF | Transport across the bridge | set | 1 | It is driven by an independent variable frequency motor and has a paper-pulling adsorption tensioning device. |

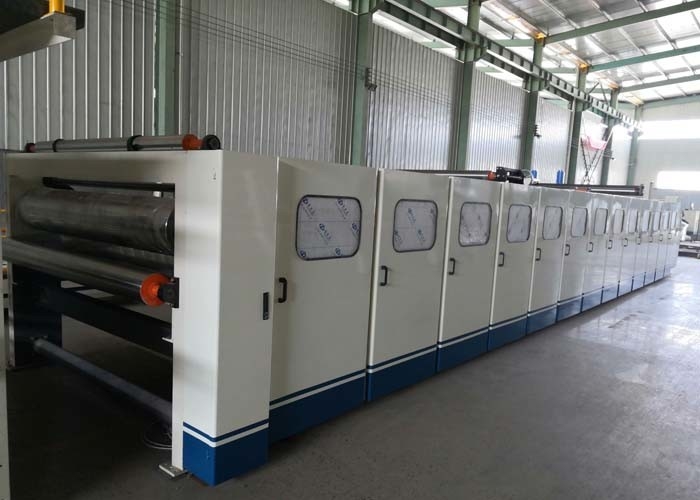

| SM | Double sided machine | set | 1 | The frame is made of 360 mm national standard channel steel, the heating plate is 595mm*9 heating plates, the pneumatic lifting and lowering pressure rollers adopt intensive pressure rollers. Inverter motor. |
| ZQS | Thin knife slitting machine | set | 1 | Electric knife adjustment, electric traverse, five-knife and eight-wire type, the blade is made of tungsten alloy steel. |
| NC-100 | Computer straight knife cross-cutting machine | set | 1 | Full AC servo control, energy storage brake, straight knife structure, oil-immersed gear transmission, 10.4-inch touch screen display. |
| DM | Right angle stacker | set | 1 | A section of paper feeding platform is used. 90-degree electric traverse output, automatically stacking and collecting cardboard |
| ZJZ | Glue making station system | set | 1 | Pipes must be prepared by the customer. The glue making device consists of a carrier tank, a main tank, a storage tank, a glue feeding pump, and a glue returning pump. |
| QU | Air supply system | set | 1 | Customers must prepare their own gas source. |
3.Corrugated Board Production Line Feature Advantage:
Model: WJ80-1800-II three-layer corrugated cardboard production line:
Maximum production width of corrugated board: 1800mm
Design speed: 80m/min
Economic speed: 50-60m/min
Note: The paper used for production line speed test should meet the following requirements: (the surface temperature of the equipment should not be lower than 172°C)
The grade of base paper shall not be lower than grade B. The moisture content of base paper is approximately: 11%±2%.
Facial paper: 120-250g/m2 Core paper: 120--250g/m2
Corrugated paper: 120-200g/m2
Corrugated type combination: A, C, B, E (or as chosen by the customer)
Power supply: 380V 50Hz three-phase four-wire system
Total installed power of the equipment: about 120KW Actual power consumption: about 100KW (full speed)
Equipment area: about 40m×10m×5m (the specific length is subject to the foundation drawing)
Paper output direction of the equipment: The drive is left or right according to the user's factory.
Equipment applicability, available with A, B, C grade domestic base paper or imported base paper
